Automatische Heizungs - Füllarmatur Caleffi DN15 Füllarmatur für Heizungen - GEMA Shop

Automatic heating filling fitting Caleffi DN15 filling fitting for heaters

by Caleffi
156,59 € - 156,59 €
156,59 €
156,59 € - 156,59 €
156,59 €
Availability:
Low stock

Die Produktbeschreibung wird aktuell ergänzt. Bei Fragen zu Einsatzbereich, Auslegung oder Kompatibilität hilft dir unser Fachteam gerne weiter.

Fachhandel für Heiztechnik

  • Technische Beratung für Heiztechnik & Systemkomponenten
  • Sichere Zahlung
  • Paket- oder Speditionsversand je nach Produktart

GPSR Information

Name: CALEFFI S.p.a.

Adresse: S.R. 229, n. 25, 28010 Fontaneto d'Agogna (NO) Italy

E-Mail: info@caleffi.com

Webseite: https://www.caleffi.com/de-de

Europäischer Hersteller: Ja

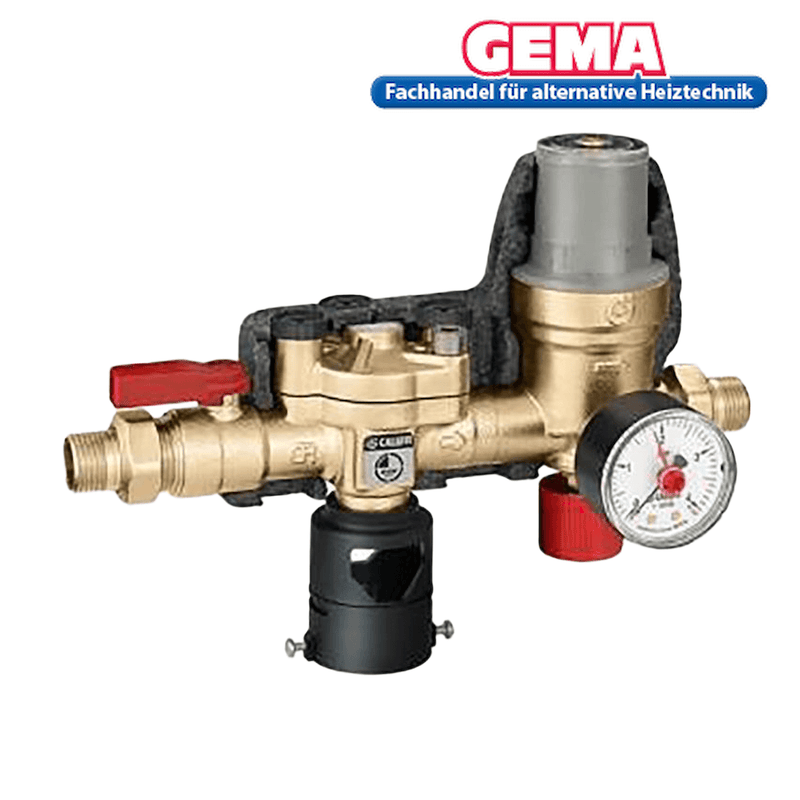

Automatic heating filling valve, filling combination DN15 ½" Caleffi

The Caleffi automatic heating system filling valve is specifically designed for the reliable operation of closed-loop heating systems. This compact, complete system comprises a shut-off valve with an easily accessible, inspectable strainer, a highly effective BA-type system separator with a controllable, pressure-reducing zone, and a precisely adjustable filling valve. These components ensure maximum operational reliability and allow for user-friendly installation, even in confined spaces. To minimize heat loss and prevent condensation, the filling valve is supplied complete with a pre-formed insulating shell.

The automatic filling valve performs the essential task of continuously maintaining the operating pressure of the heating system at the desired setpoint and automatically refilling any missing water. The preset pressure allows for precise configuration of the desired setpoint before the system is filled. This simplifies maintenance and significantly increases operational reliability. Installation is intended exclusively for the filling line of closed heating systems.

A key element is the system separator, which guarantees compliance with the EN 1717 standard and prevents potentially contaminated water from the heating circuit from flowing back into the drinking water network. This ensures that the filling valve guarantees hygienic drinking water safety and reliably protects the entire water supply system from contamination.

Filling valve:

  • Adjustment range: 0.2–4 bar
  • Factory setting: 1.5 bar
  • Display precision: ±0.15 bar
  • Pressure range of the manometer: 0–4 bar
  • Mesh size of inner dirt trap Ø: 0.28 mm

Services:

  • Working media: Drinking water
  • Maximum operating pressure: 10 bar
  • Maximum operating temperature: 65°C
  • Noise group: I

Further detailed technical information and instructions for the installation and operation of the Caleffi automatic heating filling valve can be found in the User manual.

ProdukttypSafety & Fittings

Für dieses Produkt sind derzeit keine zusätzlichen Dokumente hinterlegt. Falls du ein Datenblatt oder eine Anleitung benötigst, frage diese bitte bei uns an.

Zu diesem Produkt wurden noch keine produktspezifischen Fragen hinterlegt. Unser Fachteam unterstützt dich gerne bei technischen Fragen zur Auswahl, Montage oder Kompatibilität.
