Connection kit for buffer storage tanks for heating/solar systems – Universal mounting kit with connection and insulation
Product description
The buffer storage tank connection kit for heating/solar systems is a versatile mounting set for the cost-effective connection of a buffer storage tank to heating or solar systems. It enables demand-based connection of the tank with innovative connection insulation that ensures the generated energy stays where it is needed – inside the tank.
The integrated insulating plug for all 1½" connections ensures that unused connections are optimally insulated. This leads to a significant reduction in heat loss and thus contributes to more efficient use of the stored thermal energy.
Technical details and application area
This product is universally suitable for steel storage tanks with up to 8 sockets featuring 1½" female threaded charging connections. The connection kit is specifically designed for buffer storage tanks and offers a tailored solution to significantly reduce energy losses due to unused connections.
Thanks to the hydraulic example, the set can be installed quickly and easily. The universal insulation ensures optimal insulation at all unused 1½" connections.
Advantages and efficiency
A key advantage of the connection kit is the significant reduction in heat loss. While heat loss without insulating plugs can reach approximately 70°C, this is reduced to around 18°C with the kit. This contributes to improved efficiency and energy savings.
The connection package offers a simple way to optimize the performance of existing storage systems. It is universally applicable to different systems and thus represents a flexible solution for modern heating and solar systems.
Easy assembly and use
The assembly kit impresses with its user-friendly design, making it suitable even for less experienced installers. The included hydraulic diagram supports the installation process and significantly reduces assembly time.
Thanks to the clear instructions and universal fit for all 1½" connections, the set ensures a smooth installation process. This guarantees that the energy stays where it's needed and ensures reliable insulation in the long term.

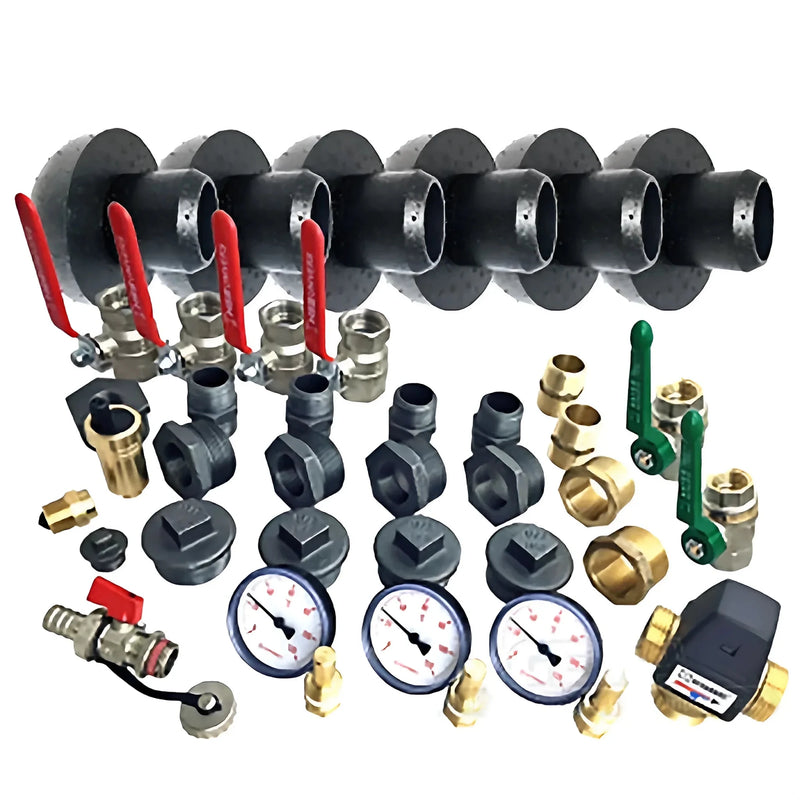

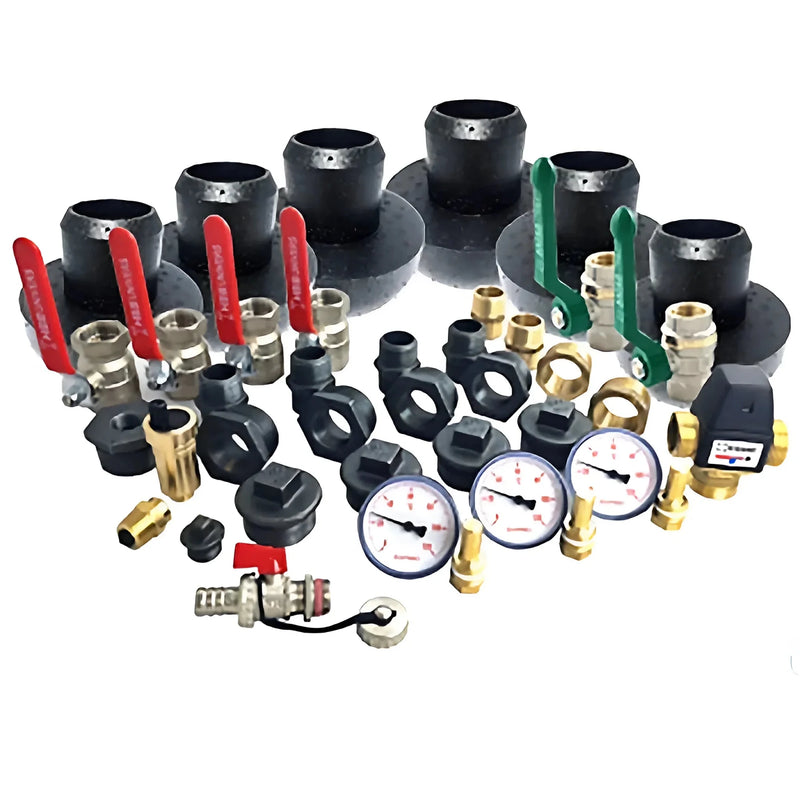

Scope of delivery
- 1x EXSEL12 - Quick vent with shut-off valve ½"
- 1x KFEH12 - Boiler filling and draining valve ½" brass
- 4x KGH1 - Universal ball valve 1" with red lever
- 2x EXBIZ - Bimetallic pointer thermometer with immersion sleeve ½" 0-120° Ø63mm
- 5x DN2801S - Double nipple black 1"
- 4x RST2411121S - Reducer black 1½"x1"
- 1x RST24111412S - Reducer black 1¼"x½"
- 6x ST290112S - Black plugs 1½"
- 2x ST29012S - Black plugs ½"
- 1x T1301121S - Reduced T-piece black 1"x½"x1"
- 6x PSIS - Buffer connection insulation for all 1½" connections of your buffer tank
- 1x Assembly/hydraulic diagram
