Defro Firewood connection package – complete solution for your heating connection
Product description
The Defro Firewood connection kit offers a comprehensive solution for optimizing your heating system. It combines innovative technology and high-quality components to ensure safe and reliable operation. With this kit, you meet the highest quality standards for the control and connection of your heating system.
Precise temperature control and perfectly matched components ensure smooth heat exchange and support efficient energy use. This creates optimal conditions for a trouble-free heating system.
Extensive scope of delivery
The package includes a variety of high-quality components. Among other things, the scope of delivery includes two return temperature boosters – one with a 70°C or 72°C output, including a high-efficiency pump, thermometer, and insulation in 1¼" and a 60°C version including a pump. The set is complemented by a 1" boiler safety group (KSG1) and a 1/2" boiler fill and drain valve (KFEH12).
Other components in the set include a black 1" socket (SM1), a black 1" x 1/2" malleable cast iron reducer (RST241112S), and two black 1" malleable cast iron tees (T1301S). Two 1 1/2" x 1" reducing double nipples (RDN2451121S) and various black double nipples (DN2801S, DN280114S, DN12RG) complete the comprehensive set. Additionally, dirt traps (SF114, SF12) and a 1/2" Euro check valve (RVTL12EU) are included.
Technical characteristics and application
The insulated components and high-quality manufacturing guarantee precise control of the heating circuit. Each component is designed for durability and efficient operation, ensuring optimal interaction. The coordinated technology enables reliable operation even under demanding conditions.
Thanks to its clear functionality and simple installation, the connection kit is suitable for both new buildings and the modernization of existing heating systems. By using modern heating technology, you contribute to energy-efficient and sustainable operation.
Easy installation and maintenance
The well-thought-out design and the clear arrangement of components significantly simplify installation. With the accompanying assembly instructions, setup is quick and considerably easier.
Even during maintenance, the components impress with their ease of service. The modular design allows for easy identification and replacement of individual components, contributing to lower operating costs in the long run.

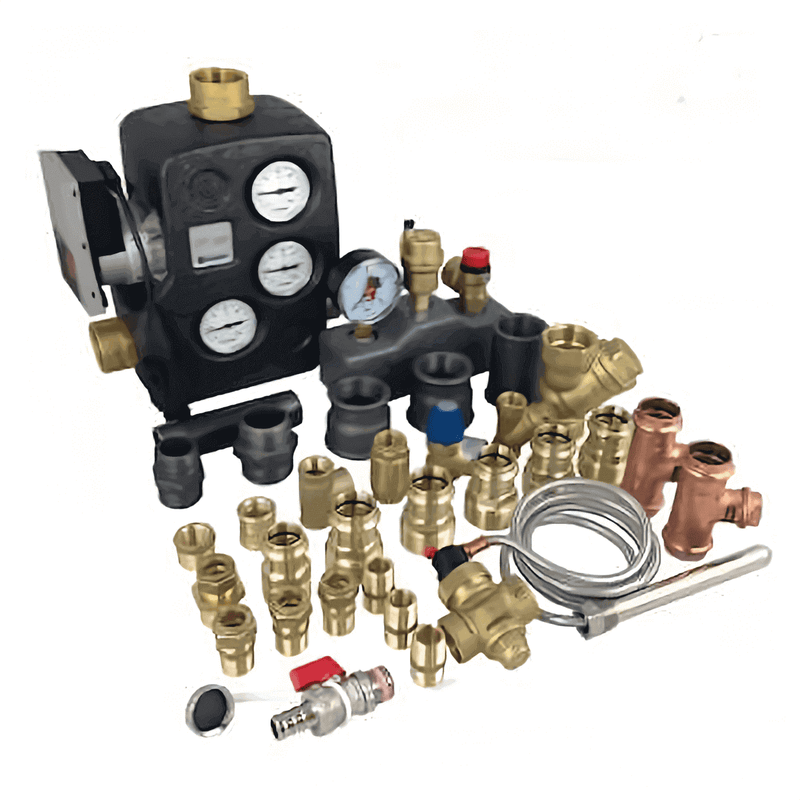

Scope of delivery
- 1x return temperature boost 70°C or 72°C incl. high-efficiency pump, thermometer and insulation, 1¼"
- 1x KSG1 - Boiler safety group 1"
- 1x return temperature boost 60°C incl. high-efficiency pump
- 1 x KFEH12 - Boiler filling and draining valve 1/2"
- 1x SM1 - black sleeve 1"
- 1x RST241112S - Malleable cast iron reducer, black 1" x 1/2"
- 2 x T1301S - Malleable cast iron tee 1" black
- 2x RDN2451121S - reducing double nipple 1 1/2" x 1" black
- 2 x DN2801S - Malleable cast iron double nipples 1" black
- 1x DN280114S - malleable iron double nipple 11/4" black
- 1x SF114 - Mud flap 1 1/4"
- 1x SF12 - Mud flap 1/2"
- 1x RVTL12EU - Euro check valve 1/2"
- 2x DN12RG - gunmetal double nipple 1/2"
