ATTACK Electric Excellent 24 electric boiler 22.5 kW, IP40, 8 l MAG

by Attack
1.203,54 € - 1.203,54 €
1.203,54 €
1.203,54 € - 1.203,54 €
1.203,54 €
Availability:
in stock, ready to be shipped

Die Produktbeschreibung wird aktuell ergänzt. Bei Fragen zu Einsatzbereich, Auslegung oder Kompatibilität hilft dir unser Fachteam gerne weiter.

Fachhandel für Heiztechnik

  • Technische Beratung für Heiztechnik & Systemkomponenten
  • Sichere Zahlung
  • Paket- oder Speditionsversand je nach Produktart

GPSR Information

Name: ATTACK, s.r.o.

Adresse: Dielenská Kružná 5020, 038 61 Vrútky, Sk

E-Mail: kotle@attack.sk

Webseite: https://attack.sk/

Europäischer Hersteller: Ja

ATTACK Electric Excellent 24 kW (nominal heat output 22.5 kW)

Product description:

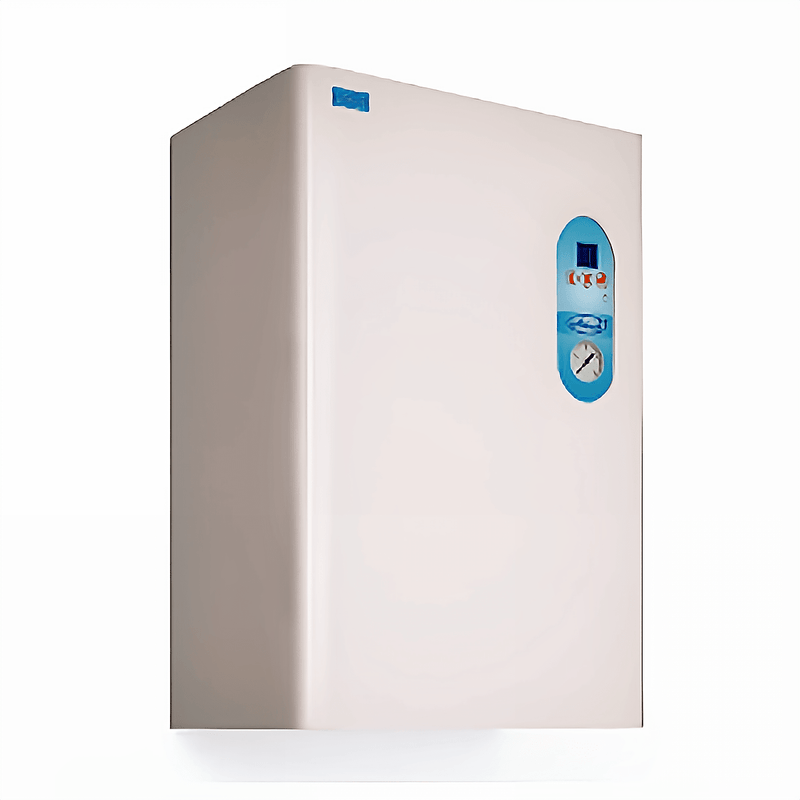

The ATTACK Electric Excellent 24 is a wall-mounted electric boiler for forced-circulation heating systems with higher heating loads. Its PID control precisely switches between heating stages and maintains a constant flow temperature. Remote control via GSM/smartphone is available as an option. Domestic hot water can be generated via an external storage tank and a 3-way valve (TUV operation).

Highlights:

  • 99% efficiency, quiet operation, display & Diagnostic memory

  • Protective functions including frost/overheating/pressure loss protection

  • Compact design despite high performance

Areas of application


Suitable for:

  • Single-family and multi-family homes as well as commercial properties up to 22.5 kW heating load,
  • radiators or underfloor heating
  • Modernization without exhaust system.

Not suitable for:

  • Operation without suitable electrical design (three-phase current/protection),
  • Hot water without storage tank/TÜV module.

Technical specifications (including explanation)

  • Perfomance: 22.5 kW (heat output; model designation "24")

  • Tension: 3×230/400 V + N + PE

  • Rated current/fuse: 3×36 A; Main switch: 3×40 A

  • Protection class: IP40

  • Energy efficiency class (heating): D

  • Operating pressure: 0.4–3 bar; Maximum temperature: 80 °C

  • Water content: 10.6 l; Expansion vessel: 8 l

  • Connections flow/return: G 3/4" AG

  • Dimensions (H×W×D): 656×450×345 mm; Weight: 39.5 kg

Scope of delivery

Boiler (assembled), operating instructions, warranty card, socket, vent valve, jumper/connector for 1×230 V. Not included: mounting kit, TÜV module, GSM module, connection cables.

Conclusion

The ideal electrical solution for higher heating loads: compact, precisely controlled and with clear safety and installation parameters for professional applications.
