Perfecta CORE2 25-4-180 heating pump – High efficiency & Reliable
Product description
The Perfecta CORE2 25-4-180 is a compact, highly efficient circulation pump For heating systems in single-family and two-family homes. With modern ECM technology, it automatically adjusts its output to the actual demand and significantly reduces electricity consumption compared to old, unregulated pumps.
Performance features

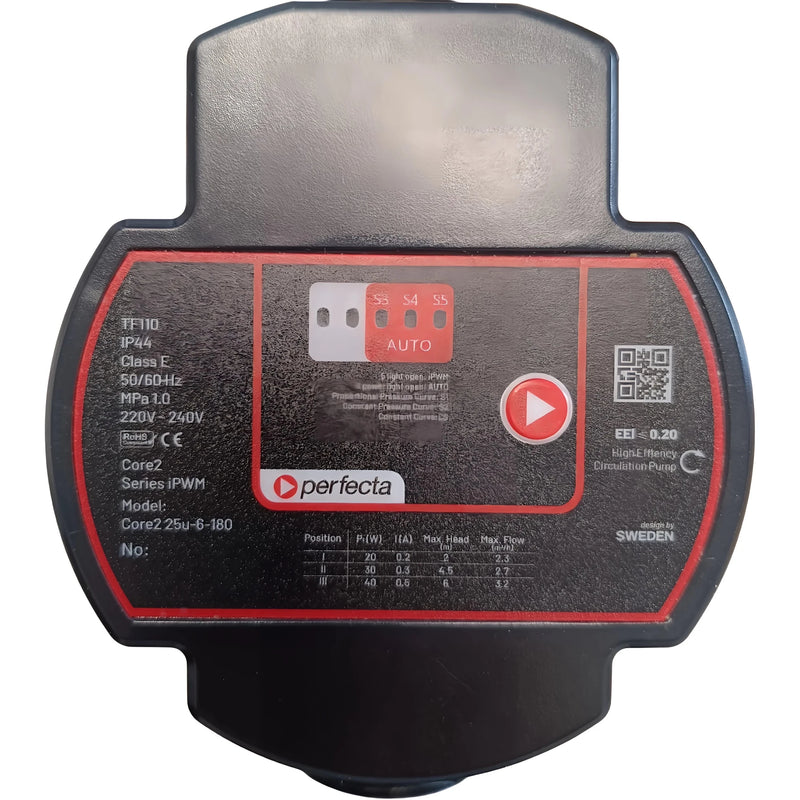

The pump offers a maximum delivery head of 4.0 m at a Installation length of 180 mm and has a G 1 1/ connection thread.2" for 1" Pipelines were installed. A clear LED display shows the current power consumption in watts, making it easy to monitor and classify energy consumption.
Control modes
The CORE2 features three control modes: proportional pressure, constant pressure, and fixed speed settings. This allows the pump to be flexibly adapted to various systems – from classic radiator systems to sensitive underfloor heating.
Energy efficiency & Savings potential
Thanks to ECM technology, the pump operates significantly more efficiently than older, unregulated models. In practice, this can lead to a reduction in power consumption of up to 80%, which directly translates into lower operating costs and reduced energy consumption.
Technical information
Type designation: CORE2 25-4-180. Installation length: 180 mm. Connection thread: G 1 1/2" (for 1" Pipeline). Delivery head: max. 4.0 m. Protection class: IP44.
Assembly & Connection
The compact design with 180 mm installation length Enables straightforward retrofitting in existing systems. Electrical connection is quick and easy using the included connector; the screw connection is designed for 1" IG or 1 1/2" Designed with a union nut.
Scope of delivery

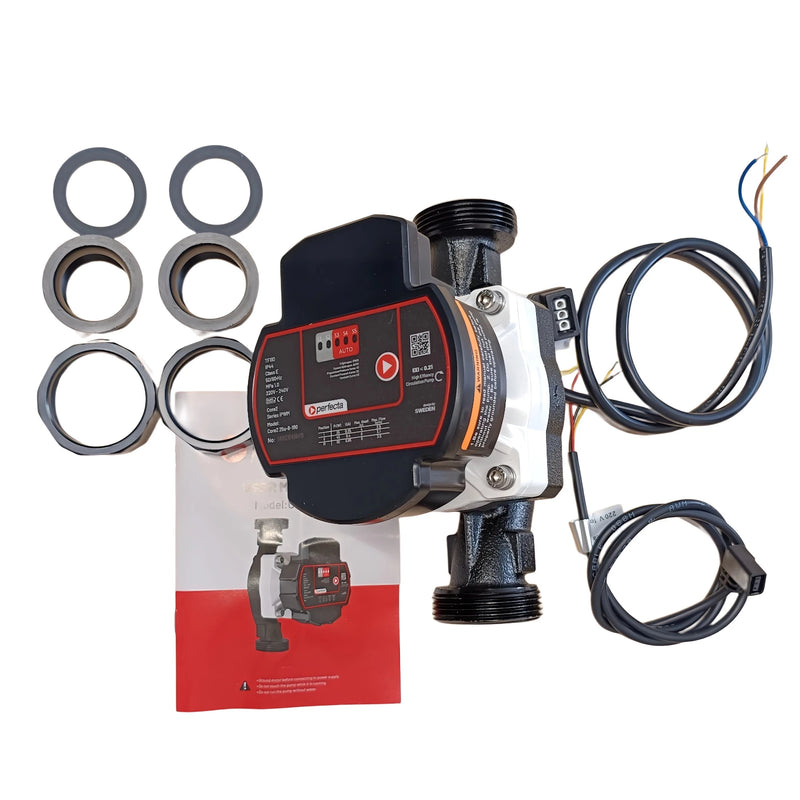

The pump is supplied including the screw fitting (1" IG and 1 1/2" Union nut), seals, connector plug and operating instructions – everything needed for quick commissioning is included.
Areas of application
The Perfecta CORE2 is ideally suited for single-family and two-family homes, as well as for systems with radiators or underfloor heating. Thanks to its variable control modes, it is suitable for both new construction and modernization projects.
maintenance & Security
The pump is designed for low maintenance and has an IP44 protection rating for safe operation in typical heating environments. Regular visual inspections and adherence to the operating instructions ensure a long and reliable service life.
Conclusion
The Perfecta CORE2 25-4-180 combines compact design, flexible control and high energy efficiency – a sensible investment for modernizing your heating system, sustainably reducing operating costs and electricity consumption.
Features
- EEI≤0.20
- Permanent magnet plastic injection molding motor, intelligent frequency control
- Compact size, easy to install
- Proportional printing mode
- Constant print mode
- constant speed mode
- Adjust AUTO mode
- External PWM control optional
- Visualized operation
- Low noise, low temperature
Technical data
- Installation length: 180 mm
- Connection thread: 1 1/2"
- Delivery head: 4 meters
- Protection class: IP 44
Scope of delivery
- Pump with screw connection 1" IG and 1 1/2" Union nut seals
- connector
- Assembly & User manual
Download
