Heating pump circulation pump 25-8-180 – High efficiency & Reliable
Product description

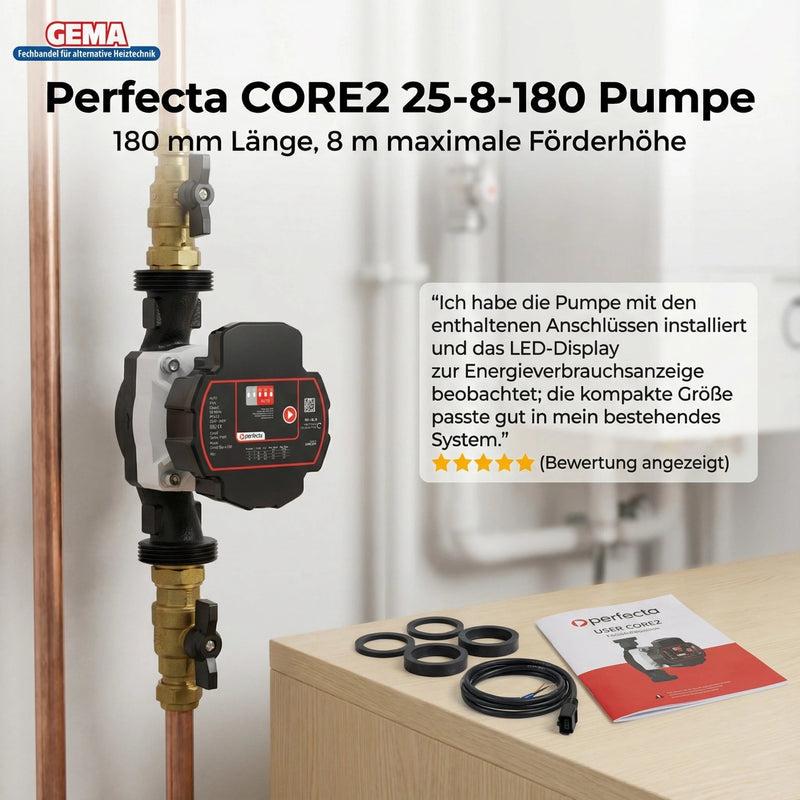

The Perfecta CORE2 25-8-180 is a compact, highly efficient circulation pump for heating systems in single-family and two-family homes. With modern ECM technology, it automatically adjusts its output to the actual demand and significantly reduces electricity consumption compared to older, unregulated pumps.
Performance features
The pump offers a maximum delivery head of 8.0 m with a length of 180 mm and is equipped with a G 1 1/ connection thread.2" for 1" Pipelines were installed. A clear LED display shows the current power consumption in watts, making it easy to monitor and classify energy consumption.
Control modes
The heating pump It features three control modes: proportional pressure, constant pressure, and fixed speed levels. This allows the circulation pump to be controlled. Flexible adaptation to different systems – from classic radiator systems to sensitive underfloor heating systems.
Energy efficiency & Savings potential
Thanks to ECM technology, the heating pump operates significantly more efficiently than older, unregulated models. In practice, this can lead to a Energy saving of up to 80% This results in lower operating costs and reduced energy consumption.
Technical information

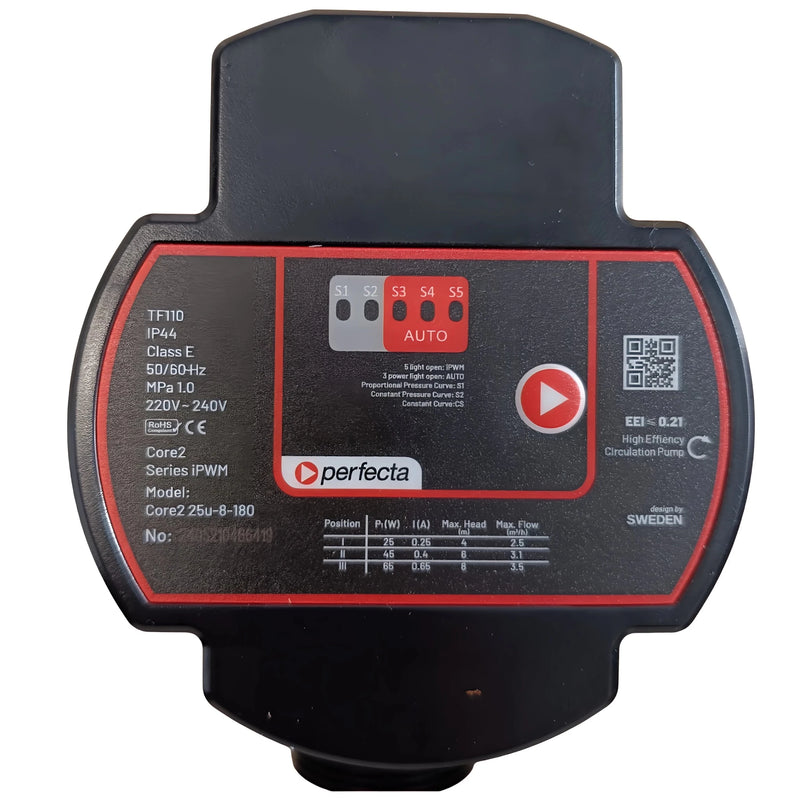

Type designation: CORE2 25-8-180. Installation length: 180 mm. Connection thread: G 1 1/2" (for 1" Pipeline). Delivery head: max. 8.0 m. Protection class: IP44.
Assembly & Connection
The compact design of the heating pump With a length of 180 mm, it allows for straightforward retrofitting in existing systems. Electrical connection is quick and easy using the included connector; the screw connection is designed for 1" IG or 1 1/2" Designed with a union nut.
Scope of delivery
The heating pump will be delivered including screw connection (1" IG and 1 1/2" Union nut), seals, connector plug and operating instructions – everything needed for quick commissioning is included.
Areas of application
The Perfecta CORE2 is ideally suited for single-family and two-family homes, as well as for systems with radiators or underfloor heating. Thanks to its variable control modes, it is suitable for both new construction and modernization projects.
maintenance & Security
The pump is designed for low maintenance and has an IP44 protection rating for safe operation in typical heating environments. Regular visual inspections and adherence to the operating instructions ensure a long and reliable service life.
Conclusion
The Perfecta CORE2 25-8-180 combines compact design, flexible control and high energy efficiency – a worthwhile investment for modernizing your heating system, sustainably reducing operating costs and electricity consumption.
Features
- EEI≤0.20
- Permanent magnet plastic injection molding motor, intelligent frequency control
- Compact size, easy to install
- Proportional printing mode
- Constant print mode
- constant speed mode
- Adjust AUTO mode
- External PWM control optional
- Visualized operation
- Low noise, low temperature
Technical data
- Installation length: 180 mm
- Connection thread: 1 1/2"
- Delivery head: 8 meters
- Protection class: IP 44
Scope of delivery
- Pump with screw connection 1" IG and 1 1/2" Union nut seals
- connector
- Assembly & User manual
