MDF surface heating system base plate – Efficient and ultra-flat underfloor heating

Product overview

The MDF surface heating system base panel is a modern solution for your underfloor heating. With a low profile of only 18 mm, it is ideal for both renovations and new builds. This system can be used for underfloor, wall, or ceiling heating and is particularly impressive due to its efficiency and ease of installation.

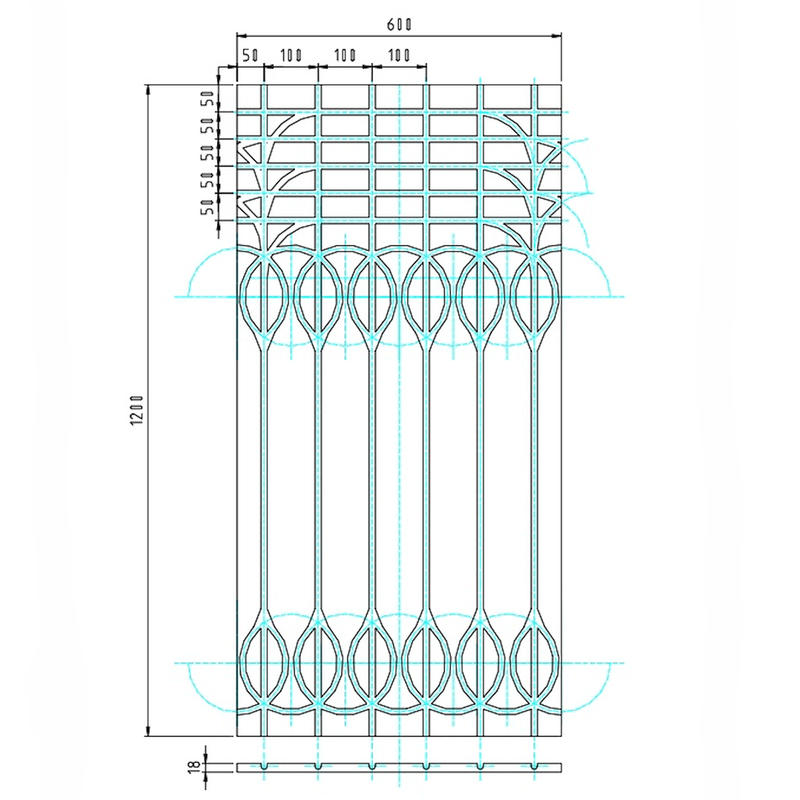

The design is based on a special milled pattern into which a 12mm plastic pipe is inserted. This design allows for rapid heating thanks to the near-surface heating circuit, resulting in high energy efficiency. Furthermore, the system can be installed without special tools, saving both time and labor.

Special advantages

A standout feature of the base plate is its exceptionally low profile. At just 18mm thick, it is ideally suited for reinforcing or replacing existing wooden floorboards during the renovation of older buildings, without sacrificing the familiar comfort of a high-performance heating system.

By using a pipe laid close to the surface, the system achieves rapid heating. This not only results in an immediately noticeable temperature increase, but also contributes to high energy efficiency through low flow temperatures.

Application areas

The MDF surface heating system base panel is suitable not only for use in floors, but also as wall or ceiling heating. The system proves to be an excellent solution, especially for sloping ceilings, as it adapts perfectly to irregular room layouts.

The system's versatility allows it to provide comfortable warmth in a wide variety of living and working spaces. Thanks to its easy installation and excellent thermal properties, you can enjoy a pleasant indoor climate in every corner of your home.

Technical details

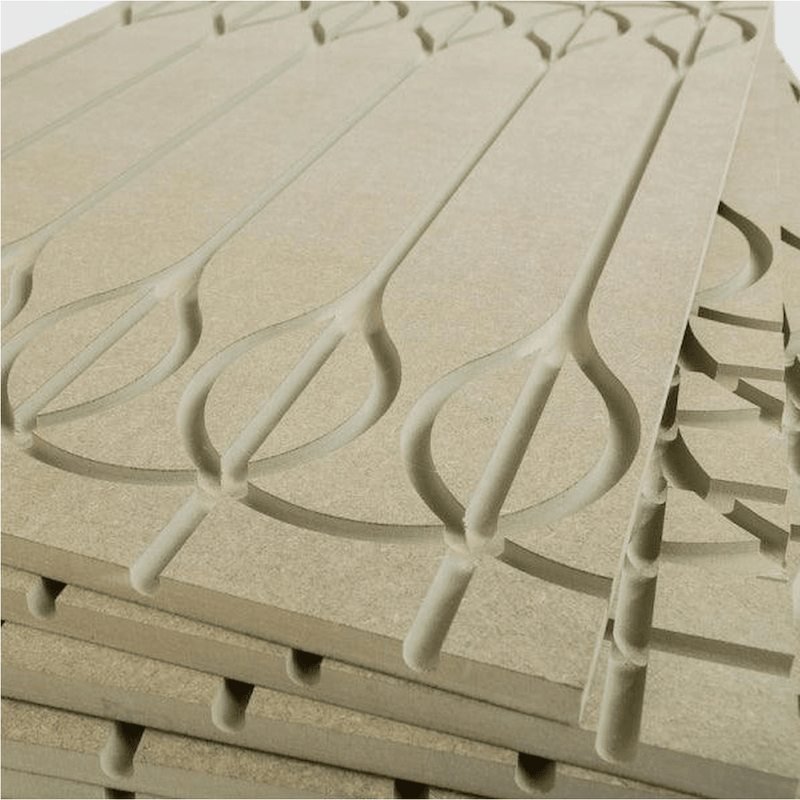

The base plate is made of medium-density fiberboard and is characterized by its high density. With dimensions of 1200mm x 600mm and a thickness of 18mm, it provides a stable and durable base for your heating systems.

Further technical specifications include a tensile strength of 0.75 N/mm² and a flexural strength of 30 N/mm², measured according to DIN EN 310. The thermal conductivity is 0.14 W/mK, ensuring even heat distribution. Furthermore, the moisture-resistant construction without added formaldehyde contributes to a healthy living environment, while the heat output varies between 60 and 80 W/m².

Installation and assembly

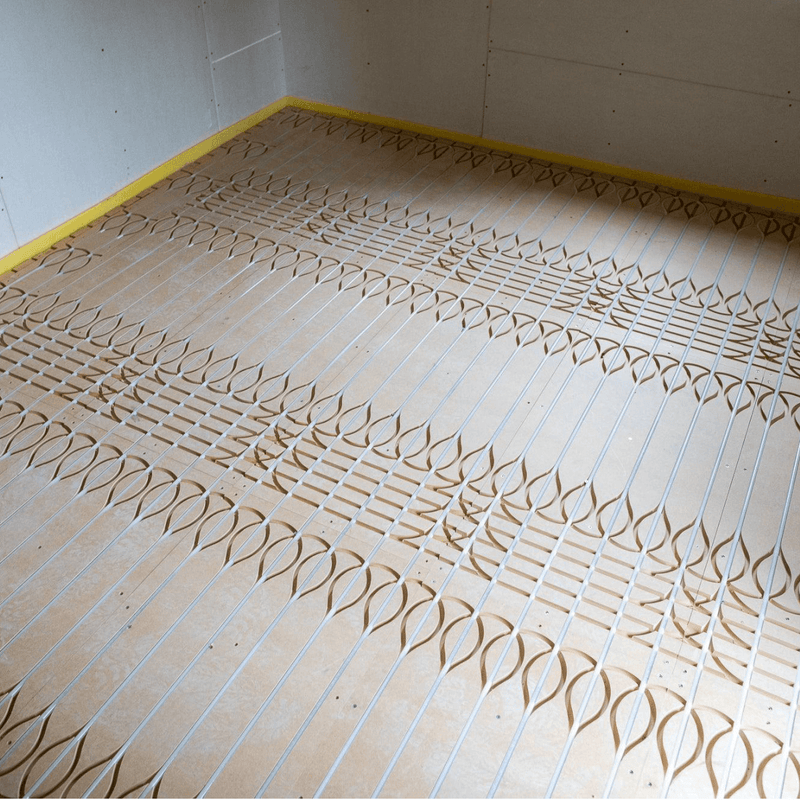

The MDF underfloor heating system base panel impresses with its simple and quick installation. The panels can be fitted precisely and adapted to the individual room without the need for special tools. The integrated pipe guides in the milled pattern allow for straightforward installation of the heating circuit.

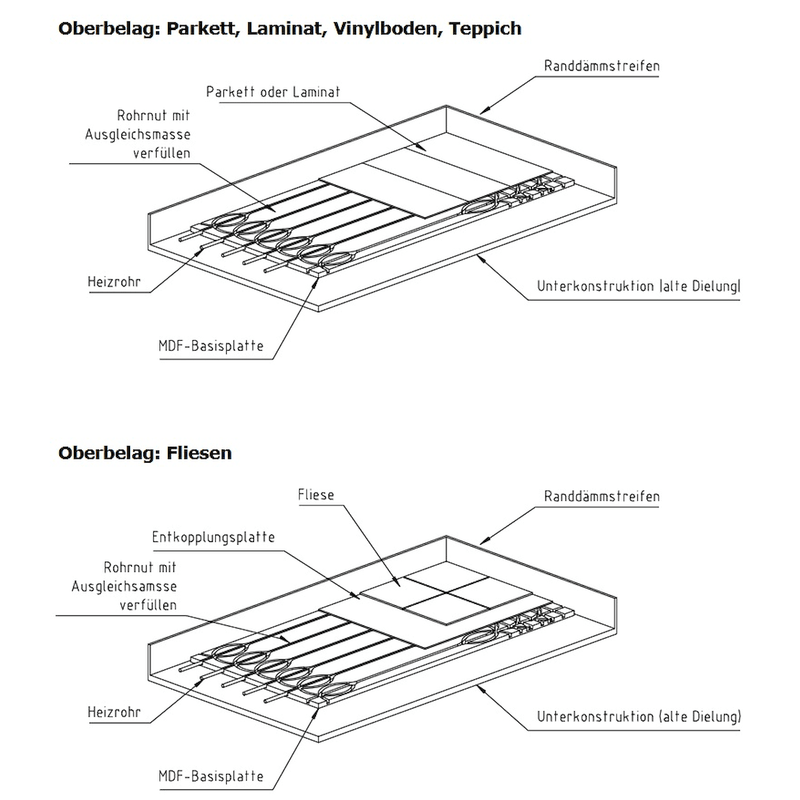

For a smooth and stable surface, the cavity of the pipe guide grooves can then be filled with a leveling compound, or optionally, a thin top plate can be glued or screwed on. These measures ensure an attractive appearance and increase the durability of the entire system.

packaging and shipping

The MDF underfloor heating system base plate is shipped exclusively by pallet to ensure safe transport. Pallet shipping guarantees that an undamaged and flawless product will be delivered directly to you.

Alternatively, you can pick up the product free of charge at any time. This offers you flexibility and the chance to save on shipping costs.
