Name: Electric hanging storage tank 20 - 140 liters hot water tank
Brand: Elektromet
SKU: EESM20
Price: 127.13 EUR
Availability: InStock

Elektro Hängespeicher 20 - 140 Liter Brauchwasserspeicher - GEMA Shop

Electric hanging storage tank 20 - 140 liters hot water tank

by Elektromet

Neu

127,13 € - 127,13 €

127,13 €

127,13 € - 127,13 €

127,13 €

Availability:

Low stock

Die Produktbeschreibung wird aktuell ergänzt. Bei Fragen zu Einsatzbereich, Auslegung oder Kompatibilität hilft dir unser Fachteam gerne weiter.

Fachhandel für Heiztechnik

Technische Beratung für Heiztechnik & Systemkomponenten
Sichere Zahlung
Paket- oder Speditionsversand je nach Produktart

Description

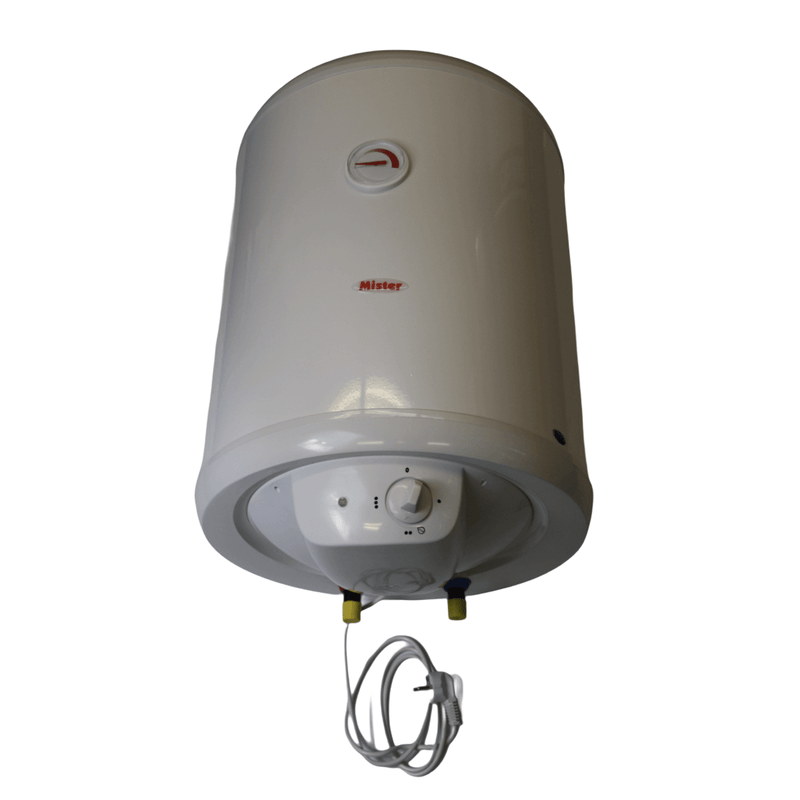

Electric Wall-Mounted Water Heater

The Electric Wall-Mounted Water Heaters WJ water heaters are pressure vessels with a steel sheet tank, coated internally with a special ceramic enamel layer that protects against corrosion by forming a glass-like layer. This ensures good quality of the heated domestic water.

Additional corrosion protection for the electric water heater is provided by a magnesium anode.

The anode's function is based on the difference in electrochemical potential between the tank material and the anode.

Electric Wall-Mounted Water Heater

The magnesium anode is located at the bottom of the electric water heater.
The thermal insulation of the electric water heater consists of a layer of CFC-free polyurethane foam, protected by a housing made of thin powder-coated steel sheet and upper and lower covers made of ABS plastic.
Thanks to modern design and technological solutions, WJ-type electric water heaters are economical, durable, and operationally reliable. They are easy to install and operate.

Electric wall-mounted water heaters can be installed in any room with water and electrical connections, except in rooms with explosion hazards or rooms with temperatures below 0°C.

WJ-type electric water heaters in the "MISTER" version are intended for vertical operation only.

FEATURES Electric Water Heater

Mister is a family of pressure storage tanks that operate in a vertical position and offer the possibility of multi-point connection.
WJ-type electric water heaters are designed for heating and storing hot water for sanitary, social, and household purposes.
The heaters are equipped with a 1500 W electric water heater - ~230V/50Hz.

Technical Data: Electric Wall-Mounted Water Heater

see image 2

TYPE		WJ 20
Usable Volume	dm³	19
Heating time for Δt= 50°C with a 1500 W heater	h	0.78
Annual electricity consumption	kWh/year	388
Load profile		S
Sound power level	dB	15
Mixed water volume at 40°C	dm³	32
Energy efficiency	%	34
Energy efficiency class*		C
Weight of the heater	kg	16

Dimensions:

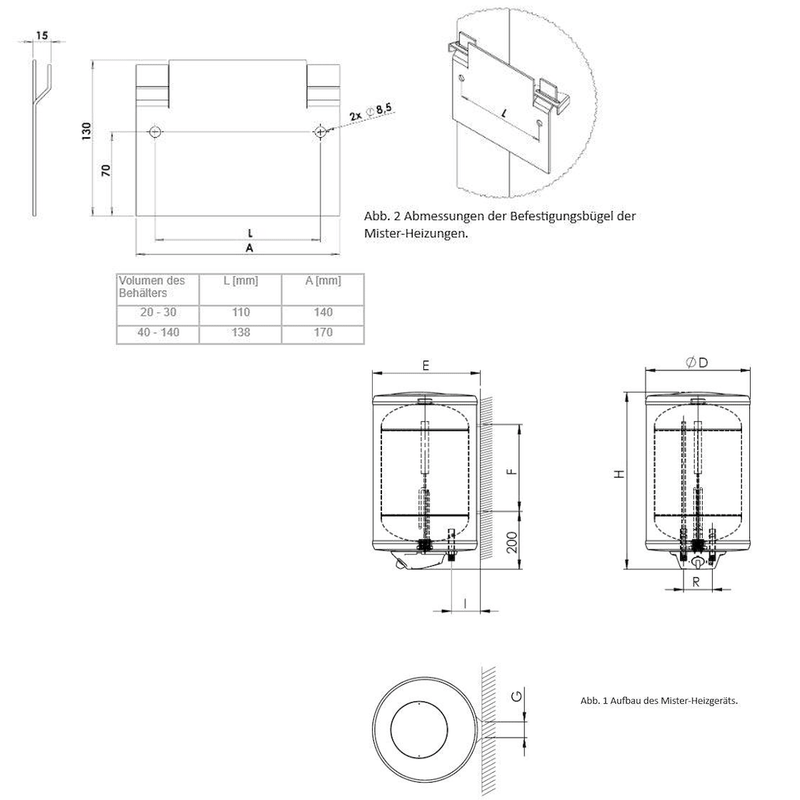

see image 3

TYPE		WJ 20
D	mm	365
H	mm	490
R	mm	100
E	mm	385
G	mm	135
F	mm	180
I	mm	110
Drinking water connections		½"

Heating controller settings:

1 - approx. 25°C
2 - approx. 50°C
3 - approx. 75°C
ECO - setting between 1 and 2, at which the tank was tested for its energy class, the most economical setting (approx. 45°C).

Technische Daten

Produkttyp	Speicher
Speichertyp	E-Hängespeicher

Dokumente & Downloads

Für dieses Produkt sind derzeit keine zusätzlichen Dokumente hinterlegt. Falls du ein Datenblatt oder eine Anleitung benötigst, frage diese bitte bei uns an.

FAQ / Hinweise

Zu diesem Produkt wurden noch keine produktspezifischen Fragen hinterlegt. Unser Fachteam unterstützt dich gerne bei technischen Fragen zur Auswahl, Montage oder Kompatibilität.
