The MPM Wood Plus 6 is a modern wood gasification boiler with a nominal output of 6 kW for logs. It meets Ecodesign requirements and achieves energy efficiency class A+. Ideal for single-family homes with buffer storage operation.
Highlights/Advantages
⭐ Efficient wood gasification with 82.9% efficiency at nominal output ⭐ Energy efficiency class A+ (EEI 117) – complies with EU Ecodesign 2015/1189 ⭐ Robust welded steel construction with ceramic burner & Suitable for open and closed operation (up to 1.5 bar) ⭐ Optimized for buffer tank operation (minimum 300 liters recommended)

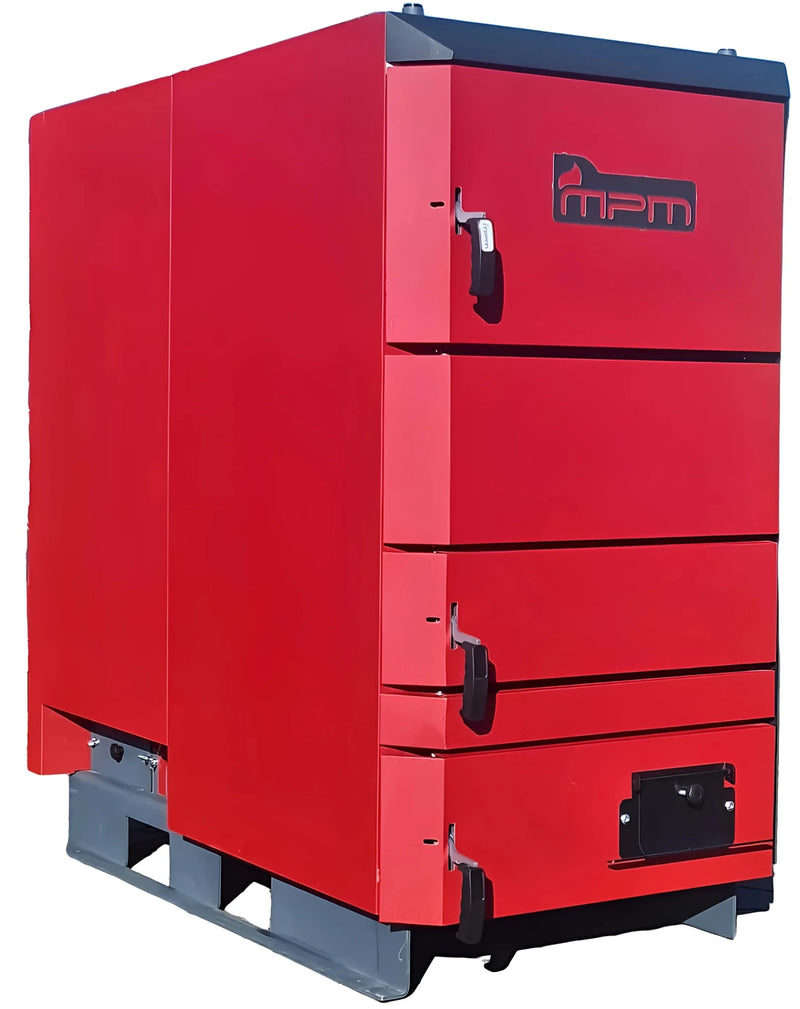

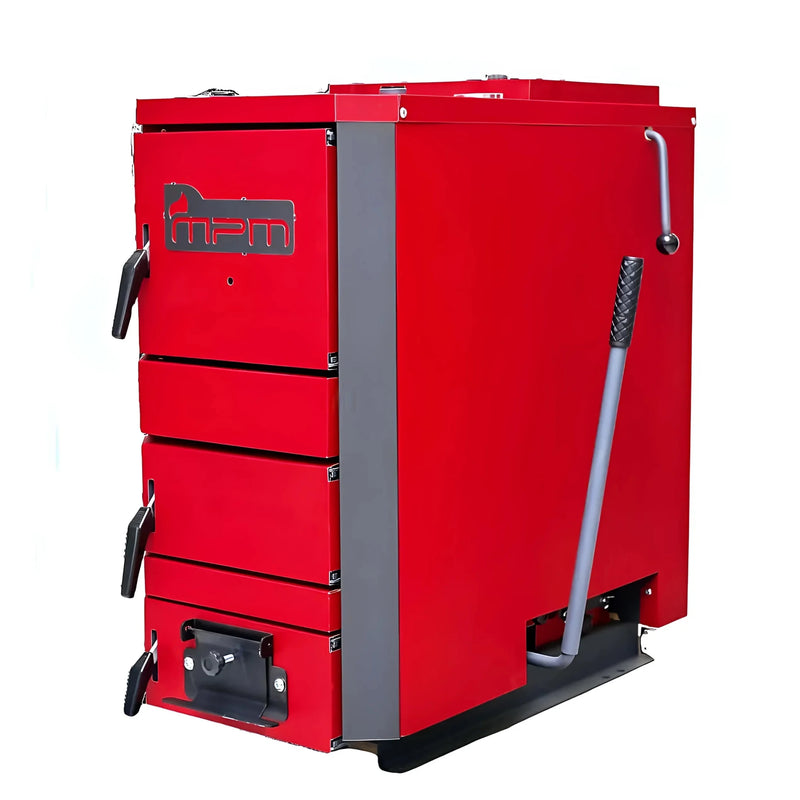

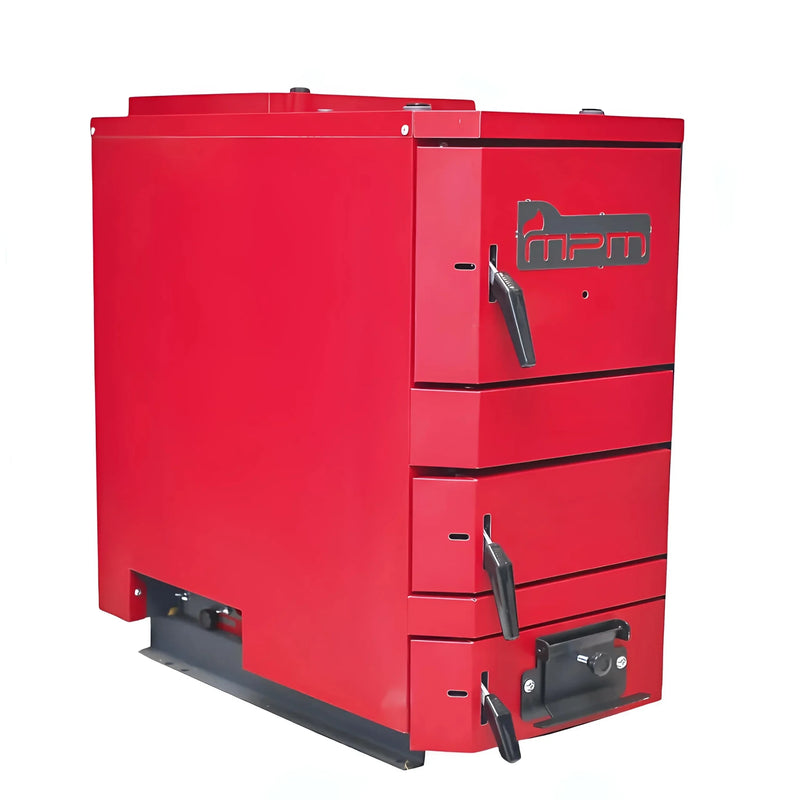

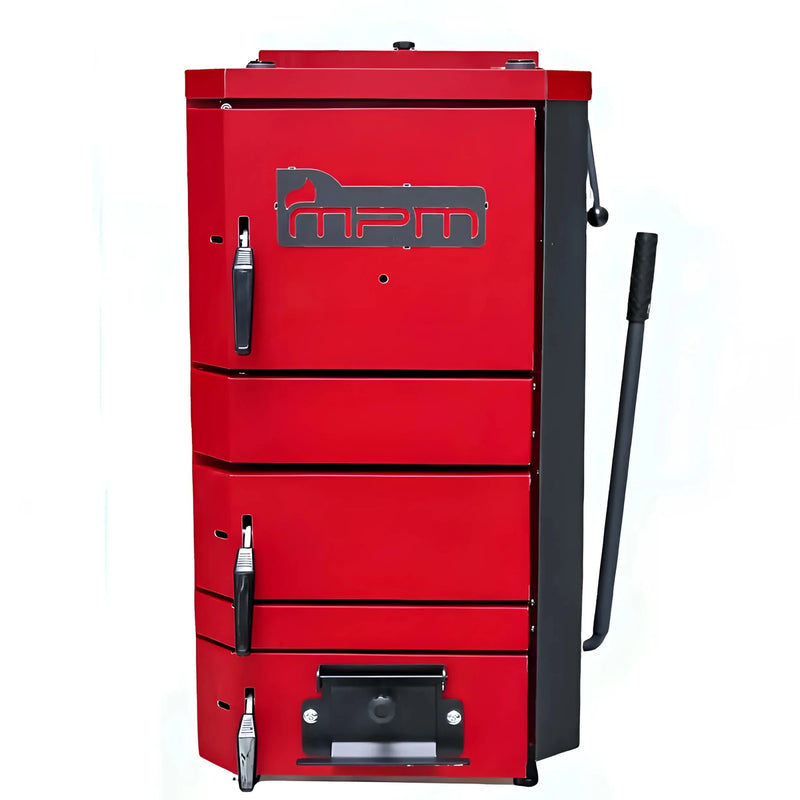

MPM Wood Plus 6 kW wood gasification boiler
Area of application & Target audience
The MPM Wood Plus 6 is a water-bearing wood gasification boiler with manual feeding for logs (moisture content ≤ 25%). It is particularly suitable for:
Single-family homes
small residential buildings
Workshops or commercial premises with low heating requirements
The system operates exclusively at nominal power in conjunction with a buffer storage tank.
Everyday benefits
The carburetor technology ensures a two-stage combustion: First, the wood is degassed, then the resulting wood gases are completely burned in a ceramic combustion chamber.
The result:
stable combustion
low emissions
high efficiency
Burning time up to approx. 4 hours per filling
With a fuel consumption of approximately 1.5 kg/h, the boiler operates economically and in a resource-saving manner.
Technology & equipment
The MPM Wood Plus 6 is made of certified steel boiler plate in a welded construction. The construction includes:
large loading chamber (~30 dm³/approx. 10 kg wood)
movable cast iron grate
Metal-ceramic burner
vertical flue gas ducts with turbulence element
mechanical tension regulator
Thermometer in the upper boiler area
DBV-1 connection for thermal overheating protection
Thermal insulation is provided by 40 mm of mineral wool.
Efficiency & Environment
The boiler meets the requirements of Regulation (EU) 2015/1189 (Ecodesign).
Key values:
Seasonal space heating energy efficiency: 80%
Energy efficiency class: A+
Energy Efficiency Index (EEI): 117
PM: 15 mg/m³
OGC: 18 mg/m³
CO: 653 mg/m³
NOx: 163 mg/m³
It corresponds to class 5 according to PN-EN 303-5:2021-09.
compatibility & System integration
The MPM Wood Plus 6 can be operated:
in the open heating system
in a closed heating system (with diaphragm expansion vessel and safety devices)
Key operational requirements:
Recommended buffer storage volume: at least 330 liters
Minimum return temperature: 65 °C
Operating temperature: 60–90 °C
Maximum operating pressure: 1.5 bar
A thermostatic anti-condensate valve (65 °C) is strongly recommended.
Installation exclusively by a qualified specialist company
Operation only with buffer storage
Return temperature continuously ≥ 65 °C
Safety distance to flammable materials: at least 1 m
Chimney draft of approximately 0.20 mbar required
No operation with plastics or unsuitable fuels
Failure to comply will result in loss of warranty.
FAQ
1.Is the MPM Wood Plus 6 eligible for funding? It meets Ecodesign requirements and energy efficiency class A+. National funding conditions must be checked individually.
2. Is a buffer storage tank mandatory? Yes. Operation is only possible with a buffer tank of at least 300 liters.
3. Can the boiler be operated in a closed system? Yes, with a diaphragm expansion vessel, safety valve and thermal relief valve.
4. Which type of wood may be used? Firewood with a maximum moisture content of 25%, ideally air-dried for at least two years.
5. What is the efficiency? 82.9% at rated power; thermal efficiency 89%.
6. What return temperature is required? At least 55 °C to avoid low-temperature corrosion.
7. How long does a filling burn? Up to approximately 4 hours, depending on fuel quality and system design.
Conclusion
The MPM Wood Plus 6 is a compact, Ecodesign-compliant wood gasification boiler for smaller buildings with buffer storage operation. An efficient, robust and technically sophisticated solution for sustainable heating with firewood.
