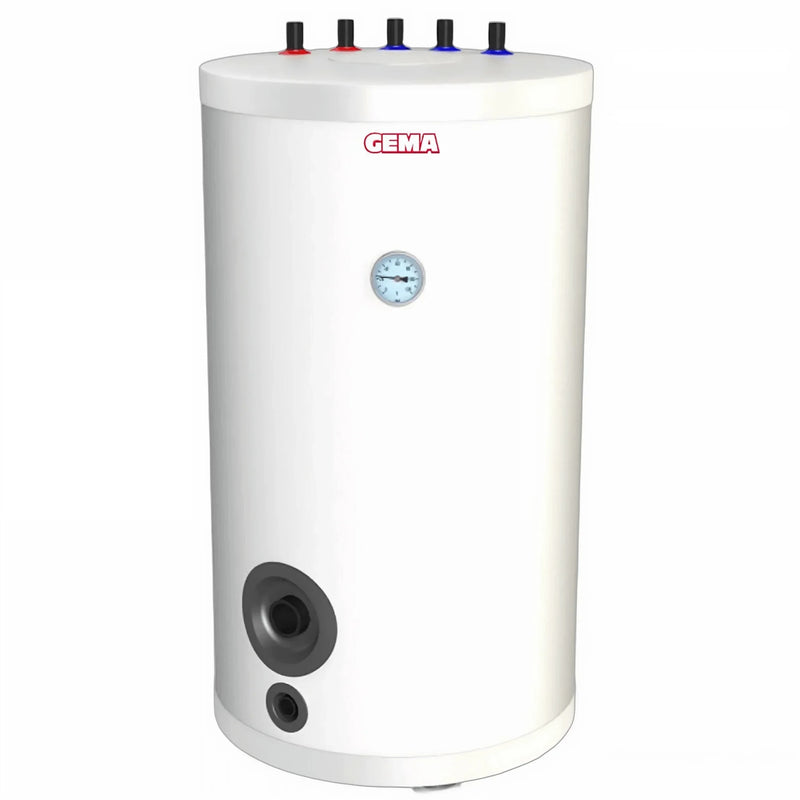

100-liter hot water storage tank for domestic hot water with 1 heat exchanger

The ETWS 100 liter hot water storage tank is used for central and safe hot water heating.

The highly efficient heat exchangers They heat domestic hot water inside, using thermal energy from a thermal source. solar system or from a boiler.

An additional way to heat your hot water is to couple the photovoltaic system with a retrofittable [device/system - context needed]. 1 1/2" heating element, which is connected to the buffer storage tank.

For a long service life The drinking water storage tank has corrosion protection in the form of a high-quality enamel coating.

A built-in magnesium anode (protective, sacrificial anode) serves as additional corrosion protection inside the storage tank.

Advantages: 100-liter ETWS hot water storage tank

• Excellent value for money
• High hot water comfort for a demand of 100 - 180 liters
• A highly efficient heat exchanger
• With circulation connection
• Connection for a 1 1/2" electric heating element
• Large magnesium anode for protection against corrosion
• Thermal insulation polyurethane foam (PUR), firmly foamed
• Corrosion protection inside through a high-quality enamel coating
• Can be combined with solid fuel boilers and wood gasification boilers, pellet boilers as well as combination boilers and Solar thermal systems

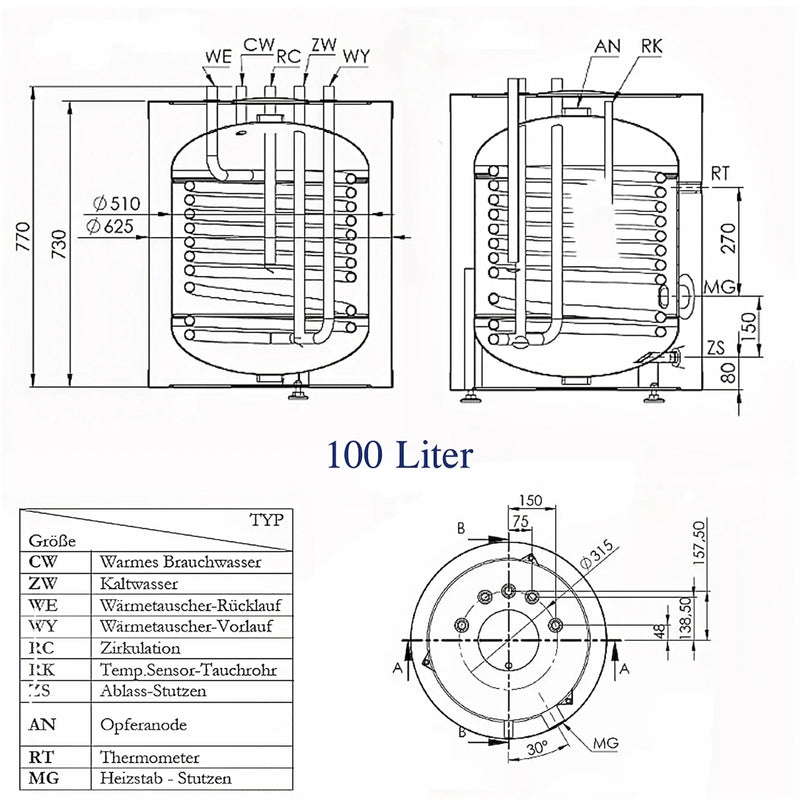

Technical specifications for a 100-liter hot water storage tank:

• Volume: 100 liters
• Heat exchanger surface area: 1.2 m²
• Heat exchanger capacity: 5.27 liters
• Heating flow and return connections: 3/4" AG
• Domestic hot water supply and return connections: 3/4" AG
• Circulation connection: 3/4" AG
• Magnesium anode connection: 1 1/4" IG
• Connection for electric heating: 1 1/2" IG
• Thermal insulation: Polyurethane foam (PUR)
• Maximum operating temperature of storage tank: 95 °C
• Maximum operating pressure of storage tank/heat exchanger: 6 bar
• Max. operating temperature heat exchanger 100 °C
• Loss: 28 watts
• Dimensions with insulation (diameter x height): 625 x 770 mm
• Weight (empty): 64 kg

Scope of delivery:

• 100 liter hot water storage tank with 1 heat exchanger including insulation

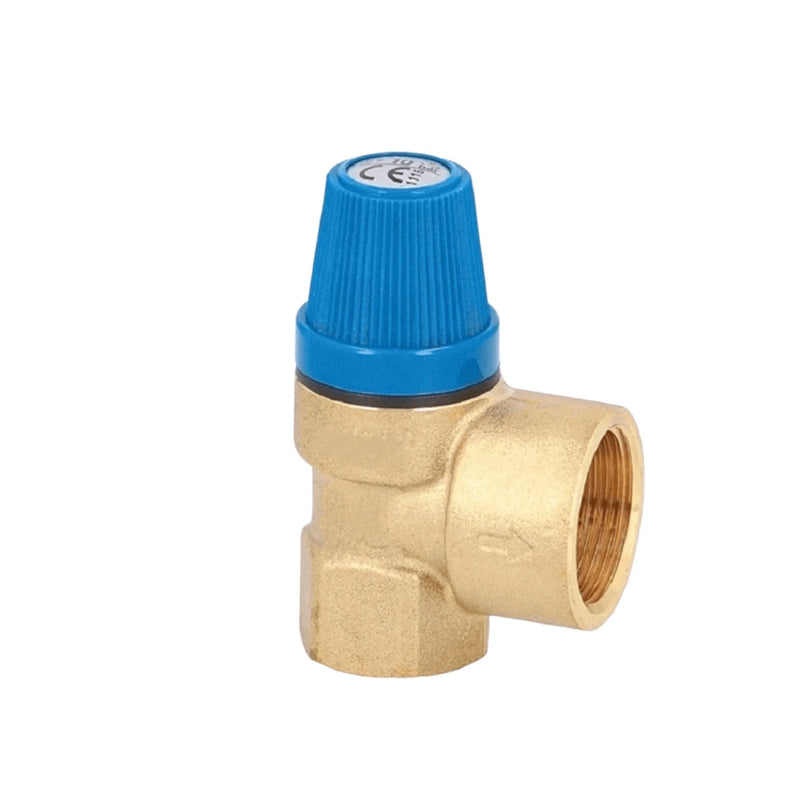

• Safety valve
• Operating and maintenance instructions
