Pellet boiler Atmos P14
Atmos P pellet boiler with log function (eligible for subsidies)
Information regarding funding!
The Atmos The P series boilers are eligible for subsidies from 25 kW without a particle separator. The lower-powered boilers only meet the requirements with a particle separator.
For this reason, we only offer the eligible options online.
Should you choose the version without a particle separator For the 14-21 kW boilers, or if you prefer the particle separator for the P25 variant, please contact us and we will create a customized offer for you.
Request a quote

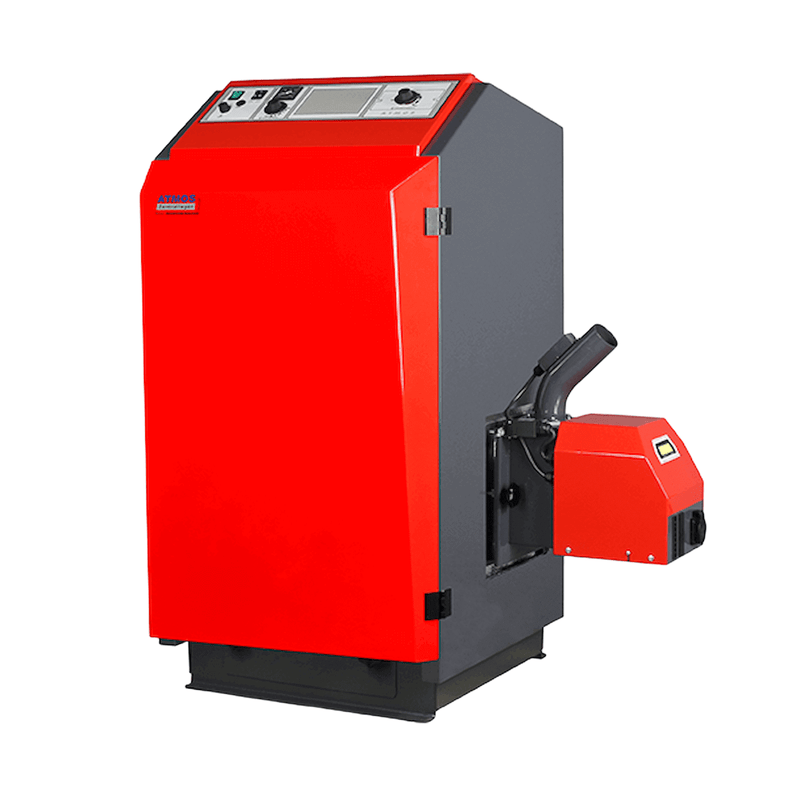

Pellet boiler Atmos P14

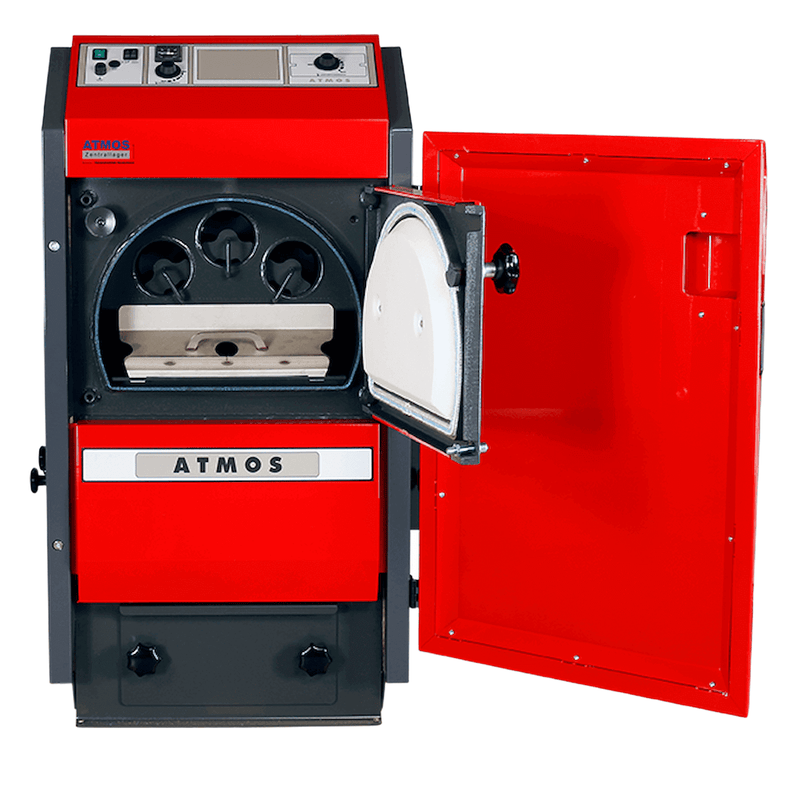

The boilers of the ATMOS P pellet boiler series The P14, P21, and P25 are characterized by their automatic, compact, and user-friendly pellet heating systems, requiring minimal maintenance. With a nominal heat output of 14–24 kW for 6–8 mm wood pellets, they cover the heating needs of single-family and multi-family homes. The boilers in the ATMOS P-series are dedicated pellet boilers that can operate independently or, often, in combination with a separate wood-burning boiler. Depending on the installation situation, the burner can be mounted on the left or right side of the boiler. This offers the advantage of keeping it out of the way during cleaning, and all surfaces are easily accessible to the user after opening the large boiler door. As with our other pellet boiler series, pellets are fed via an auger from a separate ATMOS silo, fabric storage unit, or on-site storage room. Depending on the application, we offer augers in lengths of 1.5, 2.0, 2.5, 3.0, and 4.0 meters. Since ATMOS prioritizes the reliability of its pellet boilers, the augers are only designed as a straight-running system!
equipment & Characteristics
- It has a large combustion chamber
- Pellet boiler made of high-quality 6 mm boiler steel
- Pellet burner can be mounted on the right or left as needed.
- The P-series offers a very compact, space-saving design.
- easily accessible exhaust gas heat exchanger
- very user-friendly and quick boiler cleaning
- The P-series can be expanded with automatic ash removal.
- equipped with the ATMOS A25 or A45 pellet burner
- low power consumption
- Can be combined with ATMOS wood gasifiers
- very high efficiency > 90% and best emission values
- The ATMOS P pellet boilers are eligible for BAFA funding.
- unique price-performance ratio
Technical data
- Energy efficiency class A+
- Boiler class 3
- Nominal heat output 14 kW
- Efficiency 90.1%
- Traction requirement 14 Pa
- CO content 169 mg/m³
- Dust emission 9 mg/m³
- Prescribed fuel: pellets
- Exhaust gas temperature 127 °C
- Exhaust gas mass flow 0.011 kg/s
- Height 1207 mm
- Width 620 mm
- Depth 770 mm
- Flue pipe connection 150/152 mm
- Flue pipe outlet 807 mm
- Weight 315.0 kg
Scope of delivery
- Atmos P14 pellet boiler
- Assembly & User manual
Download
👉 Order commissioning now, along with the commissioning!
With the "Commissioning by ATMOS" service, you ensure that your boiler is optimally set up and that all technical requirements are met.
Further information on the process, requirements and services can be found in our article on [ATMOS commissioning].
