Defro Firewood connection package – complete solution for your heating connection

Product description

The Defro Firewood connection package offers you a comprehensive solution for optimizing your heating system. It combines innovative technology and high-quality components to ensure safe and reliable operation. With this package, you meet the highest quality standards for the control and connection of your heating system.

Precise temperature regulation and coordinated components ensure smooth heat exchange and support efficient energy utilization. This creates optimal conditions for a trouble-free heating circuit.

Extensive scope of delivery

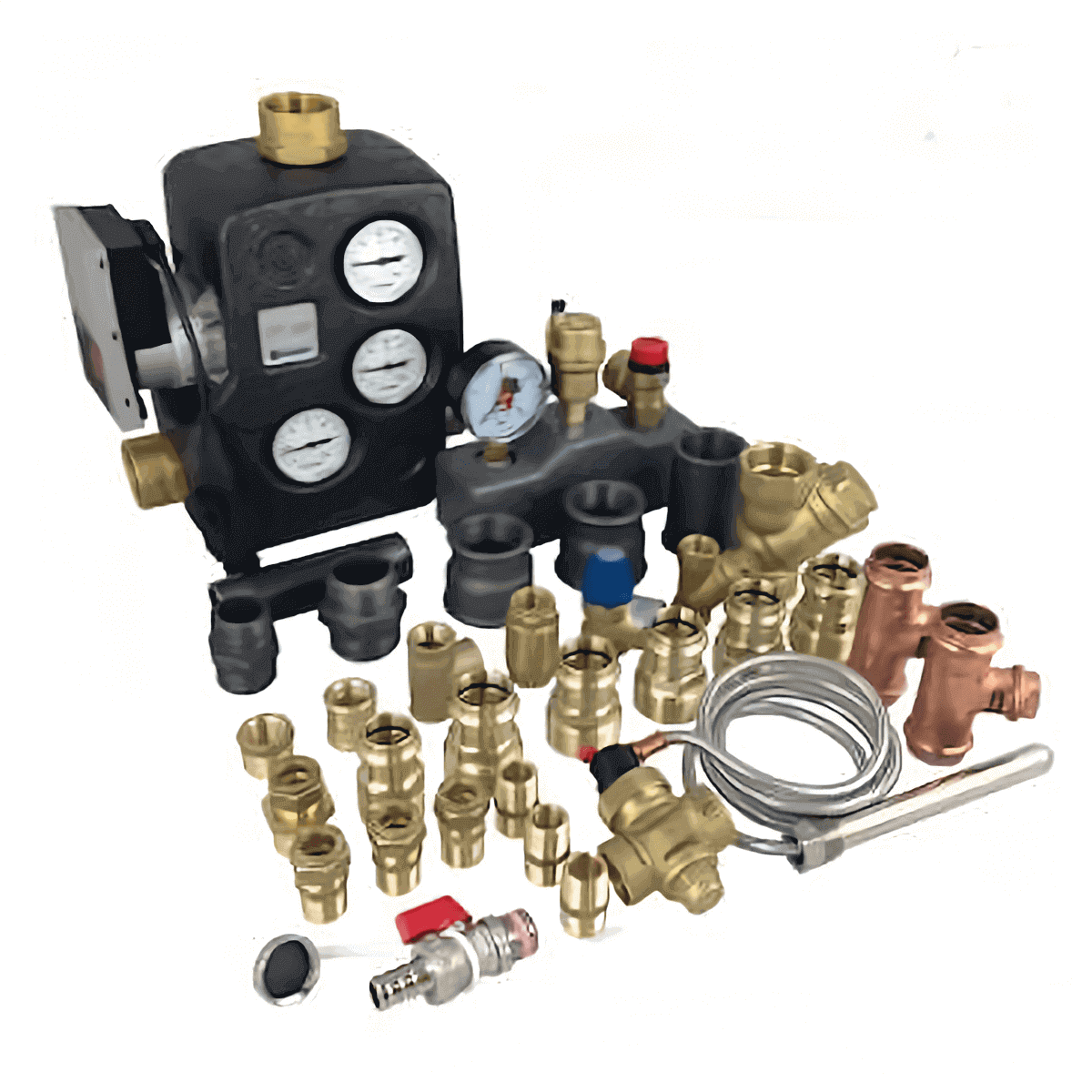

The package includes a variety of high-quality components. The scope of delivery includes two return temperature boosters – one with a 70°C and one with a 72°C return flow including a high-efficiency pump, thermometer, and 1¼" insulation, and a 60°C version including a pump. The set is complemented by a 1" boiler safety assembly (KSG1) and a 1/2" boiler fill and drain valve (KFEH12).

Other components in the set include a 1" black sleeve (SM1), a 1" x 1/2" black malleable cast iron reducer (RST241112S), and two 1" black malleable cast iron tees (T1301S). Two 1 1/2" x 1" reducing double nipples (RDN2451121S) and various black double nipples (DN2801S, DN280114S, DN12RG) round out the comprehensive scope of delivery. Also included are dirt traps (SF114, SF12) and a 1/2" Euro check valve (RVTL12EU).

Technical features and application

The insulated components and high-quality manufacturing guarantee precise control of the heating circuit. Each component is designed for durability and efficient operation, so you benefit from optimal interaction. The coordinated technology enables reliable operation even under demanding conditions.

Thanks to its clear functionality and easy installation, the connection package is suitable for both new buildings and modernizations of existing heating systems. This way, you contribute to energy-efficient and sustainable operation through the use of modern heating technology.

Easy installation and maintenance

The well-thought-out design and clear arrangement of components make installation much easier. With appropriate assembly instructions, assembly is quick and much more straightforward.

The components also offer a high level of serviceability during maintenance. The modular design allows for easy identification and replacement of individual components, which contributes to a reduction in operating costs in the long term.

Scope of delivery

• 1x return temperature increase 70°C or 72°C including high-efficiency pump, thermometer and insulation, 1¼"
• 1x KSG1 - boiler safety group 1"
• 1x return flow increase 60°C including high-efficiency pump
• 1 x KFEH12 - boiler filling and draining tap 1/2"
• 1x SM1 - Sleeve black 1"
• 1x RST241112S - Malleable cast iron reducer black 1" x 1/2"
• 2 x T1301S - Malleable cast iron T-piece 1" black
• 2x RDN2451121S - reducing double nipple 1 1/2" x 1" black
• 2 x DN2801S - Malleable cast iron double nipple 1" black
• 1x DN280114S - malleable cast iron double nipple 11/4" black
• 1x SF114 - Mud flap 1 1/4"
• 1x SF12 - dirt trap 1/2"
• 1x RVTL12EU - Euro check valve 1/2"
• 2x DN12RG - gunmetal double nipple 1/2"
