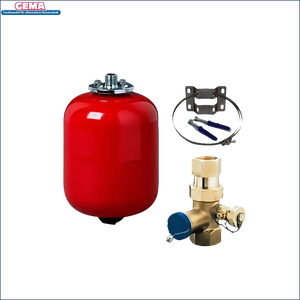

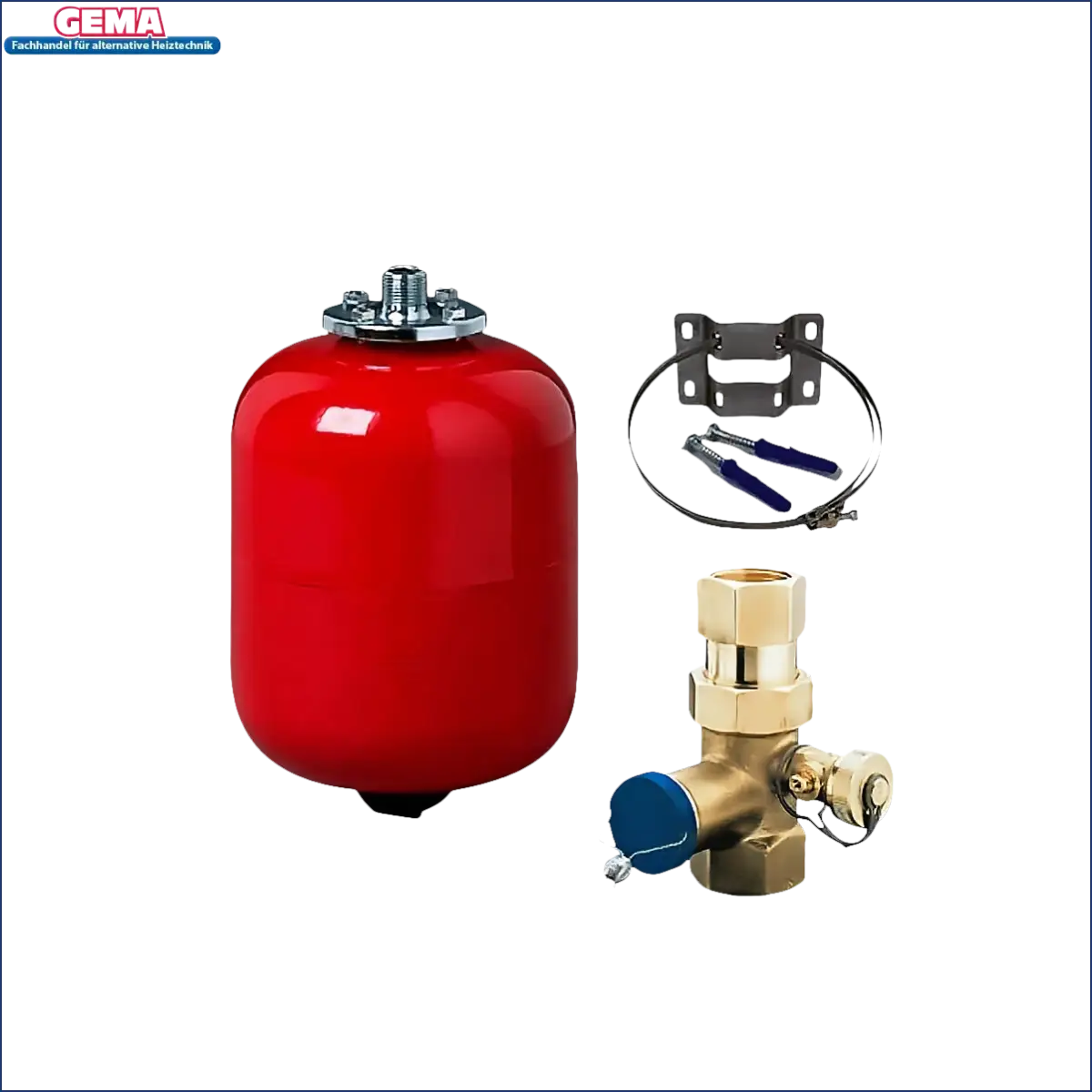

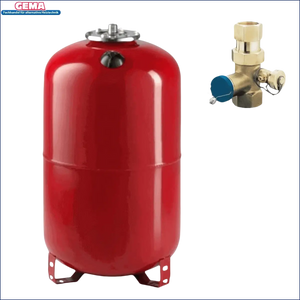

Expansion vessel for heating and domestic water 80 to 200 liters

Expansion tank for heating 80 to 200 liters

Product description

This high-quality expansion tank for heating systems guarantees reliable pressure equalization within modern heating systems. Available in 80, 100, 140, and 200-liter capacities, it is flexibly adaptable to the diverse requirements of heating systems – both in residential and commercial buildings.

The expansion tank was specially designed and optimized for use in heating systems. It features precise adjustment of all relevant parameters, including the operating pressure, maximum flow temperature, and factory pre-set pressure, ensuring consistently efficient operation of the entire heating system. This allows the heating system to run stably even during significant fluctuations in temperature or water volume and protects it from unwanted overpressure situations.

Technical data

The expansion tank is available in four versions: N80 (80 liters), N100 (100 liters), N140 (140 liters), and N200 (200 liters). The maximum operating pressure is 3 bar. The flow temperature is designed for temperatures up to 110°C, ensuring reliable operation even at high system temperatures.

The preset nitrogen pressure is 1.5 bar, which ensures constant and safe operation. Installation is particularly easy thanks to the standardized 1"-Thread on the connection, which enables use in a variety of systems and supports quick assembly.

Special features and application

With its robust design and high-quality workmanship, the expansion tank offers reliable protection for any heating system. It optimally absorbs volume changes in the heating water due to heating, thus effectively protecting the system from damage caused by excessive pressure. This is particularly advantageous when used in demanding heating systems or domestic water heating.

An optionally available cap valve with 1"The connection allows for additional flexibility during installation and maintenance of the expansion tank for heating systems. This makes this product suitable for a wide range of applications in new or existing systems and ensures long-term system reliability and durability. The targeted use of a suitable expansion tank can prevent potential consequential damage and significantly extend the service life of the entire heating system.
