Daikin Altherma M HW 200 – Innovative hot water heat pump

Daikin Altherma M HW 200 – Innovative hot water heat pump with integrated 200L storage tank

Product overview

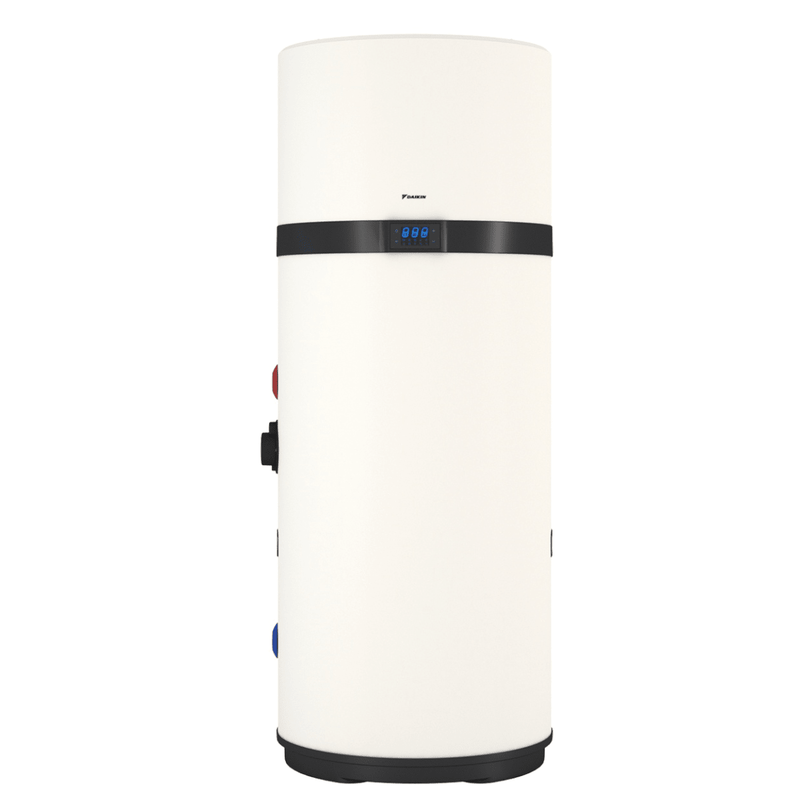

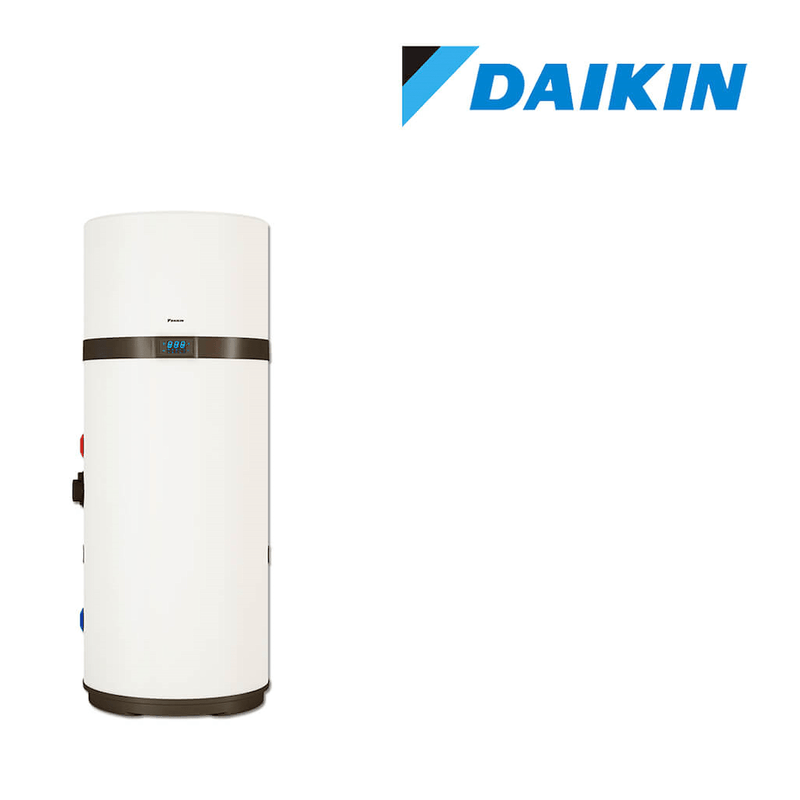

The Daikin Altherma M HW 200 is an advanced Air-to-water heat pump, which impresses with its integrated 200-liter hot water storage tank. With its compact monoblock design, it combines efficient hot water preparation and innovative technology in a single unit, making it ideally suited for both new builds and renovations.

This high-quality unit provides hot water temperatures up to 62°C without an additional heating element and even reaches up to 75°C with the backup function activated. The majority of the energy is drawn regeneratively from the ambient air, ensuring sustainable heat.

Function and technology

The heat pump It uses the heat contained in the room air to efficiently heat the water. Thanks to the integrated technology, falling temperatures are optimally compensated for, even at low outside temperatures. The 1.5 kW heating element plays a supporting role when there is a particularly high demand for hot water.

The device can be individually configured via a programmable digital interface with touch buttons, ensuring a perfect balance between comfort and efficiency. With minimal power consumption and maximum safety, this heat pump guarantees a constant and clean supply of hot water.

Operating modes for individual comfort

The Daikin Altherma M HW 200 It offers various operating modes that adapt optimally to different needs. In ECO mode, it relies exclusively on renewable energy, while in AUTO mode, the heating element provides support as needed to ensure the desired comfort at all times.

The BOOST function allows for the rapid preparation of hot water by combining both heating methods. This flexibility makes the appliance an ideal solution for households that place particular value on efficiency and fast response times.

Energy efficiency and environmental friendliness

With 75% of its heating output coming from renewable sources, the heat pump is based on state-of-the-art environmental technology. This reduces electricity consumption to a minimum and creates a sustainable system for hot water preparation.

In addition, integrating a photovoltaic system or solar thermal system allows for even more effective use of solar energy. This way you benefit from double advantages – reduced energy costs and an active contribution to environmental protection.

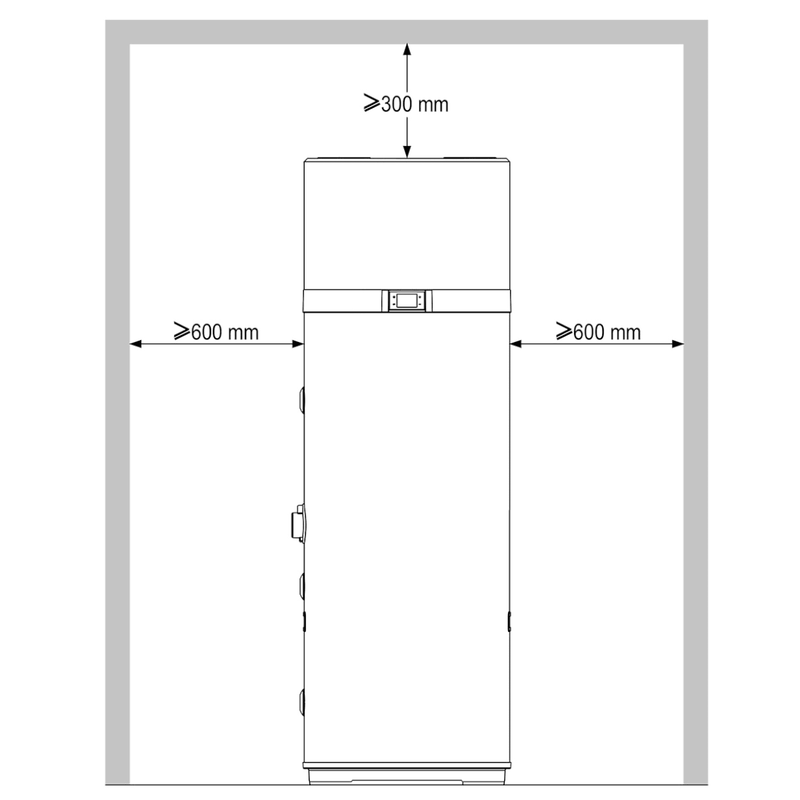

Easy assembly and flexible use

Thanks to the compact monoblock design and pre-assembled components, installation is quick and easy. Daikin Altherma M HW 200 Uncomplicated and space-saving. The unit can also be installed in unheated rooms such as garages or laundry rooms, requiring only minor drilling for the air intake and exhaust pipes.

Its light weight and compact design allow for easy installation even in narrow passageways and tight doorways. This flexibility and simple setup make the heat pump an ideal choice for a wide variety of room layouts.

Safety and hygienic operation

The integrated hot water storage tank, Made of enamelled steel, it ensures the highest safety and hygiene standards. The anti-Legionella function reliably prevents potential risks.

With its well-thought-out design and advanced safety features, the Daikin Altherma M HW 200 offers reliable operation that meets the demands of both modern households and sustainable technology.

Technical data

• Maximum heating time: 6:27 hh:mm
• COP (hot water): 3.23
• Heating output (nominal): 1.34 kW
• Nominal air flow: 350 - 500 m³/h

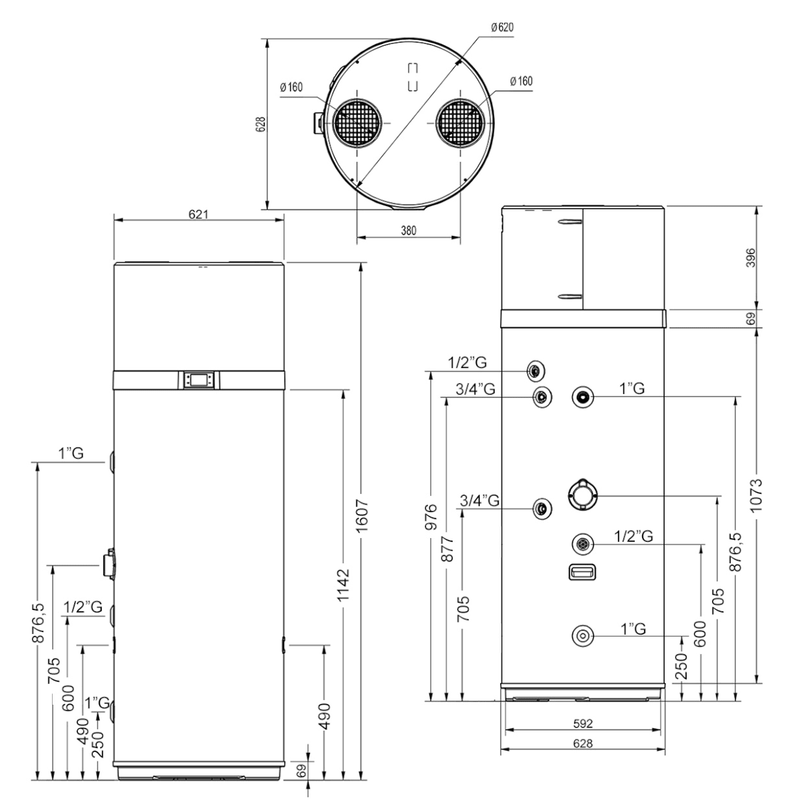

• Dimensions (H x Øtop x Øbottom): 1607 x 621 x 628 mm
• Weight: 85 kg
• Installation location: Indoor
• Defrosting method: Hot gas
• Automatic start of defrosting operation: -5 °C
• Maximum system pressure: 7 bar
• Operating range: -7 to 43 °C
• Refrigerant: R134a
• Global warming potential (GWP): 1430 kgCO2-eq
• Quantity: 1 kg
• CO2 equivalent: 1.43 toCO2-eq
• Power supply: 230V/50Hz
• Maximum operating current: 8.5 A
• Power consumption: 26 W
• IP protection class: IP24
• Power of integrated heating element: 1.5 kW
• Material: enamelled steel
• Water volume: 192 liters
• Heat loss: 63 W
• Designated load profile: L
• Energy efficiency class: A+
• Hot water temperature: 10 to 75 °C
• Hot water reference temperature: 52.5 °C
• Average climate nwh (water heating efficiency): 135%
• Sound power level (hot water preparation): 53 dB(A)
• Air intake: Ø 160 mm
• Exhaust air: Ø 160 mm

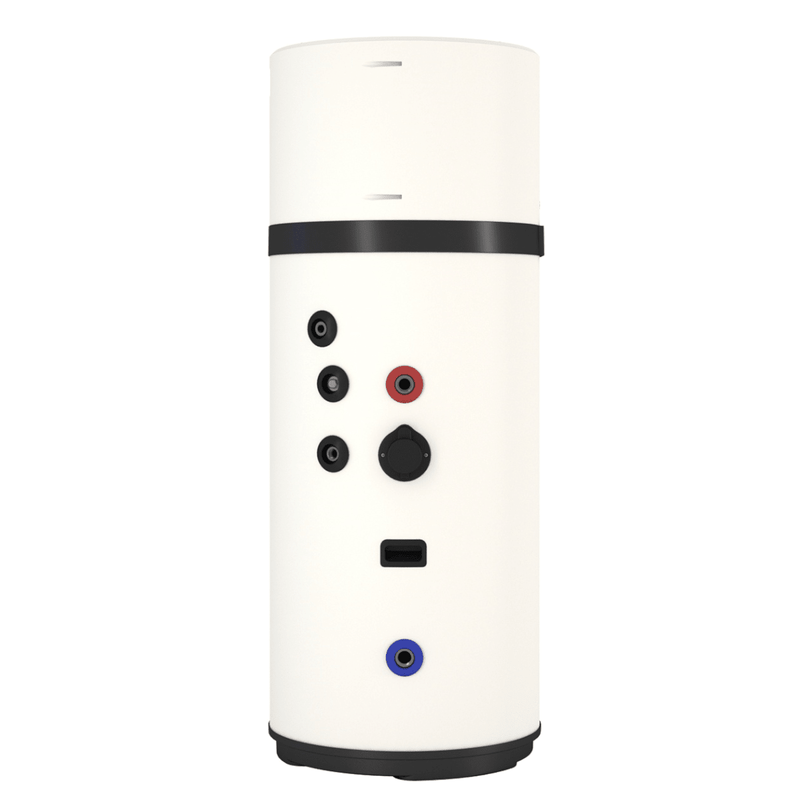

• Hot and cold water connection: 1"
• Condensation drain: 1/2"

Scope of delivery

• Daikin domestic hot water heat pump
• Assembly & User manual

Download

• Datasheet
