Daikin Altherma M HW 200-Innovative hot water heat pump

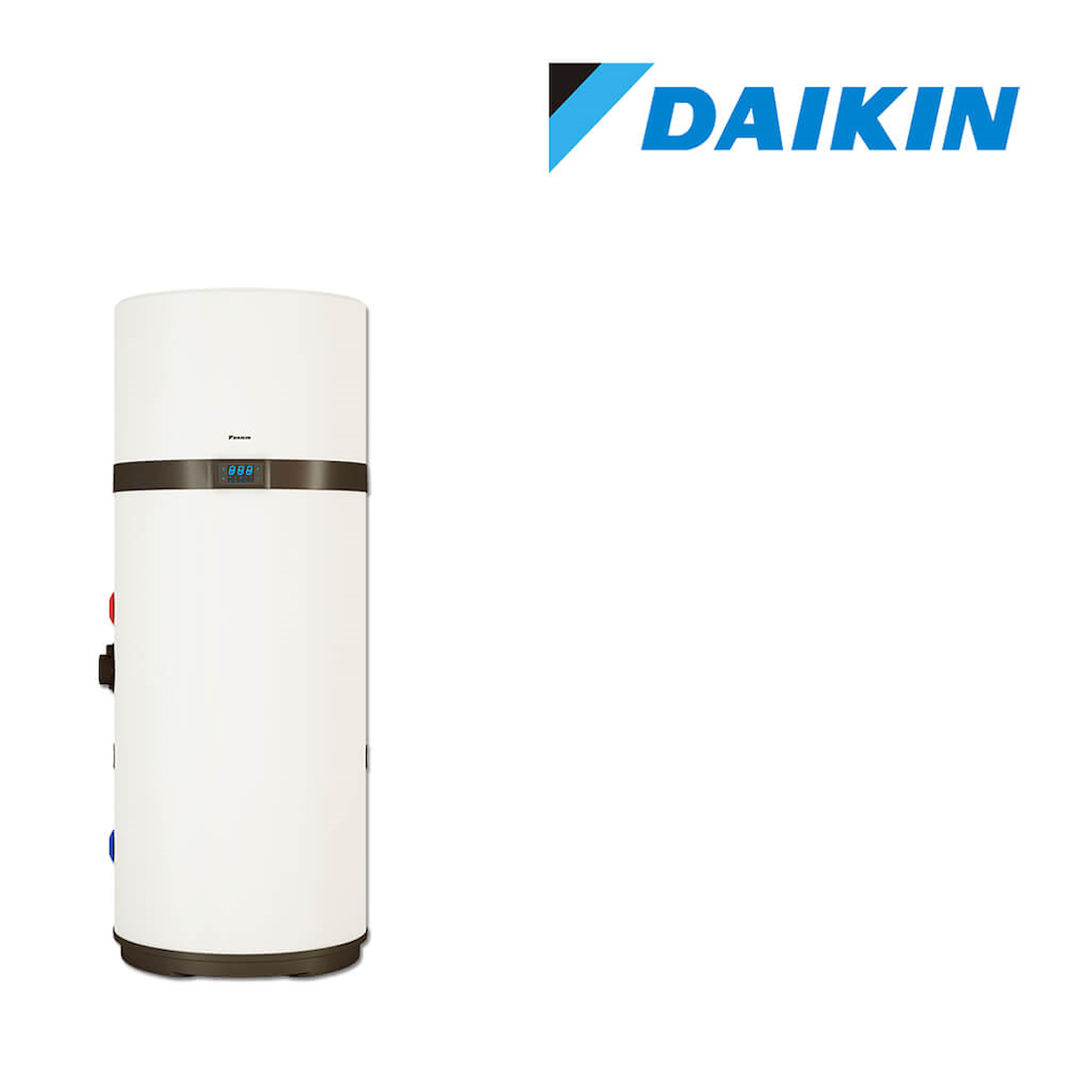

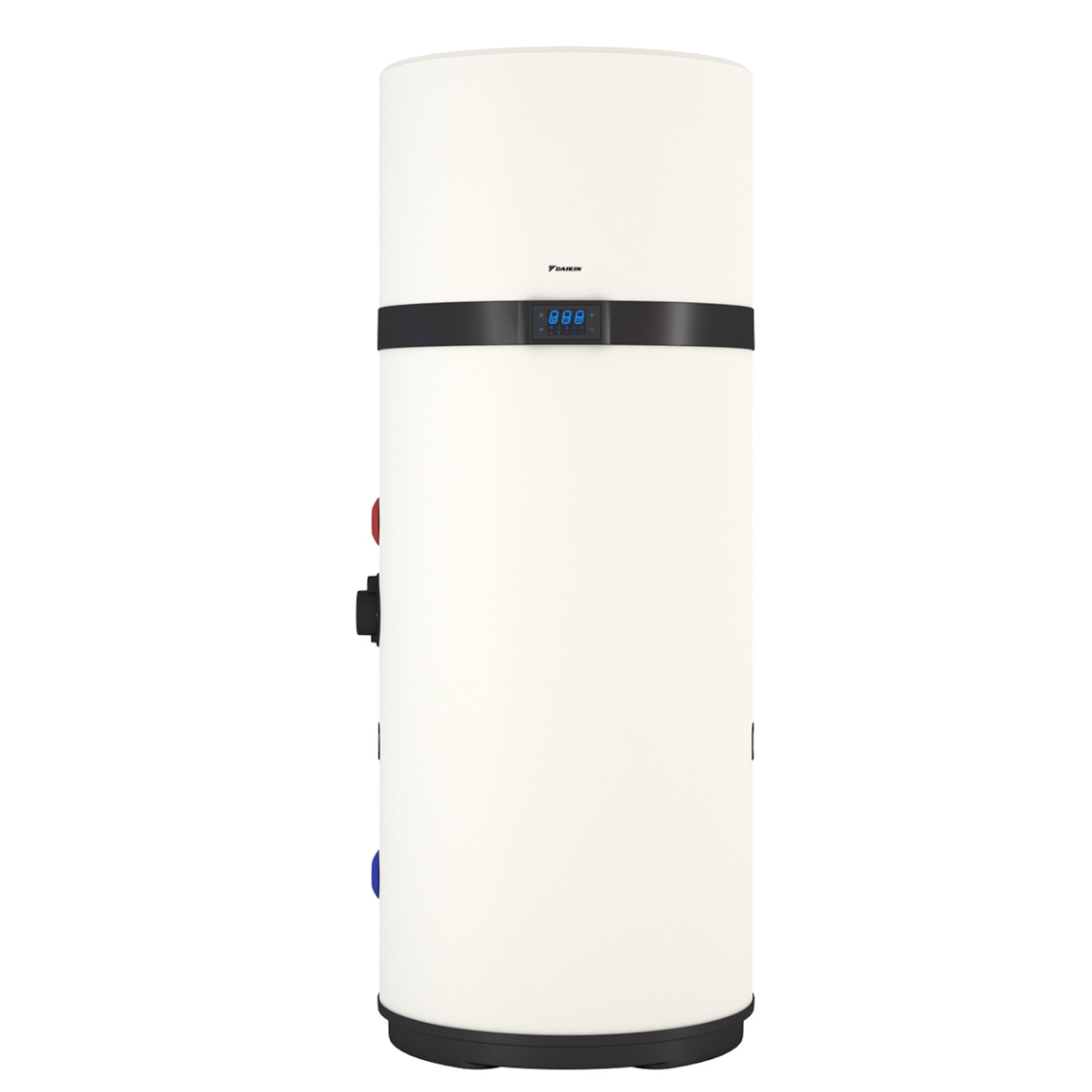

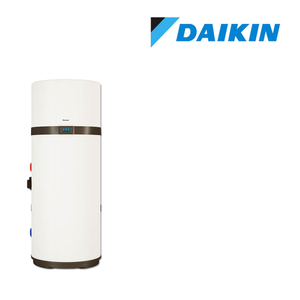

Daikin Altherma M HW 200 – Innovative hot water heat pump with integrated 200L storage tank

Product overview

The Daikin Altherma M HW 200 is an advanced Air-water heat pump, which impresses with its integrated 200-liter hot water tank. With a compact monoblock design, it combines efficient hot water production and innovative technology in a single unit that is ideal for both new buildings and renovations.

This high-quality device offers hot water temperatures of up to 62°C without an additional heating element and even reaches up to 75°C with the backup function activated. The majority of the energy is regeneratively obtained from the ambient air, ensuring sustainable heat.

Functionality and technology

The heat pump uses the heat contained in the room air to efficiently heat the water. The integrated technology optimally compensates for falling temperatures, even at low outside temperatures. The 1.5 kW heating element plays a supporting role when hot water demand is particularly high.

A programmable digital interface with touch buttons allows the device to be individually adjusted to ensure comfort and efficiency are always in balance. With minimal power consumption and maximum safety, this heat pump guarantees consistent and clean hot water production.

Operating modes for individual comfort

The Daikin Altherma M HW 200 offers various operating modes that optimally adapt to different needs. In ECO mode, renewable energy is used exclusively, while in AUTO mode, the heating element provides support as needed to ensure the desired level of comfort at all times.

The BOOST function allows hot water to be prepared in the shortest possible time by combining both heating methods. This flexibility makes the device an ideal solution for households that place particular emphasis on efficiency and fast response times.

Energy efficiency and environmental friendliness

With a renewable energy share of 75% of the provided heating output, the heat pump is based on state-of-the-art environmental technology. This minimizes electricity consumption and creates a sustainable hot water system.

In addition, the integration of a photovoltaic system or solar thermal energy enables even more effective use of solar energy. This offers two benefits: a reduction in energy costs and an active contribution to environmental protection.

Easy installation and flexible use

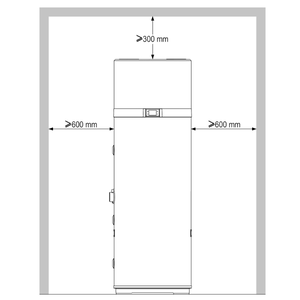

Thanks to the compact monoblock design and the pre-assembled components, the installation of the Daikin Altherma M HW 200 Uncomplicated and space-saving. The device can also be installed in unheated spaces such as garages or laundry rooms, requiring only small holes for the air intake and exhaust ducts.

The low weight and compact design allow for easy installation even in narrow passageways and tight doorways. This flexibility and simple installation make the heat pump an ideal choice for a wide variety of room concepts.

Safety and hygienic operation

The integrated Hot water tank, made of enameled steel, ensures the highest safety and hygiene standards. The anti-Legionella function ensures that potential risks are reliably prevented.

With its sophisticated design and advanced safety features, the Daikin Altherma M HW 200 offers reliable operation that meets the demands of modern households and those for sustainable technology.

Technical data

• Max. heating time: 6:27 hh:mm
• COP (hot water): 3.23
• Heating capacity (nom.): 1.34 kW
• Nominal air flow: 350 - 500 m³/h

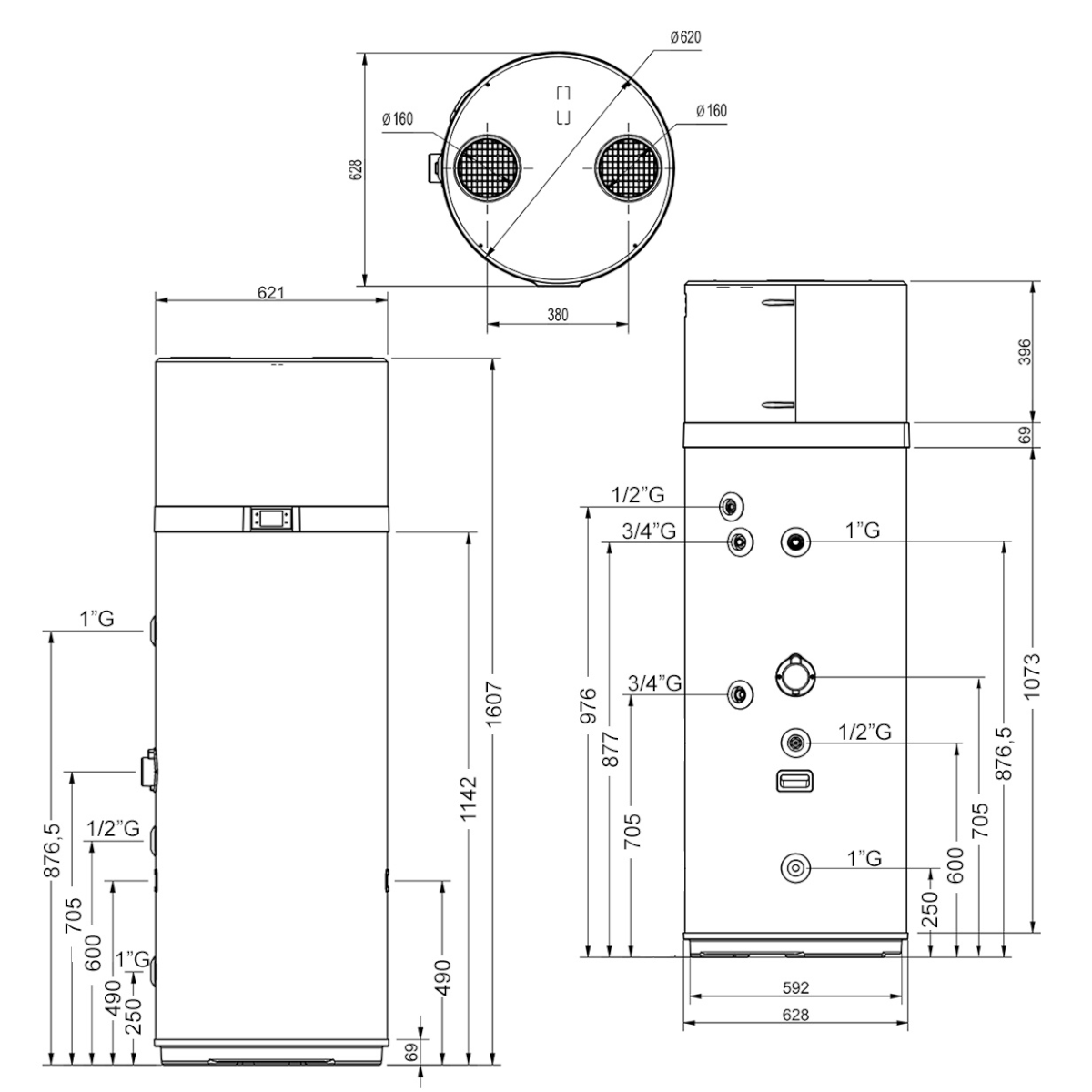

• Dimensions (H x Øtop x Øbottom): 1607 x 621 x 628 mm
• Weight: 85 kg
• Installation location: Indoor
• Defrosting method: hot gas
• Automatic start defrosting mode: - 5 °C
• max. system pressure: 7 bar
• Operating range: -7 to 43 °C
• Refrigerant: R134a
• Global warming potential (GWP): 1430 kgCO2-eq
• Filling quantity: 1 kg
• CO2 equivalent: 1.43 toCO2-eq
• Power supply: 230V/50Hz
• max. operating current: 8.5 A
• Power consumption: 26 W
• IP protection class: IP24
• Power of integrated heating element: 1.5 kW
• Material: enamelled steel
• Water volume: 192 liters
• Heat loss: 63 W
• specified load profile: L
• Energy efficiency class: A+
• Hot water temperature: 10 to 75 °C
• Hot water reference temperature: 52.5 °C
• Average climate nwh (water heating efficiency): 135%
• Sound power level (hot water preparation): 53 dB(A)
• Air intake: Ø 160 mm
• Exhaust air: Ø 160 mm
• Hot and cold water connection: 1"
• Condensate drain: 1/2"

Scope of delivery

• Daikin drinking water heat pump
• Assembly & Operating instructions

Download

• Data sheet
