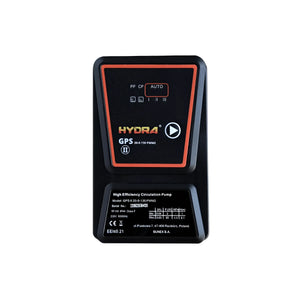

Solar pump Hydra GPS with external PWM signal for heating systems
Solar pump Hydra GPS II 20-8-130 PWM2
Solar pump with PWM control
The Hydra GPS is a high-efficiency, electronic pump designed for solar heating applications. The pump is controlled via an external PWM signal (continuously variable speed control), ensuring maximum energy yield.
Advantages:
|
Technical data: Solar pump Hydra GPS II 20-8-130
- Power supply: 220~240V, 50/60Hz
- Max. input power: 65W
- Liquid temperature: 2°C~110°C
- Ambient temperature: 0~+40°C
- Storage temperature: -35°C~80°C
- Protection class: IP44
- Max. pressure: 10 bar
- Max. lifting height: 8m
- Max. flow: 1.9m3/h at 5m H 0
- Connections: 1"
- Connection distance: 130mm
- Insulation class: F
- Weight: 1.4kg
