Microwicator Hoymiles HM-1200 for the balcony power plant
Hoymiles Microinverter HM-1200 Balcony Power Station

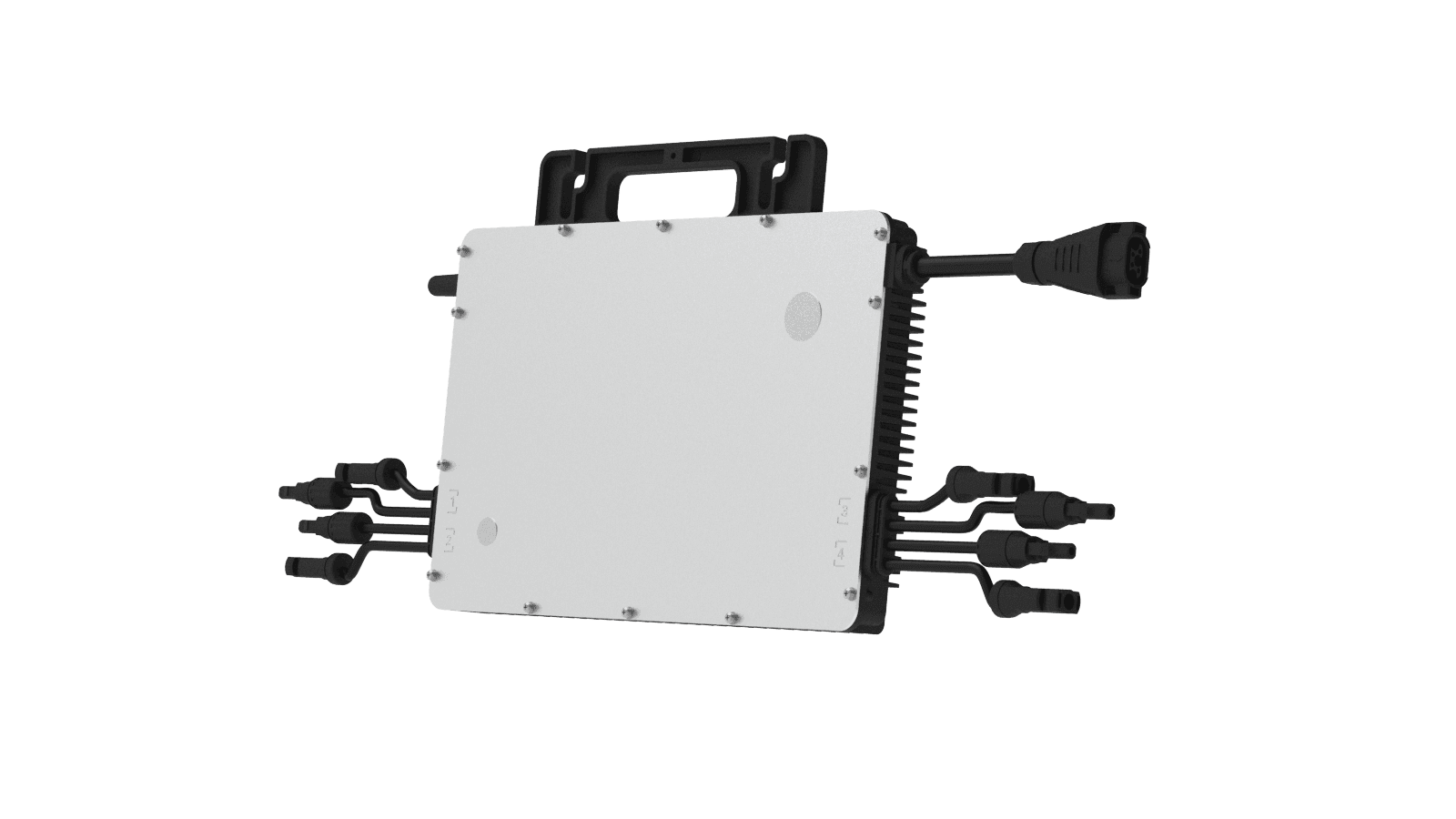

Microinverter Hoymiles HM-1200
The best in its class! The microinverter with dummy bar control for 4 solar panels
The overall system consists of one or more microinverters that convert direct current (DC) into alternating current (AC) and feed it into the public grid.
The microinverters are designed for connecting two photovoltaic modules.
The individual inverters operate independently of each other, which guarantees the maximum energy production of each PV module, as each inverter has its own MPP tracker.
Furthermore, monitoring of the individual modules is possible, which allows damage to be detected particularly quickly and optimizes the reliability of the entire system.
Perfect in combination with our JA Solar modules.
“The world’s first 2-in-1 microinverter” with an extremely wide operating voltage range at the DC input (16-60 V) and low start-up voltage (only 22 V)!!!
Hoymiles HM-600/HM-700/HM-800 2-in-1 microinverters are the perfect choice for PV systems with unequal number of panels with a CEC weighted efficiency of 96.50% and a peak efficiency of 96.70%.
Highlights/Special features: Microinverter for 4 solar panels
- Easy installation, simple plug and play
- Maximum output power of up to 600W/700W/800W; designed for PV modules with 60 or 72 cells
- Peak efficiency of 96.70%; CEC-weighted efficiency of 96.50%.
- Static MPPT efficiency of 99.80%; dynamic MPPT efficiency of 99.76% in cloudy weather.
- Power factor (adjustable) 0.8 inductive ...... 0.8 capacitive.
- External antenna for stronger communication with DTU.
- High reliability: NEMA6 (IP67) housing; surge voltage resistant up to 6000 V
- Nema outdoor (IP67) can therefore also be mounted outside.
- Cooling is naturally done via the environment - no fan is present
Nighttime power consumption (mW): <50 - Peak efficiency: 96.70%
- Power of the module typically consumed (W): 240 - 380
- Warranty: up to 25 years
Technical data: Hoymiles micro inverter HM-1200 balcony power plant
DC power (maximum input voltage): | 16 V - 60 V |
---|---|
Inputs per MPPT: | 1 |
Switch-on voltage: | 22 V |
European efficiency: | 96.70% |
MPPT voltage range: | 320W - 540W |
Phases: | 1 |
Product name: | HM-1200 |
Scope of delivery:
-
Hoymiles HM-1200 (without connection cable)
suitable accessories:
Connection cable Field Connector to Schuko plug:
- Hoymiles HMS connection cable in 5 meters
- Hoymiles HMS connection cable in 10 meters
- Hoymiles HMS connection cable in 15 meters
