Ultraflacher mini buffer memory for hydraulic soft 50 liters

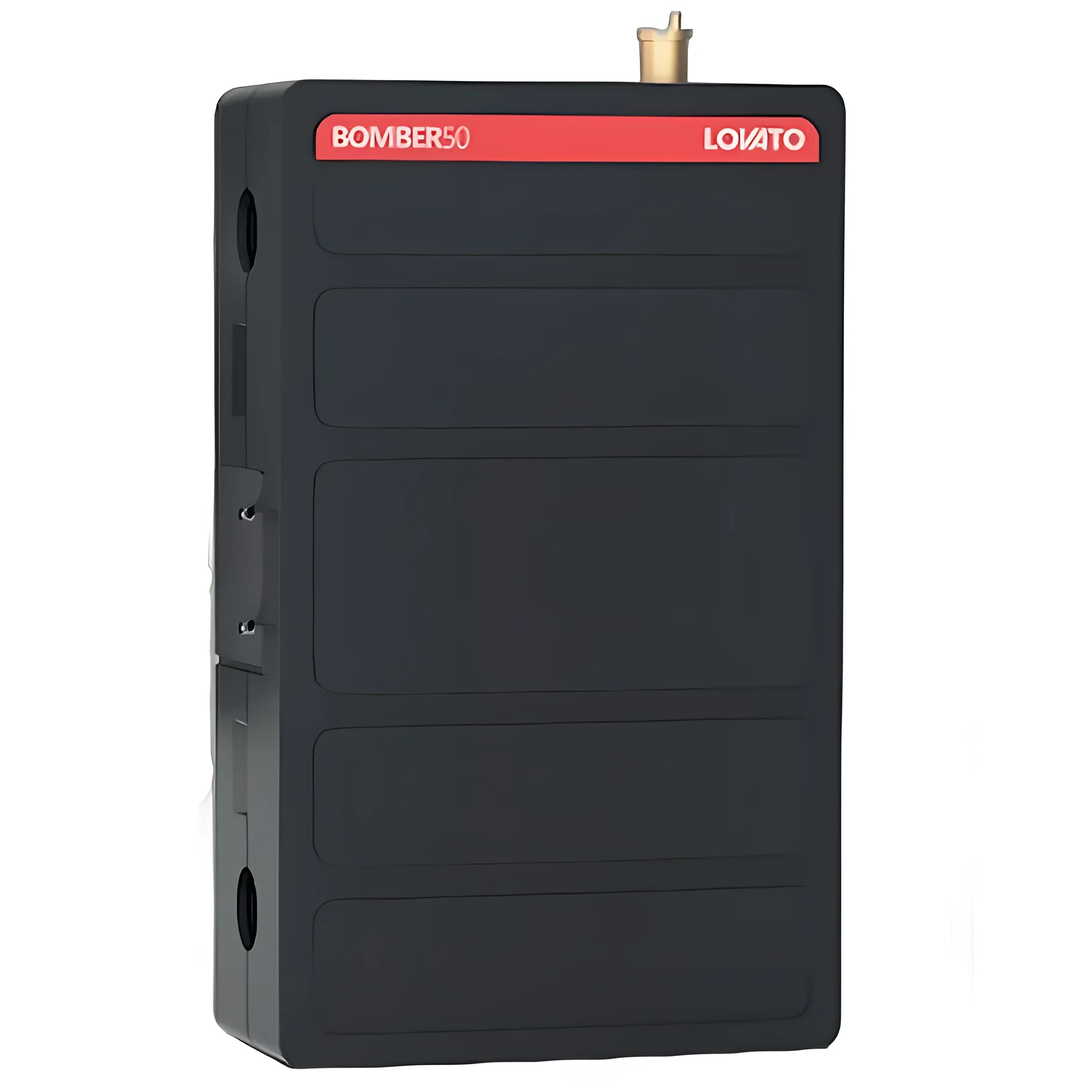

Mini heat pump storage tank wall storage 50 liters Lovato Bomber 50 C
Product overview
The Lovato Bomber 50 C is an ultra-slim 50-liter mini buffer tank specifically designed for use in compact heating and cooling systems. With a depth of just 240 mm, it reduces the front surface area by up to 30% compared to comparable solutions and is ideal for wall mounting in living areas or utility rooms.
Equipped with an internal membrane and a hydraulic separator, the storage tank also functions as a distributor for up to two heating or cooling circuits. Thus, it not only ensures efficient fluid stratification but also reliably coordinates the distribution of the heating or cooling media.
Technical details
The Bomber 50 C's housing is made of corrosion-resistant steel with a cataphoresis coating and is insulated all around with 40 mm thick EPP foam (λ 0.034 W/mK). This minimizes heat loss and makes it suitable for both hot and cold solutions.
With external dimensions of 520 × 860 × 240 mm (W × H × D) and a maximum flow rate of up to 4.5 m³/h, the storage tank impresses with low pressure loss and optimized hydraulic routing. An automatic vent valve and a temperature sensor shaft are factory-integrated to minimize installation effort.
Installation and assembly
Thanks to the special wall brackets, the Bomber 50 C can be quickly and securely mounted on the wall. The symmetrical arrangement of the connections (left/right, top/bottom) offers maximum flexibility in pipe routing and facilitates adaptation to existing heating or cooling systems.
The holes are sealed and insulated at the factory, eliminating the need for additional insulation. The compact design and clear connection layout ensure straightforward commissioning.
Energy sources and flexibility
The buffer storage tank allows the connection of up to two energy sources, such as a heat pump and a traditional boiler. The circuit dedicated to the heat pump ensures optimal utilization of the storage volume with a flow rate of up to 4.5 m³/h, increasing the operating times and energy efficiency of your system.
If no second heat source is available, an electric heating element with up to 3 kW can be integrated. This provides reliable additional heating and ensures operation even at low outside temperatures.
Accessory options
For even higher system performance, the Bomber 50 C can be combined with the MAGNETOR magnetic dirt separator. This accessory reliably removes metallic particles and protects your heating circuits from deposits.
In addition, a selection of electric heating elements (1.5 kW, 2 kW, 3 kW) as well as various caps and connection parts are available to optimally adapt the storage tank to your individual requirements.
Applications and advantages
Whether as a buffer tank in heating systems, as a hydraulic separator, or as a distributor for up to two circuits – the Lovato Bomber 50 C covers a wide range of application scenarios. Its ultra-flat design saves valuable space, while the sophisticated interior architecture ensures even layering and high efficiency.
The combination of modular connection options, robust construction and easy installation makes the Bomber 50 C the ideal solution for demanding heating and cooling installations in small to medium power classes.
Technical data
- Compact module 520 x 860 x 240 mm (reduces the front area by 30% compared to a solution with BOMBER 40)
- Contents: 50 liters
- Fully insulated, suitable for hot/cooling solutions (EPP λ 0.034 W/mk. 30g/l thickness 40 mm)
- Corrosion-resistant thanks to cataphoresis surface treatment
- Insulation of the holes by plugs
- Reduced pressure loss, flow rate up to 4.5 m³/h
- Versatile: vent, hydraulic switch/distributor up to 2 circuits
- Installation symmetry (left/right top/bottom)
- Temperature sensor shaft and automatic vent valve included
- Easy wall mounting using special brackets
- Prepared for magnetic sludge separator MAGNETOR
- Prepared for electrical resistance up to 3 kW
Scope of delivery
- Mini wall storage tank 50 liters
- automatic vent valve 1/2"
- Wall mount
- Immersion sleeve for temperature sensor 1/2"
- locking sleeve 1"1/2M
optional accessories
- MAGENTOR sludge separator
- Set: 2 caps 1"M/2 caps 1 1/4"M/2 connections 1"M 1"1/2F
- Heating element 1.5/2 or 3 kW
