Innovative wood carburetmoline mpm Wood Plus 26 kW for efficient combustion

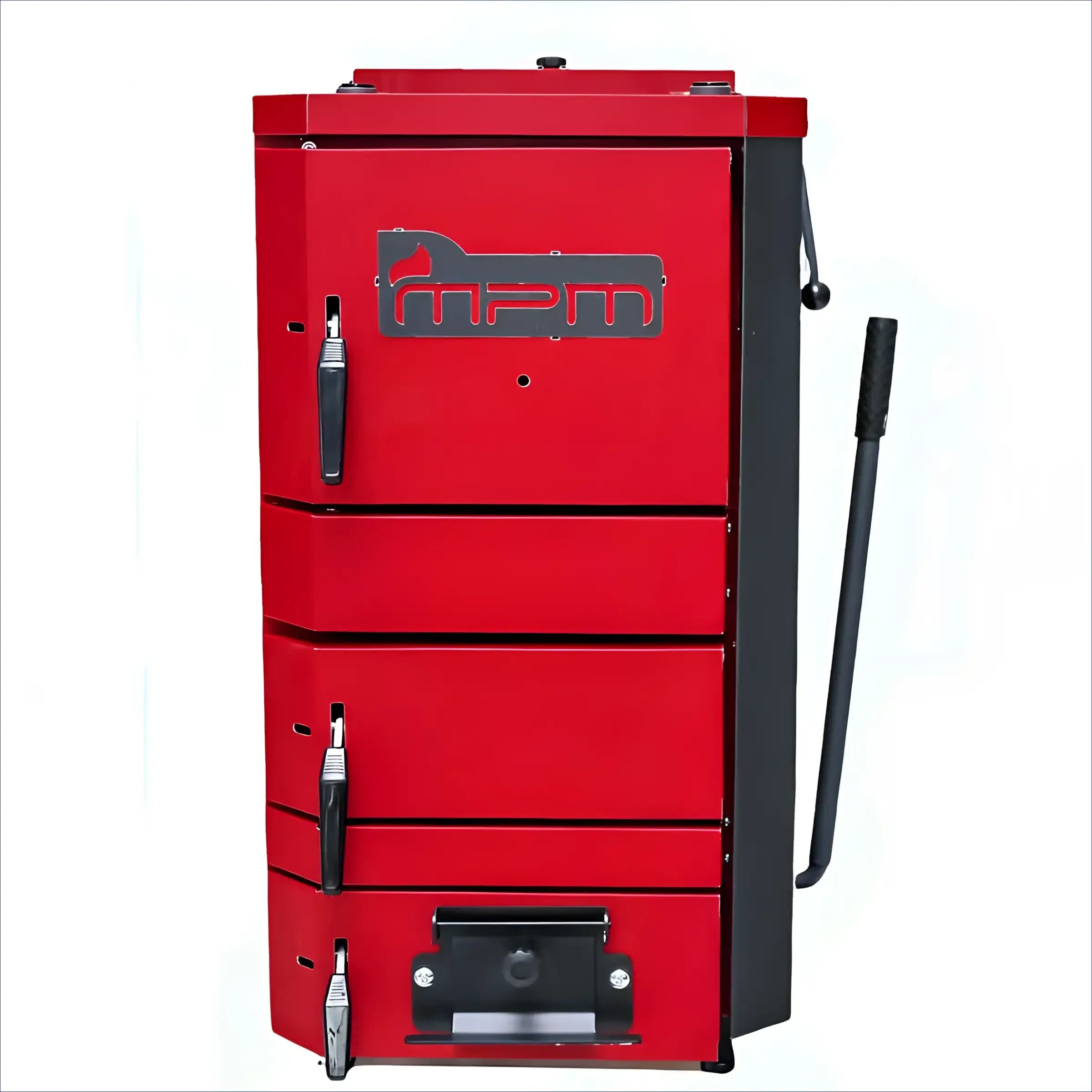

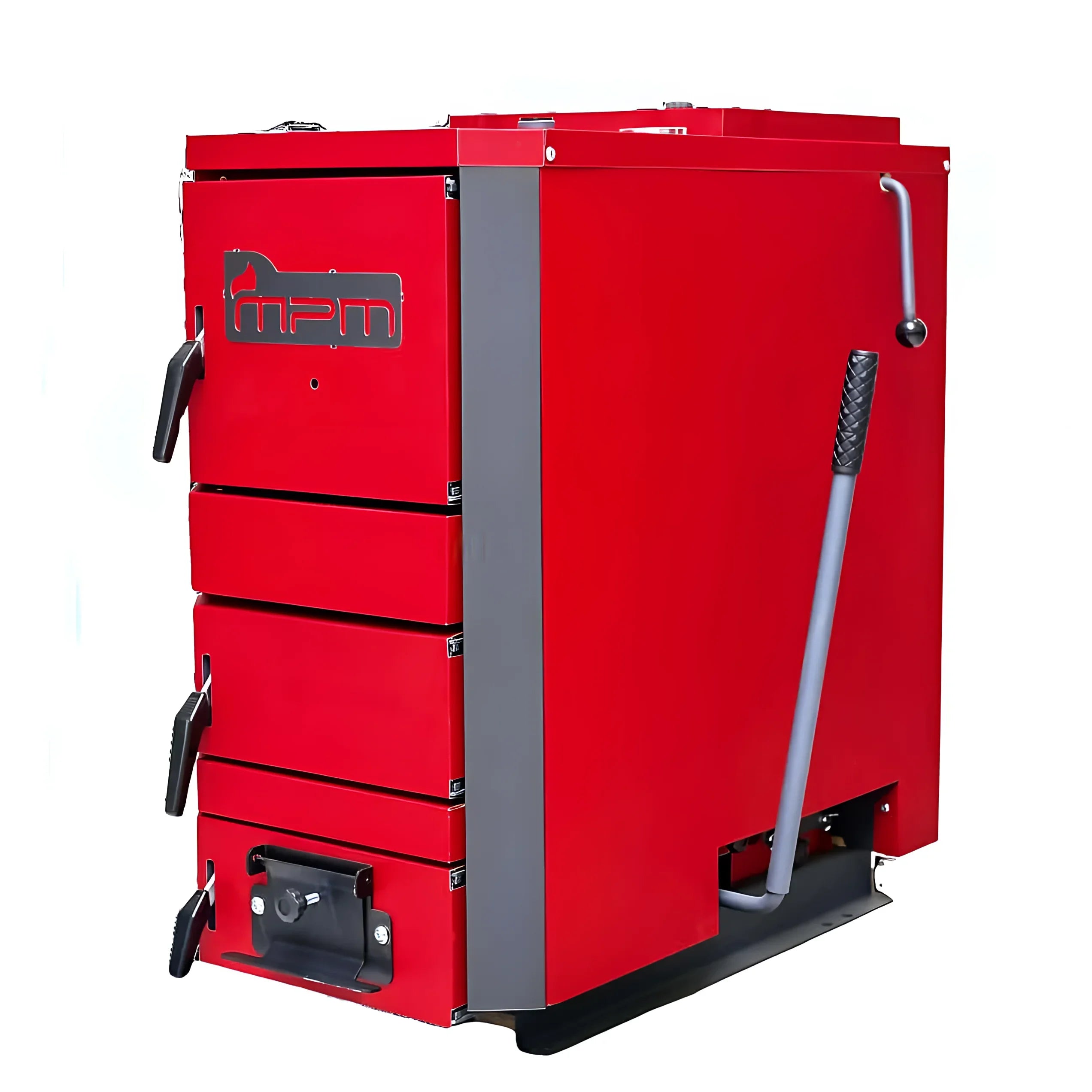

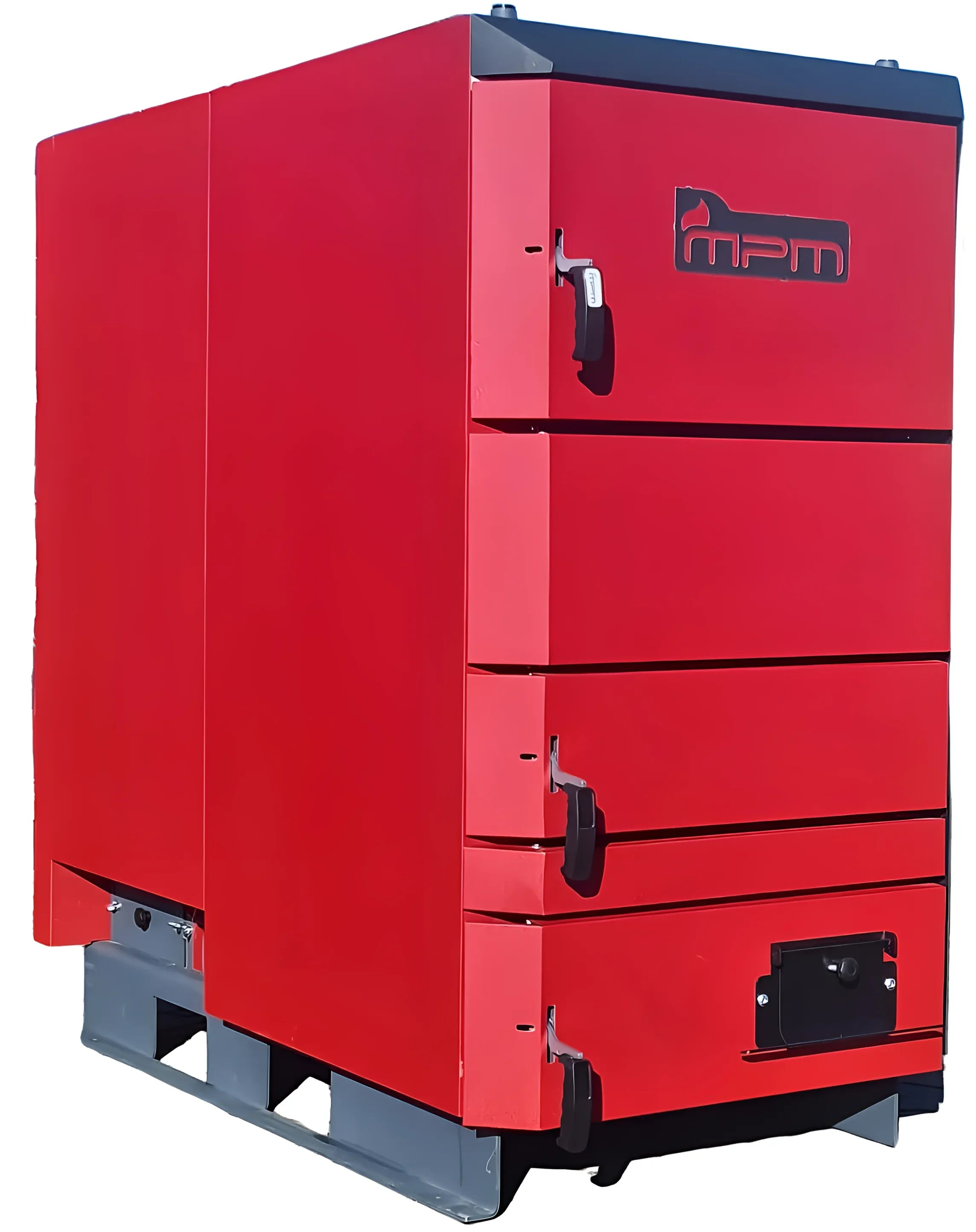

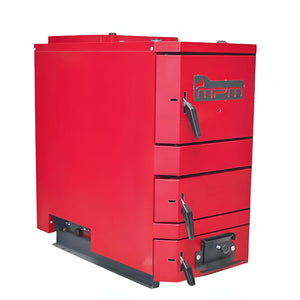

MPM Wood Plus 26 kW – Innovative wood gasification boiler

Product description

The MPM Wood Plus 26 kW is an advanced wood gasification boiler designed for use with solid fuel. Polish-made, the latest generation combines efficient combustion technologies with innovative safety features to provide you with a reliable and comfortable heating experience.

Also available in a special version for closed heating circuits, the boiler impresses with its robust construction and ease of use. This innovative boiler combines state-of-the-art technology with tradition, allowing you to benefit from high efficiency and minimal emissions.

Efficient combustion and low maintenance

The boiler's ceramic combustion chamber ensures almost complete fuel combustion, resulting in a significant reduction in emissions and fuel consumption. Clean combustion means fewer deposits, reducing maintenance and cleaning intervals.

This optimized combustion technology not only contributes to more environmentally friendly operation, but also to increased efficiency, which helps you save operating costs in the long term.

Innovative smoke extraction system

One of the outstanding features of the MPM Wood Plus is the automatic smoke extraction system in the loading chamber. This system prevents smoke from escaping when adding wood, keeping the boiler room free of unpleasant smoke.

Thanks to this technology, adding fuel is not only more convenient but also safer, without negatively affecting the combustion process.

Safety features in the closed heating circuit

The boiler is specially equipped for operation in a closed heating circuit. This version features additional thermal protection in the form of a DBV-1 valve, which provides reliable protection and ensures stable operation even under demanding conditions.

Environmental friendliness and economic efficiency

The sophisticated design and technologies employed in the MPM Wood Plus not only guarantee fuel savings but also contribute to environmental protection. The almost complete combustion significantly reduces the amount of ash and stubborn deposits.

Protected by patent applications Nos. P.437844 and P.444656, the boiler meets the strict requirements of the 5th combustion class according to PN-EN 303-5:2021 and has been awarded the Ecodesign Certificate. This underlines the high quality and efficiency of the device during operation.

Technical data

• Energy efficiency class A+

• Boiler class 5

• Nominal heat output 26 kW

• Train requirement 0.3

• Prescribed fuel wood

• Height 1183 mm

• Width 655 mm

• Depth 1220 mm

• Flue pipe connection 178 mm

• Weight 450.0 kg

Scope of delivery

• Solid fuel boiler MPM Wood Plus 26 kW
• Assembly and operating instructions

Download

• Operating instructions MPM Wood Plus 26 kW
• Product data sheet 2015 1187
• Product data sheet 2015 1189
• Eco Design Certificate
