Pellet boiler ATMOS PX (eligible for funding)

ATMOS PELLET BOILER – PX series

Note on funding!

The Atmos PX The series is eligible for funding from 15 kW without a particle separator. The 10 kW boiler is only eligible with a particle separator.

For this reason, we only offer eligible models without a particle separator online. (The exception is the 10 kW PX, which includes a particle separator to ensure eligibility.)

If you prefer the version with a particle separator, please contact us and we will create an individual offer for you.

Request a quote

ATMOS PELLET BOILER – PX series

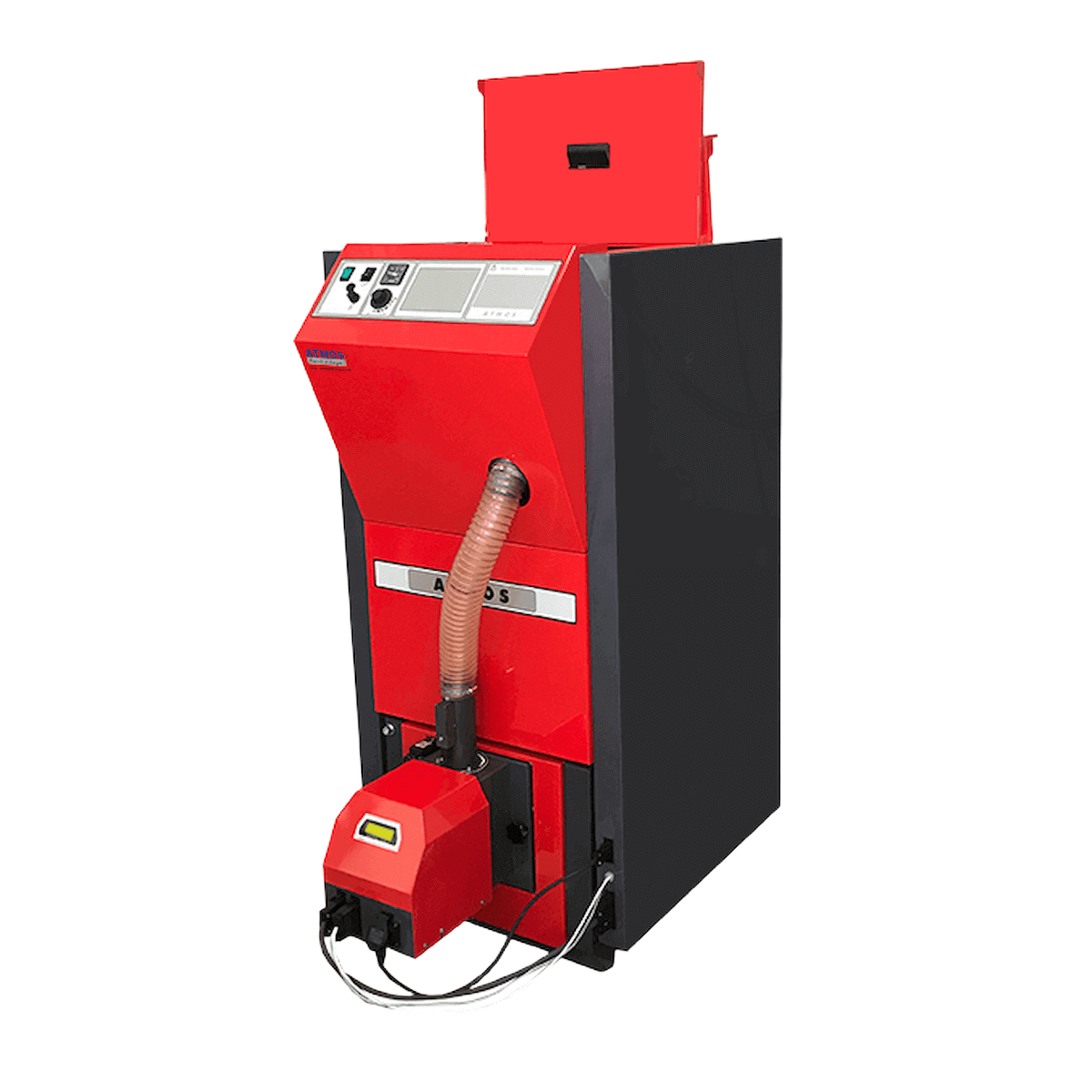

The PX15 and the PX20 have an integrated storage hopper of approximately 175 liters in the upper section. It is planned that this silo will be refilled by the operator with pellets from bags every 3 to 5 days, which is no problem given the filling height of approximately 1.4 m. Additionally, there is also the option of using the ATMOS The BasicOne suction station can be mounted on the silo, eliminating the need for manual refilling. This allows the integrated silo to be automatically filled from a main storage area located up to 15 meters away.

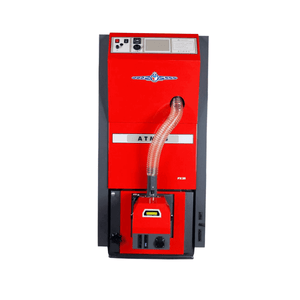

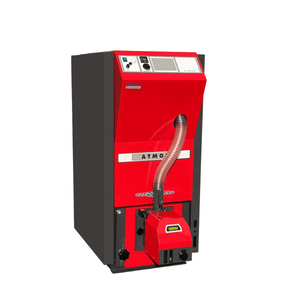

An internal conveyor screw transports and doses the pellets from the integrated silo to the ATMOS A25PX Pellet Burnerr. This differs in various details from the otherwise used A25 pellet burners, which Atmos has produced itself since 2010. For example, the filling pipe is straight and not angled as usual, and the software also differs in various basic parameters from the standard version. Otherwise, the pellet burner is identical to the other A25 - A25GSP - A45 and A85 burners. A major advantage that Atmos offers is that the installer is immediately familiar with each of our burners as soon as he knows just one. Since March, the new ATMOS PX10 and ATMOS PX25 have also been available. The smaller PX10 has a maximum output of 10 kW and the PX25 of 24 kW. These two pellet boilers are also approved by the Bafa subsidized if a buffer storage tank with a minimum boiler capacity of 30 liters/kW is installed at the same time. The new 2020 BAFA subsidy will subsidize the installation of a new pellet heating system by up to 45%.

equipment & Features

ATMOS PELLET BOILER – PX series

• Space-saving boiler design
• compact design with only 59 or 68 cm width
• Boiler made of high-quality 6 mm boiler steel
• with external heat exchanger cleaning
• The PX series pellet boilers are fully insulated, including the rear wall
• Thermal insulation with mineral wool insulation
• large integrated pellet storage tank
• compact boiler design
• Can be combined with Basic One intake
• optional: weather-compensated control for 1 or 2 mixer circuits, 1 hot water and solar
• best emission values
• user-friendly and quick boiler cleaning
• Recommendation: Buffer management module for optimal buffer loading in pellet operation
• 5 instead of 2 years warranty on boiler body when purchasing and using a Laddomat
• tested by TÜV DIN-EN303-5
• BAFA eligible

Against rising energy costs This can be counteracted, and of course, the finite nature of fossil fuels, climate change, and environmental protection can be considered. Many people are looking for an alternative to their existing oil or gas heating.Especially if they're already considering alternatives due to mandatory replacement of boilers over 30 years old. There are solutions that produce less CO2, are less affected by fluctuating prices, and don't compromise on comfort. The pellet heating system meets these requirements very successfully!

Technical data

• Energy efficiency class A+

• Boiler class 5

• Nominal heat output 25 kW

• Power range 4.8 - 26.2 kW

• Efficiency 91.7%

• Tensile requirement 17 Pa

• Prescribed fuel pellets

• Exhaust gas temperature 145 °C

• Exhaust gas mass flow 0.018 kg/s

• Height 1411 mm

• Width 674 mm

• Depth 1647 mm

• Flue pipe connection 150/152 mm

• Flue pipe outlet 1213 mm

• Weight 418.0 kg

Scope of delivery

• Pellet boiler Atmos PX25
• Monday- & Operating instructions
