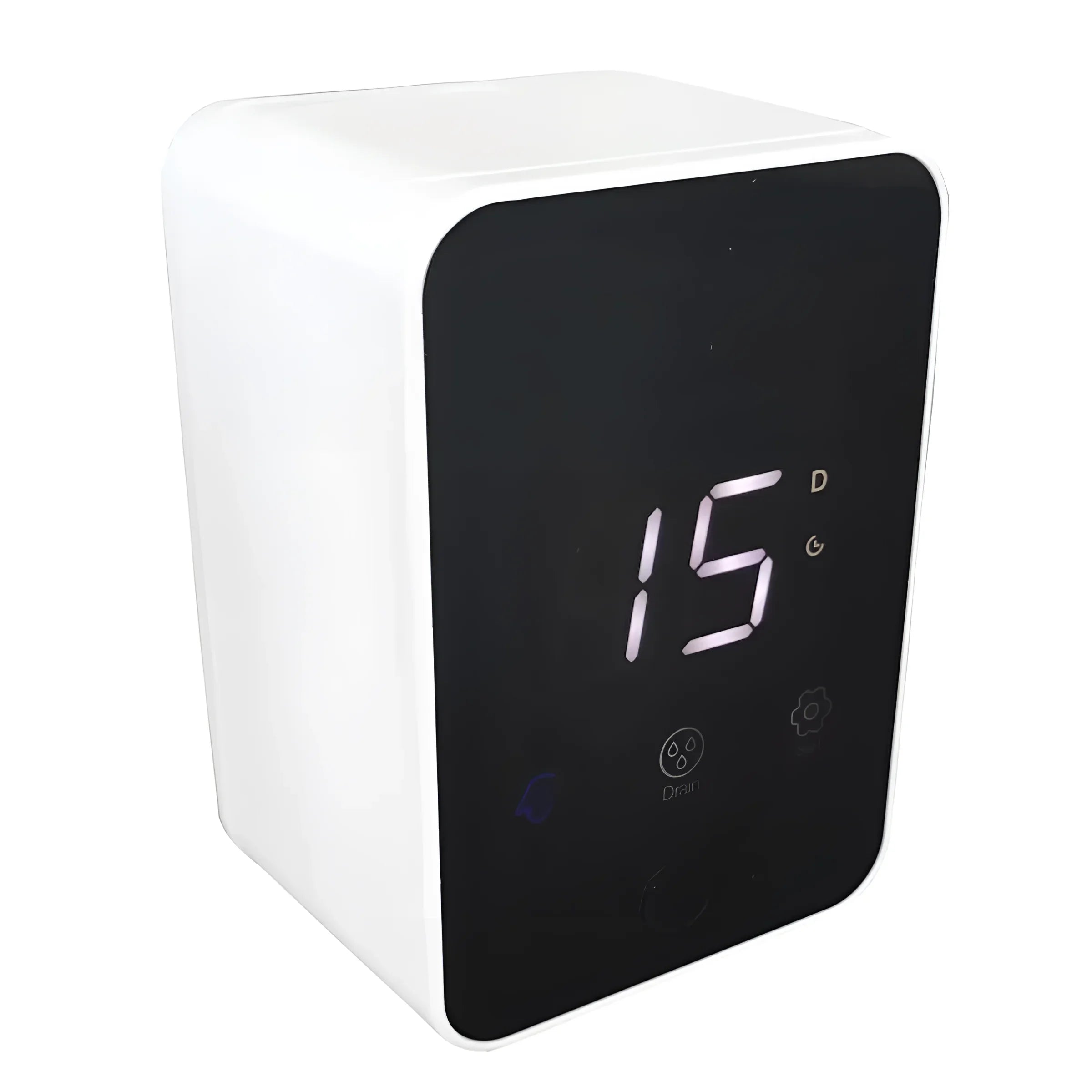

Backwash filter automatic for backwash filter 1 with pressure reducer and pressure gauge

Product description

The automatic backwash filter allows you to convert your backwash filter from manual to automatic operation. The device efficiently filters unwanted particles such as dirt, sand, rust, sediment, and suspended particles from the water. The automated backwash process reliably cleans the filter element's screen surface, ensuring long-term filter performance.

This solution is ideal for use in systems where continuous water quality is critical. The integration of a pressure reducer and pressure gauge allows for precise control of the water pressure and supports optimal filter system function.

Technical features and advantages

The automatic backwash filter offers preselectable settings for the backwash interval, both in terms of time and day of the week. This flexible programming ensures easy and customized adaptation to your operational requirements. Before initiating the backwash process, it also automatically checks whether the backup battery is sufficiently charged to ensure operation can continue even in the event of a power failure or the power supply is not in use.

Reliable monitoring and the automatic backwash cycle ensure the filter system operates optimally at all times. The integration of the pressure reducer and pressure gauge ensures that the water pressure is always correctly adjusted, resulting in improved filtration results and more efficient use.

Easy installation and operation

Converting from a manual to an automatic backwash filter is incredibly easy. It only requires a few simple steps: After shutting off the water pressure and removing the manual components, the automatic system is installed and secured as shown. Finally, the desired backwash interval is programmed to start automatic operation.

The backwash process can also be initiated manually to ensure that the connection to the sewer water supply has been properly established. This function allows you to intervene flexibly as needed and increase operational safety.

Reliability and safe handling

The automatic system not only ensures continuous water filtration but also guarantees the highest safety standards. The integrated backup battery power reserve check ensures that the backwash process can be completed reliably even in the event of unexpected power outages.

Installation requires a qualified specialist to ensure proper assembly and subsequent operation. Furthermore, the operating instructions provide detailed instructions and installation guidelines to ensure compliance with all safety aspects and technical requirements.

Technical data

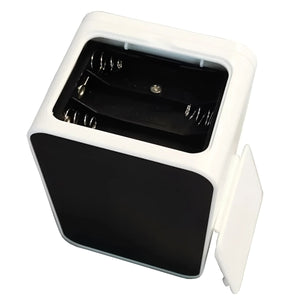

• The automatic backwash is battery operated with 3 x AA batteries (batteries are not included) or with a power connection with 100-240V 50/60Hz
• 1-99 days and 1-24 hours can be set
• The backwash length can be set to 15, 30, 45, 60 and 90 seconds
• Manual, immediate backwashing is possible at any time

Scope of delivery

• 1 x automatic backwash

Download

• Operating instructions
