AMX flat collectors set for sustainable heat generation

Solar package AMX flat collectors 4.06 m² with mounting for flat roof

The AMX flat-plate collector solar package, with a total area of 4.06 m², offers a state-of-the-art and efficient solution for harnessing solar energy. Whether for residential or commercial applications, this system enables sustainable heat generation and actively supports climate protection. Thanks to the components included in the package and the innovative technologies, you receive a complete system for a future-proof energy supply.

Benefit from government subsidies

The solar package is eligible for funding under the Federal Funding for Efficient Buildings – Individual Measures (BEG EM). This allows you to for purchase and installation up to 30% of the costs get reimbursed. Under certain conditions, such as when combined with other efficiency measures, a reimbursement of up to 70% is possible. This means the investment pays for itself in a short time, and you benefit from lower energy costs at the same time.

We recommend checking the funding options in our information section in advance. Our guide will help you meet all relevant application requirements in a timely manner.

Innovative technology for maximum efficiency

The AMX flat-plate collectors utilize a sophisticated copper pipe system in the absorber, which makes heat transfer particularly effective. This innovative design ensures high energy yield and a long service life. The recovered heat is stored in combination with a combined hygienic storage tank or domestic hot water tank, ensuring it is available at all times. A differential temperature controller intelligently controls operation and optimizes interaction with the circulation pump.

Thanks to advanced technology, you can get maximum performance from your system even in low light conditions or cooler temperatures. This ensures reliable operation regardless of the season.

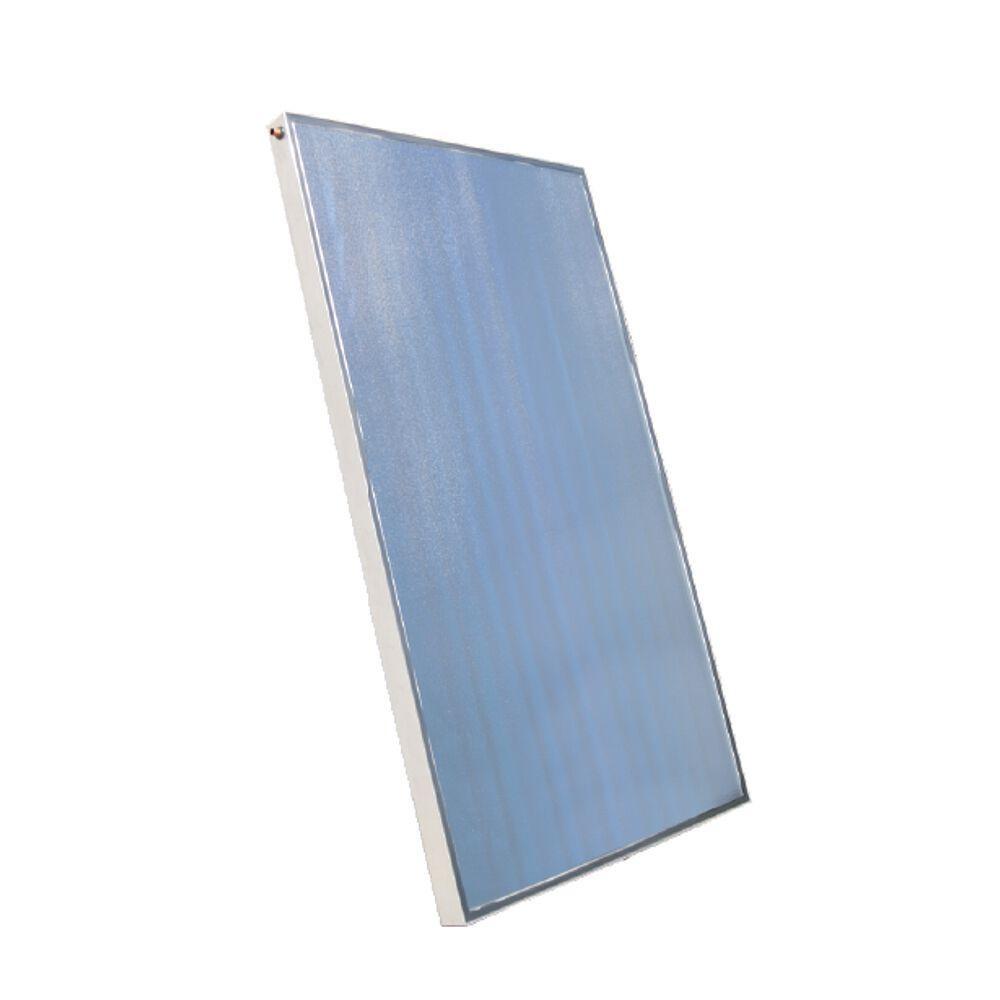

Robust and durable collector frame

The collector frame of the flat-plate solar collector is made of high-quality aluminum, processed using modern bending technology. The frame is manufactured from a single piece and has no joints. This guarantees a high level of airtightness, ensuring reliable operation for many years.

The collectors' appearance is as impressive as their functionality. With their combination of aluminum-colored finish and a stylish navy blue and black absorber coating, the system fits virtually any building type and design requirement.

Excellent efficiency in all weather conditions

Whether summer or winter, thanks to their special thermal insulation, AMX collectors deliver consistently high performance. Their innovative design minimizes heat loss, maximizing efficiency even in cold or cloudy weather conditions. This makes the system an ideal choice for a variety of climates and environmental conditions.

Easy installation for flat and pitched roofs

The mounting bracket included in the package was specifically designed for flat roofs, but installation is also possible on many other roof types. Specially designed aluminum mounting units ensure quick and secure attachment, making the system ideal for both new construction and renovations.

The detailed assembly instructions also simplify installation and enable tradespeople to install the system efficiently.

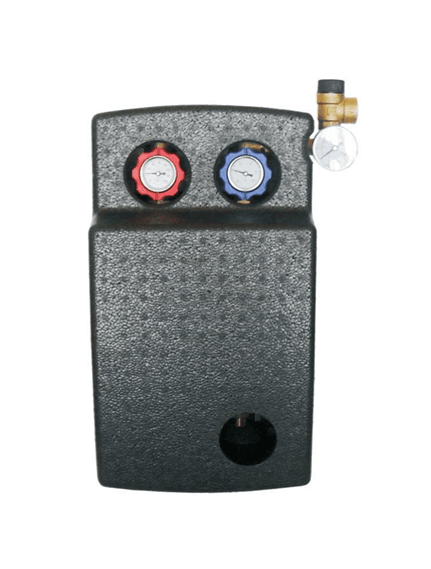

Two-way solar station GPS PWM Hydra – Intelligent control

The GPS PWM Hydra solar station is the heart of the heat circulation system and ensures precise control of the system. The integrated pump with PWM technology ensures even circulation of the heat transfer medium, enabling significant energy savings. The compact design and user-friendly features such as a venting device, pressure gauge, and safety valve make the solar station particularly easy to maintain.

Thanks to a maximum temperature tolerance of up to 110 °C and an operating pressure of up to 6 bar, the GPS PWM Hydra offers reliable performance even under demanding conditions.

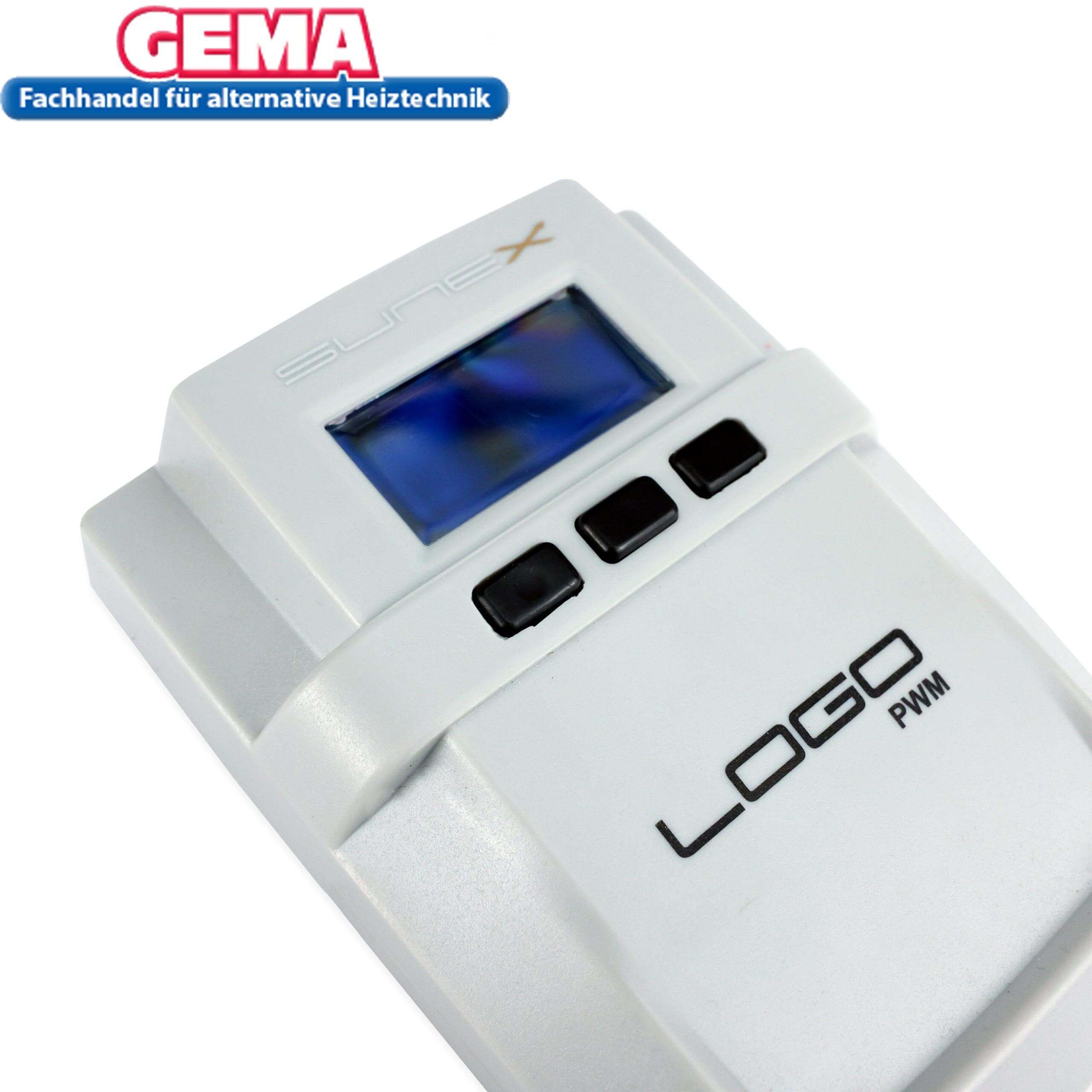

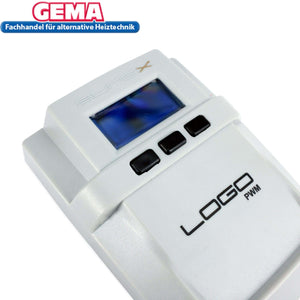

Solar controller LOGO PWM – precision meets user-friendliness

The LOGO PWM solar controller is the key to efficient control of your solar thermal system. With an intuitive LCD display, you have full control over the system at all times. The innovative PWM (pulse width modulation) technology precisely regulates the pump speed based on the temperature difference, ensuring optimal operation.

Another highlight is the integrated backup storage, which saves all settings and guarantees maximum operational reliability – even in the event of a power outage. This ensures your system remains reliably operational and adapted to your specific requirements.

Advantages of the LOGO PWM solar controller

• Efficient control through innovative PWM technology
• Intuitive operation thanks to large LCD display
• Backup system for maximum security
• Universal applications for solar and heating systems

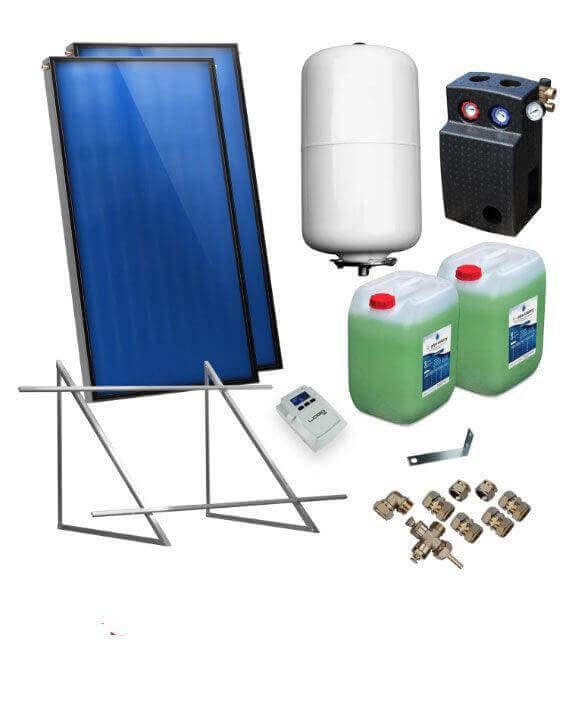

Scope of delivery: Everything for the perfect installation

The solar package contains all the necessary components required for a trouble-free installation on your roof:

• 2 x AMX 2.0 flat-plate collectors with an area of 4.06 m²

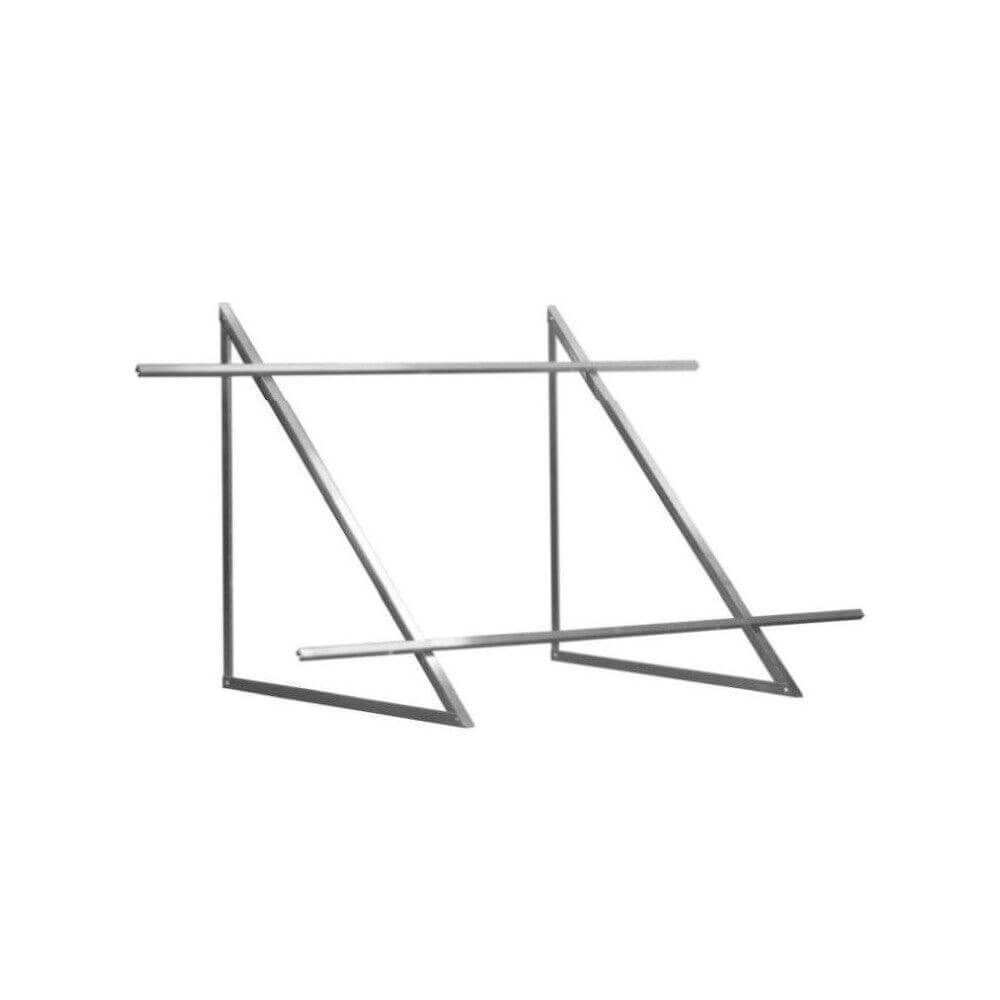

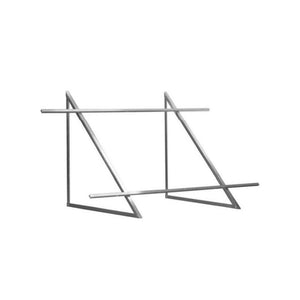

• Elevation for flat roofs

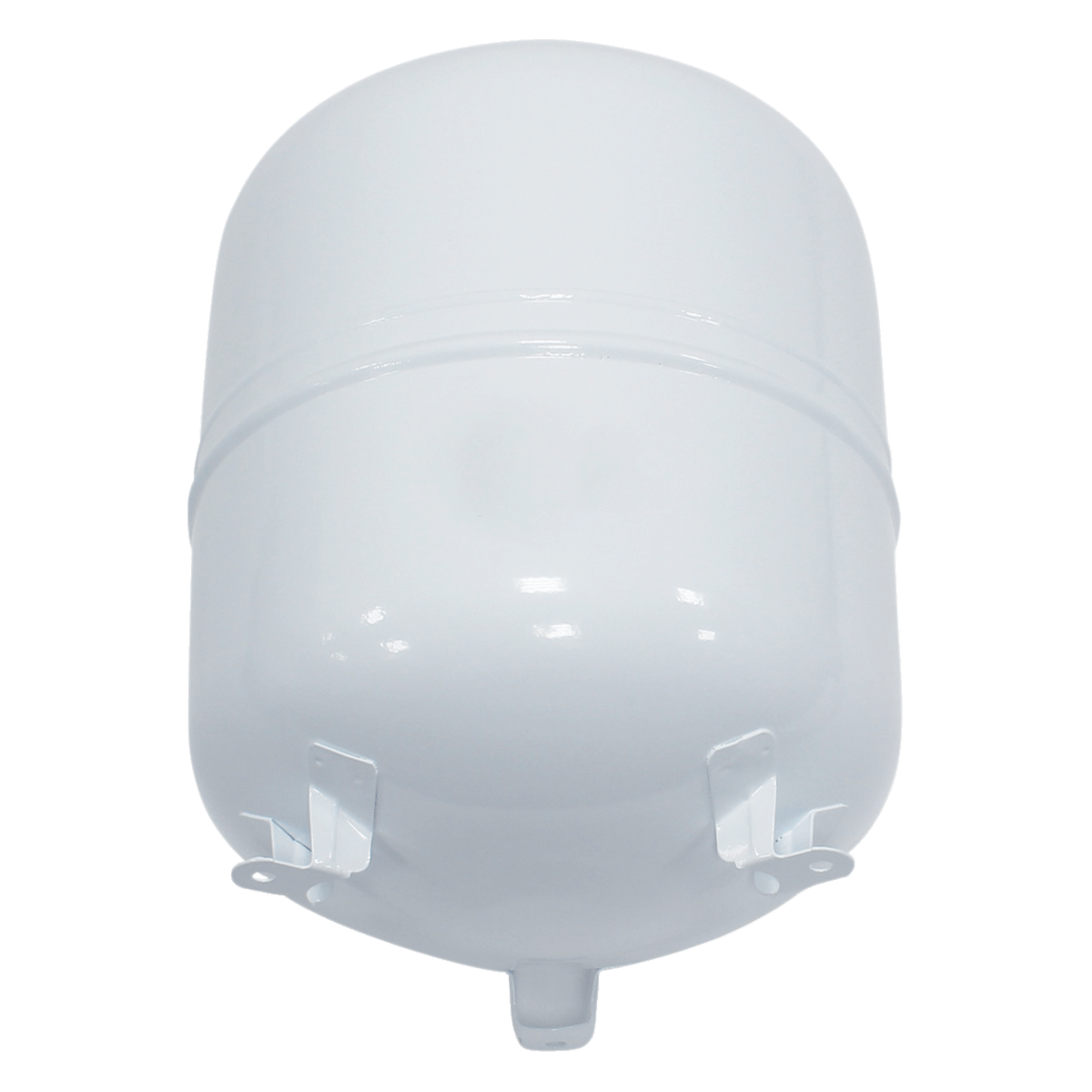

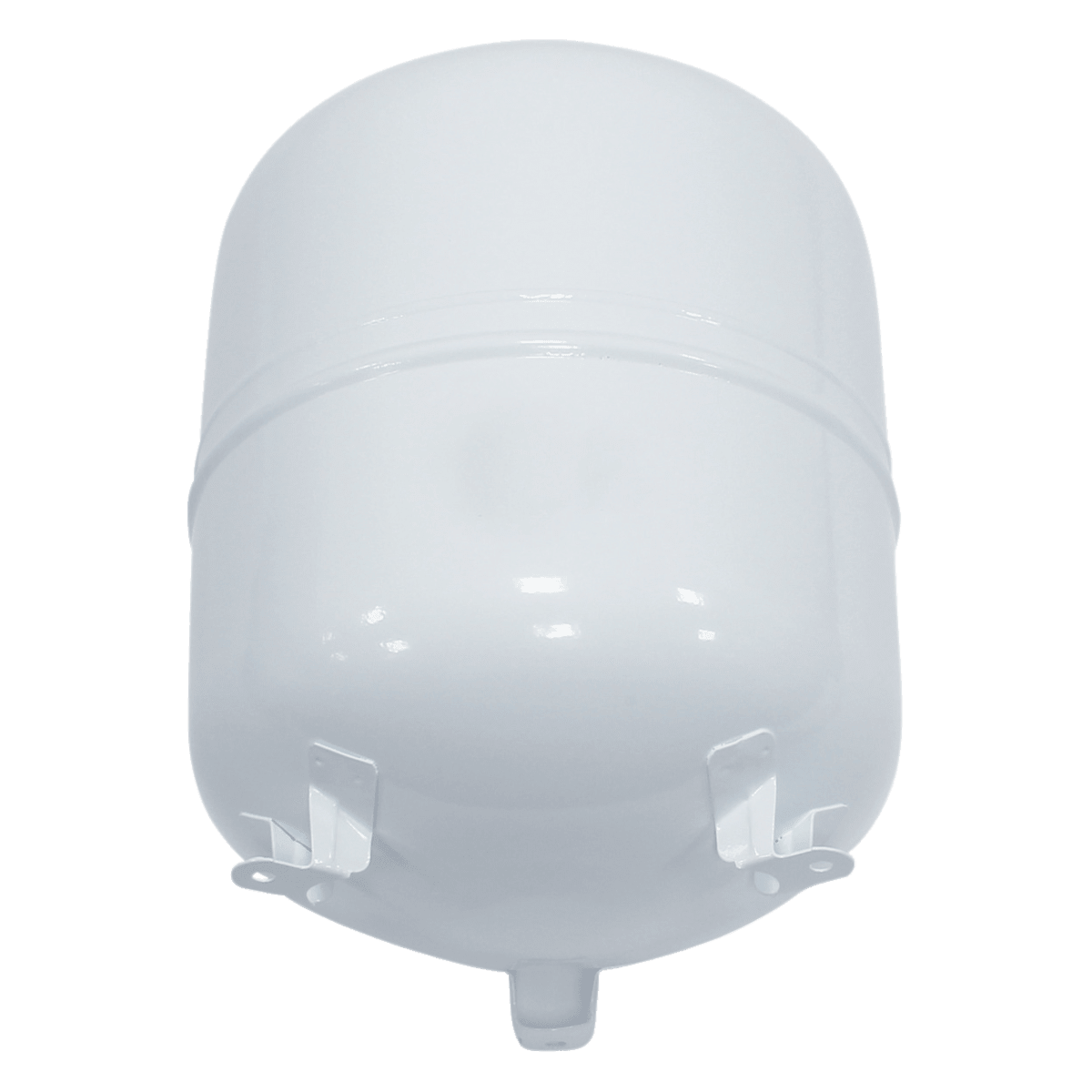

• Solar expansion tank with a volume of 18 liters

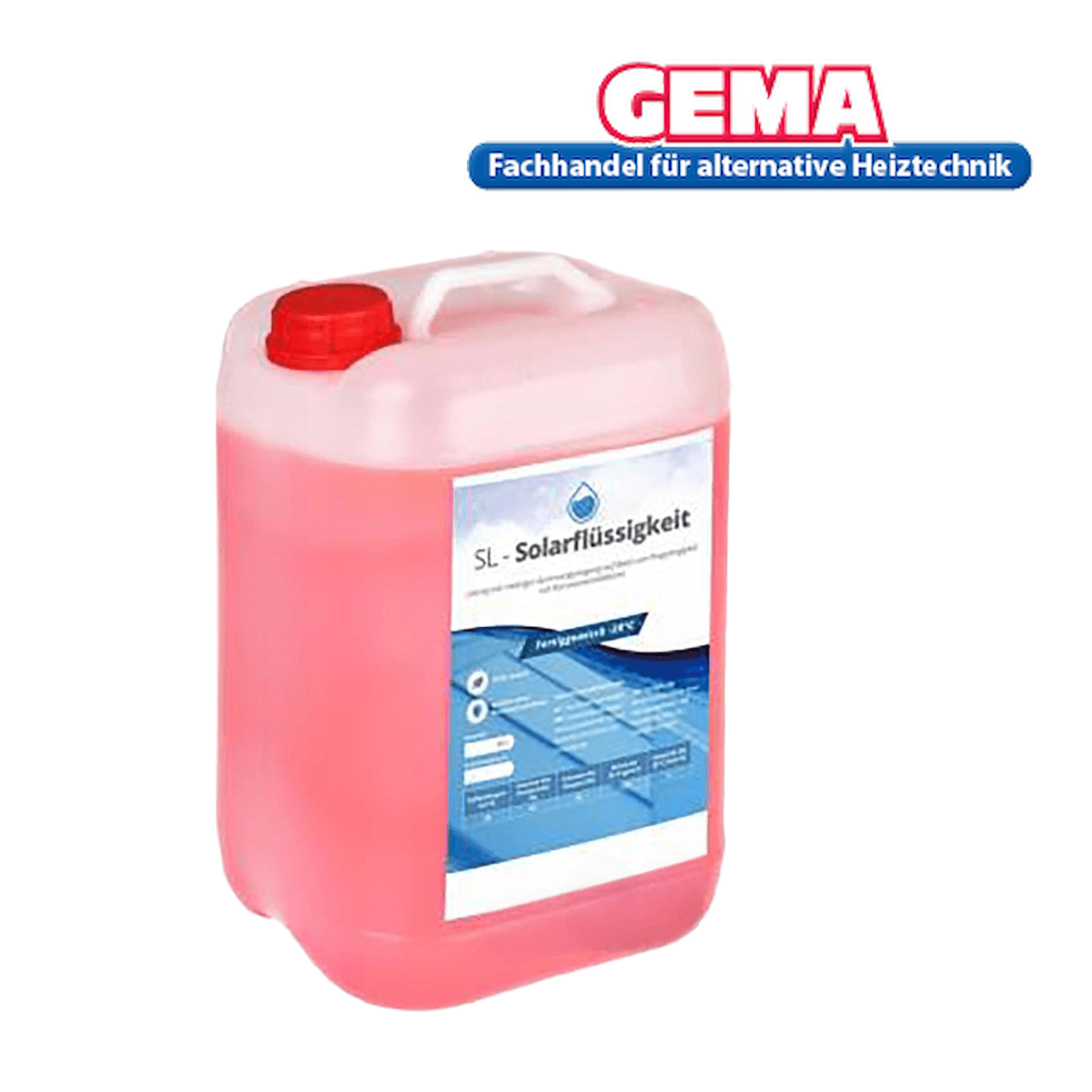

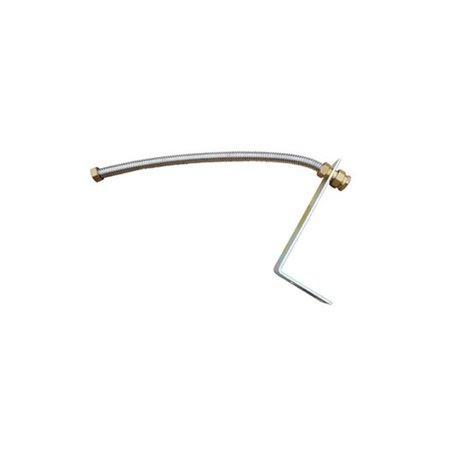

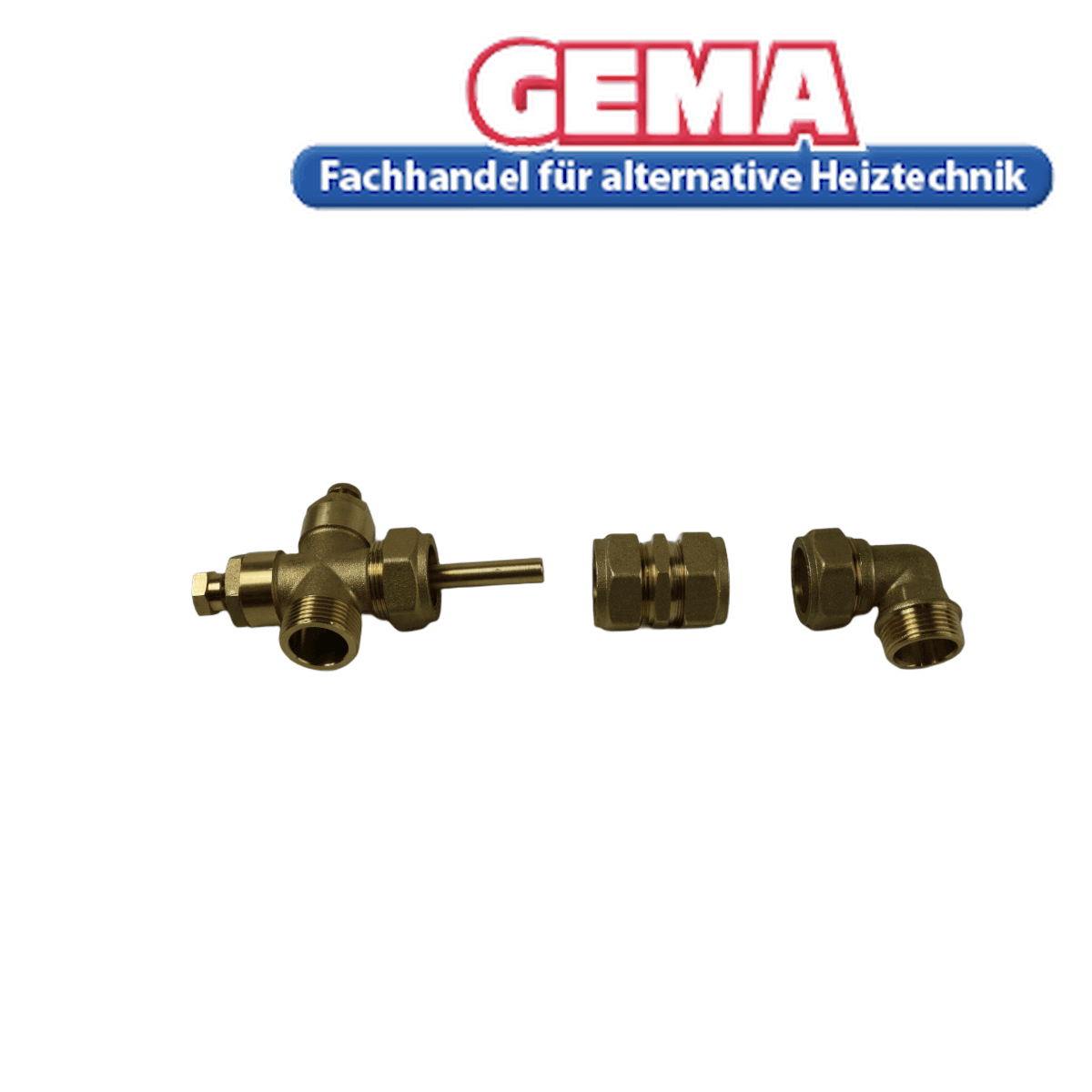

• Solar fluid and collector connection set
• Two-way solar station GPS PWM Hydra
• Solar controller LOGO PWM
• Detailed operating and assembly instructions

Summary – Your benefits at a glance

With the AMX flat-plate collector solar package, you're investing in a high-quality, high-performance system that impresses with its reliability and environmental friendliness. From the innovative collector technology to the precise control of the solar station and the user-friendly controller – this package covers all the requirements of a modern solar thermal system.

Take advantage of government subsidies, reduce your energy costs, and actively contribute to the energy transition. With the AMX solar package, you're investing in a sustainable future.

You also need:

• Solar cable DN16 or DN20 in suitable length
• optional Roof penetration

Download

• Product data sheet Collectors
