Solar package AMX 2.0 for hot water preparation on inclined roofs

Solar package AMX 2.0 – flat-plate collectors 8.12 m² with mounting for pitched roofs

The AMX 2.0 solar package offers a state-of-the-art solution for environmentally friendly energy generation on pitched roofs. With an area of 8.12 m² and a specially designed mounting system, the system is ideal for roof pitches between 25 and 60 degrees. Thanks to advanced technologies and durable materials, the system delivers maximum energy yield – regardless of weather conditions.

State funding – secure up to 70% subsidy now

The solar package is eligible for funding in accordance with the Federal Funding for Efficient Buildings – Individual Measures (BEG EM). Funding of up to 30% for purchase and installation of the system. Under certain conditions, such as when combined with other efficiency measures, up to 70% of the costs can be subsidized. This means the investment pays for itself in a very short time.

Use our informative guide to heating subsidies to learn everything you need to know about funding options and application procedures. This way, you can secure the maximum possible support for your project in a timely manner.

Powerful flat-plate collectors AMX 2.0

The AMX 2.0 flat-plate collectors impress with their first-class technology. The sophisticated copper tube system in the absorber achieves excellent heat transfer, thus optimizing energy yield. Even at low temperatures or with low solar radiation, the system operates efficiently and reliably.

In combination with a combined hygiene storage tank or domestic hot water storage tank, the system stores the generated heat so it can be used at any time. Intelligent control via the differential temperature controller ensures optimal system operation.

Robust design for durability and tightness

The collector frame is made of high-quality aluminum and manufactured using an innovative process. Being constructed from a single piece, there are no joints, ensuring a permanent seal. This ensures high reliability and durability for many years.

The collectors are also visually impressive. The combination of a sleek, aluminum-colored frame and the attractive navy blue and black coating of the absorber complements virtually any architectural style.

Maximum efficiency under all weather conditions

The innovative thermal insulation of the AMX 2.0 collectors minimizes heat loss and ensures excellent performance – whether in sunny or cloudy skies. Furthermore, the system is resistant to extreme temperatures, making it ideal for a variety of climates.

Simple and flexible installation

The included mounting kit was specifically designed for pitched roofs, but can also be adapted for other roof types. The aluminum supports ensure stability and enable quick and easy installation, saving time and effort.

Detailed installation instructions guide tradespeople safely through the installation process. This makes the system easy to use in both new construction and renovation projects.

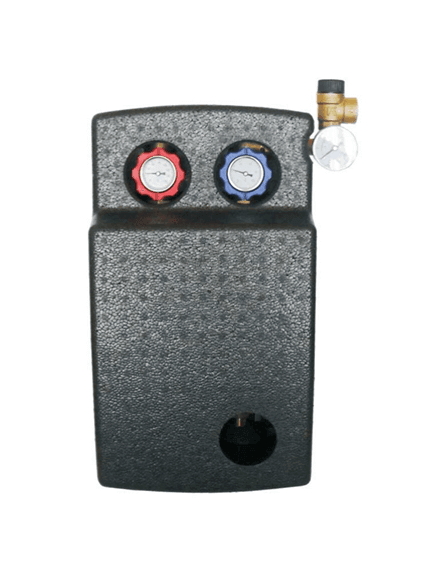

Two-way solar station GPS PWM Hydra – Efficient control

The GPS PWM Hydra solar station is a central component of the system. It ensures precise circulation of the heat transfer medium, guaranteeing even and energy-saving heat distribution. Thanks to modern PWM (pulse width modulation) technology, the pump speed is optimally regulated.

Additional features such as a venting device, a pressure gauge, and a safety valve facilitate maintenance. The solar station proves to be extremely robust, even at high temperatures of up to 110 °C and an operating pressure of up to 6 bar.

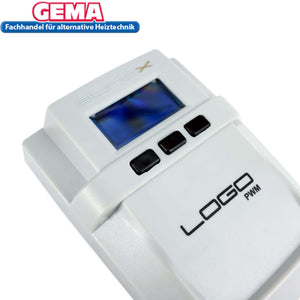

Solar controller LOGO PWM – Comfortable control

The LOGO PWM solar controller enables precise control of the solar thermal system. All operating parameters can be easily monitored and adjusted via a large, user-friendly LCD display. The innovative PWM technology ensures efficient control of the pump speed based on temperature differences.

An integrated backup system saves all settings, ensuring no data is lost even in the event of a power outage. This ensures reliable operation at all times.

Comprehensive scope of delivery for a complete installation

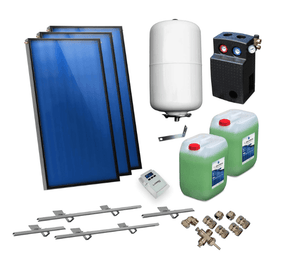

The AMX 2.0 solar package is delivered as a complete set containing all essential components:

• 4 x AMX 2.0 flat-plate collectors

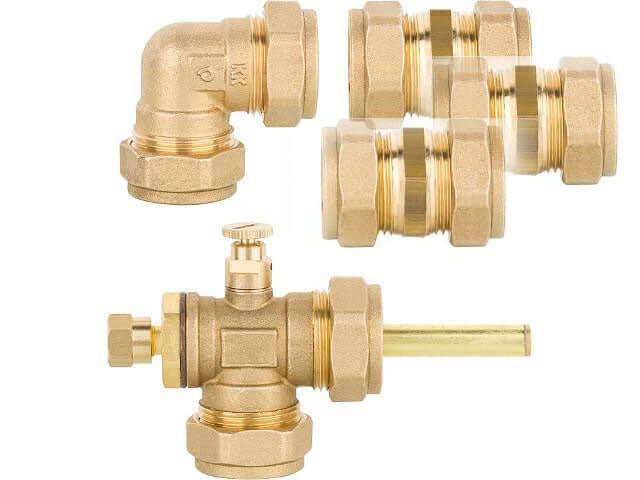

• Connection set for 4 collectors

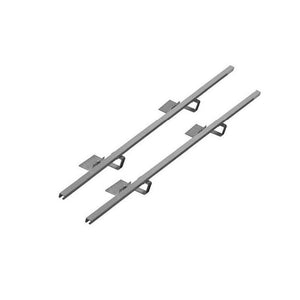

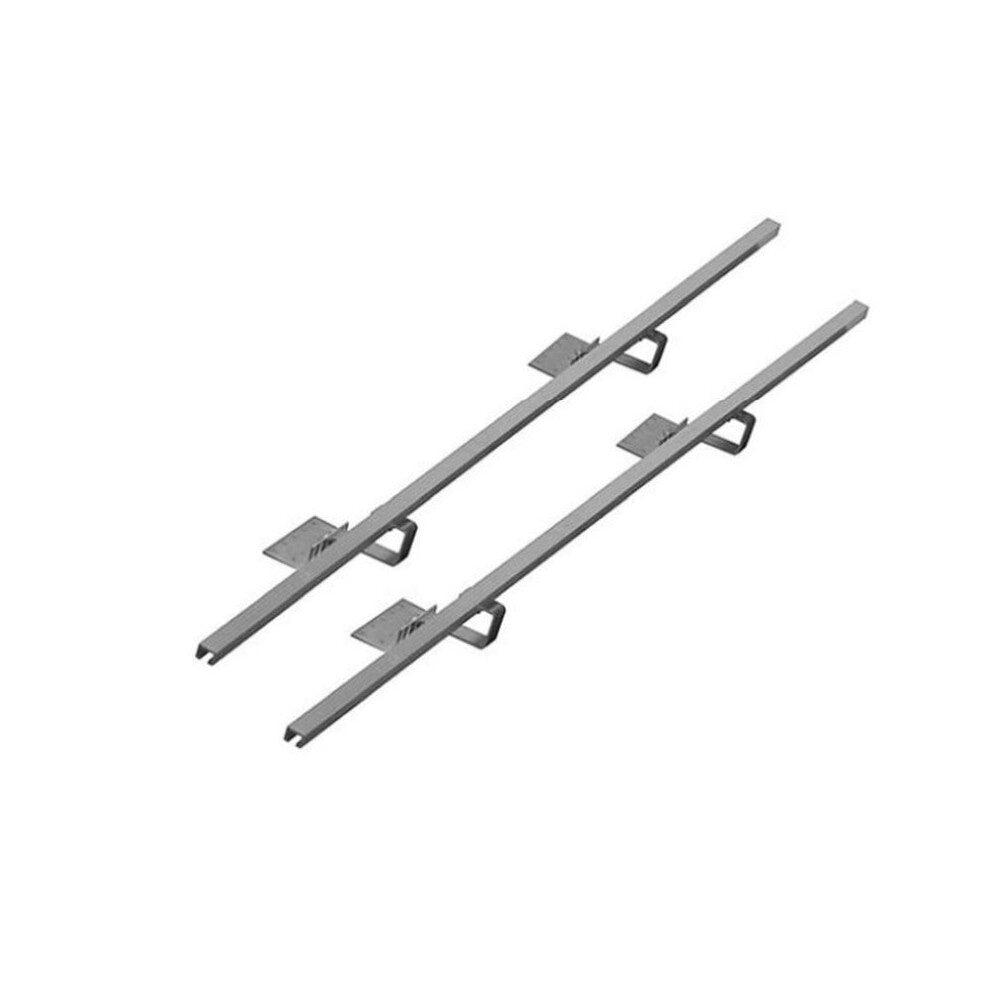

• Mounting kit for 4 collectors

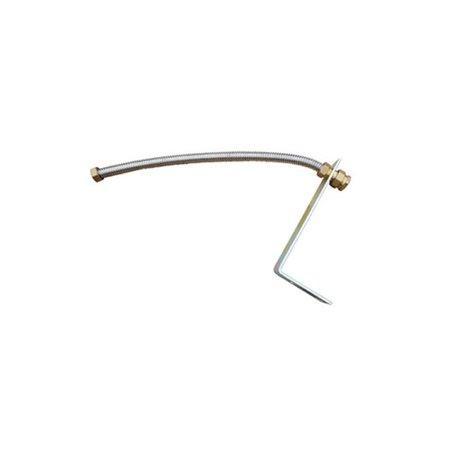

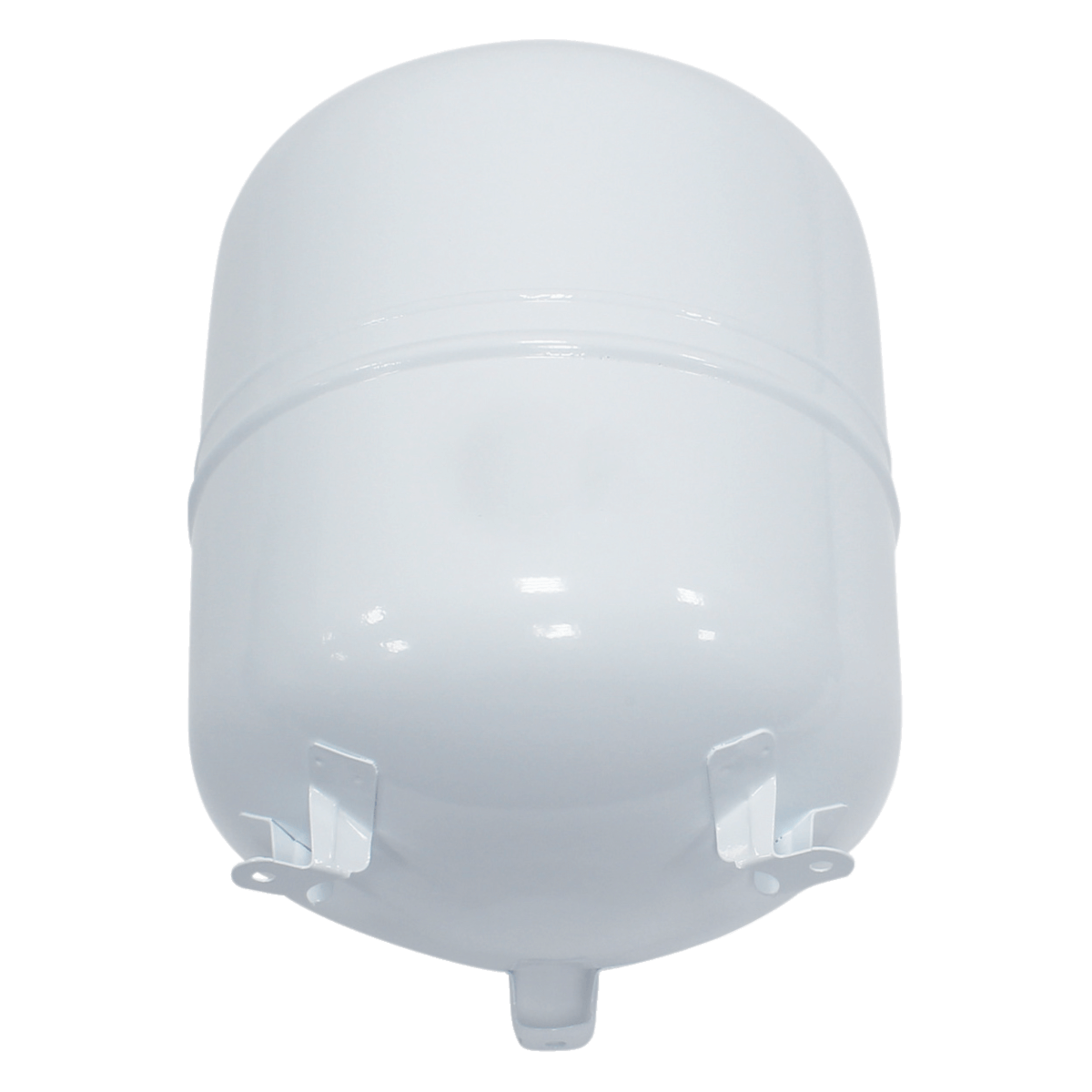

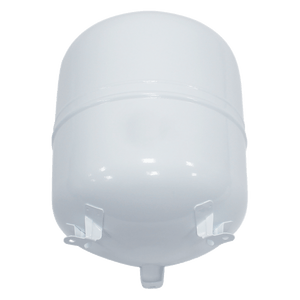

• Solar expansion tank (24 liters) including bracket
• Sunex solar station GPS Wilo
• Sunex solar control LOGO PWM

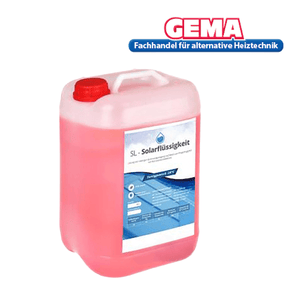

• 2 x 20 liters of solar fluid

With this comprehensive set, you are perfectly equipped to easily install and commission your own solar thermal system.

Get your environmentally friendly energy source now

The AMX 2.0 solar package combines innovative technology, maximum efficiency, and easy installation into a future-oriented solution for your home. Benefit not only from lower energy costs but also from government subsidies. Switch to a sustainable energy supply now and do your part to protect the environment!

You also need:

• Solar cable DN16 or DN20 in suitable length
• optional Roof penetration

Download

• Product data sheet Collectors
