Thermoflux PID Logic combichase for efficient and environmentally friendly heating
PID Logic Kombi: The perfect combination of wood and pellet heating
The PID Logic combi boiler is the ideal solution for efficient, comfortable, and environmentally friendly heating. With a nominal heat output of 25, 35, or 45 kW, it's a perfect fit for small or medium-sized buildings. Thanks to its touchscreen control, lambda probe, and an efficiency of over 93%, you not only save energy but also protect the environment. Automatic switching between wood and pellet operation makes the boiler extremely user-friendly.
Efficient wood gasification: Maximum energy utilization
The PID Logic Combi relies on the proven wood gasification principle, which ensures almost complete combustion of the fuel. The spacious combustion chamber, which accommodates logs up to 500 mm long, achieves a burn time of at least four hours at full power. At lower heat loads, the burn time can even be extended to up to one day, significantly increasing heating comfort.
The two-stage wood gasification process ensures optimal use of the wood's energy and minimizes emissions. This protects the environment and saves fuel costs. It is important that the logs have a residual moisture content of no more than 20% to ensure maximum efficiency.
State-of-the-art pellet heating

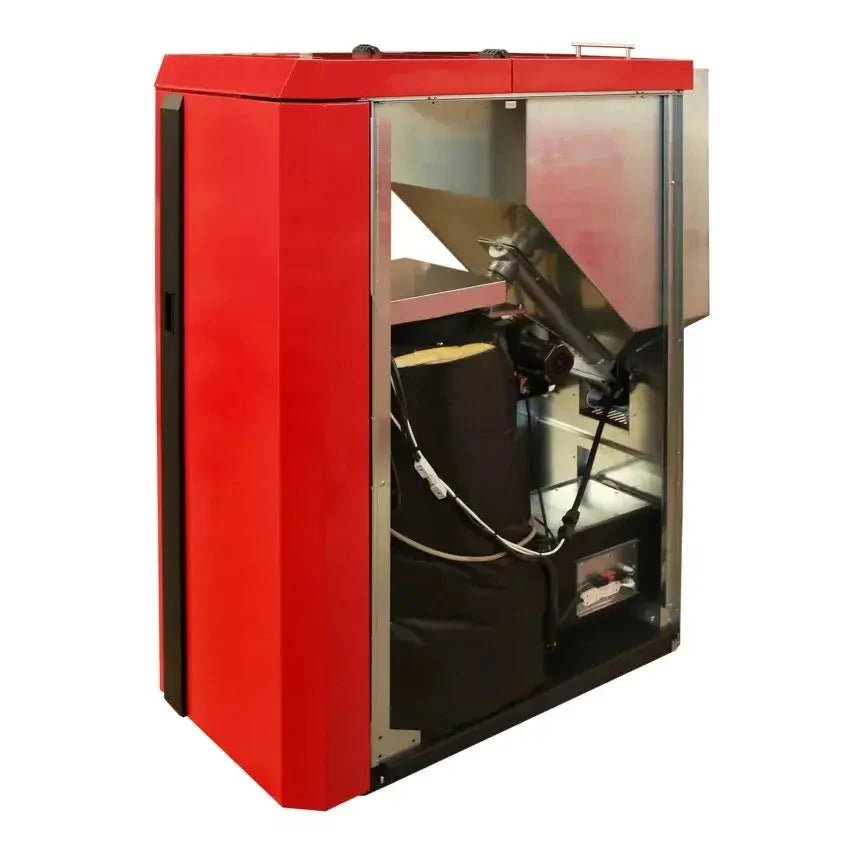

The pellets are burned in the separate right-hand section of the boiler. Pellets are considered an environmentally friendly energy source because they are made from wood chips and are subject to strict quality standards (DINplus, ENplus A1). The integrated storage hopper offers ample space for pellets, with a volume of 80 to 148 liters, depending on the model. Automatic filling via external conveyor systems is optionally available.
The advanced combustion technology ensures clean use of pellets with minimal emissions. This makes the PID Logic Combi an ideal complement or alternative to wood heating and increases heating flexibility.
Automatic switching between fuel types
A highlight of the PID Logic Kombi is the automatic switchover from wood to pellet operation. As soon as the logs in the combustion chamber are completely burned, the pellet burner takes over the heating process independently. This ensures a constant heat supply without the need for manual intervention. This function ensures maximum ease of use and continuous heat supply.
Ease of use thanks to innovative touch control
The PID Logic Kombi is intuitively controlled via a modern color touchscreen. All functions are clearly displayed. The integrated lambda sensor continuously measures the oxygen content in the exhaust gases and regulates the air supply to ensure optimal combustion – for both wood and pellets.

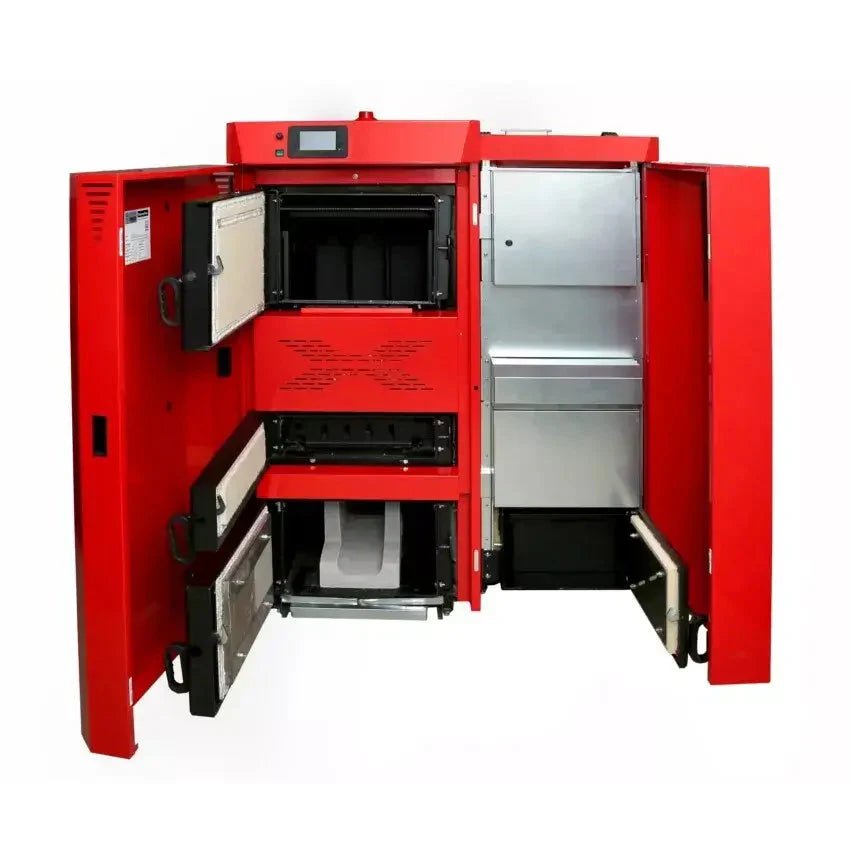

Additional features such as a flue gas temperature sensor and automatic grate cleaning significantly reduce maintenance requirements and increase the boiler's efficiency. The combustion chamber is easy to fill through a large loading door, and cleaning is straightforward through a separate door.
High security and reliability
Safety is a top priority with the PID Logic Combi. Equipped with a safety temperature limiter (STB), a safety heat exchanger, and a thermal discharge safety device, the boiler ensures maximum operational reliability. In the event of a temperature rise above the limit or a power failure, the protective mechanisms reliably intervene to regulate operation or protect the boiler.
Even in unpredictable situations, the PID Logic Kombi remains flexible and safe in operation, making it a reliable heating solution for every home.
An economical and environmentally friendly choice
With an efficiency of over 93%, the PID Logic Combi is one of the most efficient boilers in its class. Pyrolytic wood combustion saves more than 85% of fuel compared to conventional wood boilers. Its exceptionally low emissions meet the requirements of the strict BImSchV Level 2 and the highest boiler class 5 according to EN 303-5:2012.
The PID Logic Combi thus creates a sustainable combination of modern heating technology and ecological responsibility. The ability to use both wood and pellets in a resource-saving manner makes it an economical and future-proof investment.
Modular expansion options
The PID Logic Kombi can be individually customized to your needs. Optional modules, such as a GSM alarm module or controls for up to eight heating circuits, significantly expand the application possibilities. The pellet feed can also be adapted to your needs using auger conveyors, mole suction systems, or larger storage containers.
This flexible system design allows you to optimally integrate the boiler into your existing heating structure and easily make future extensions.
Technical details at a glance

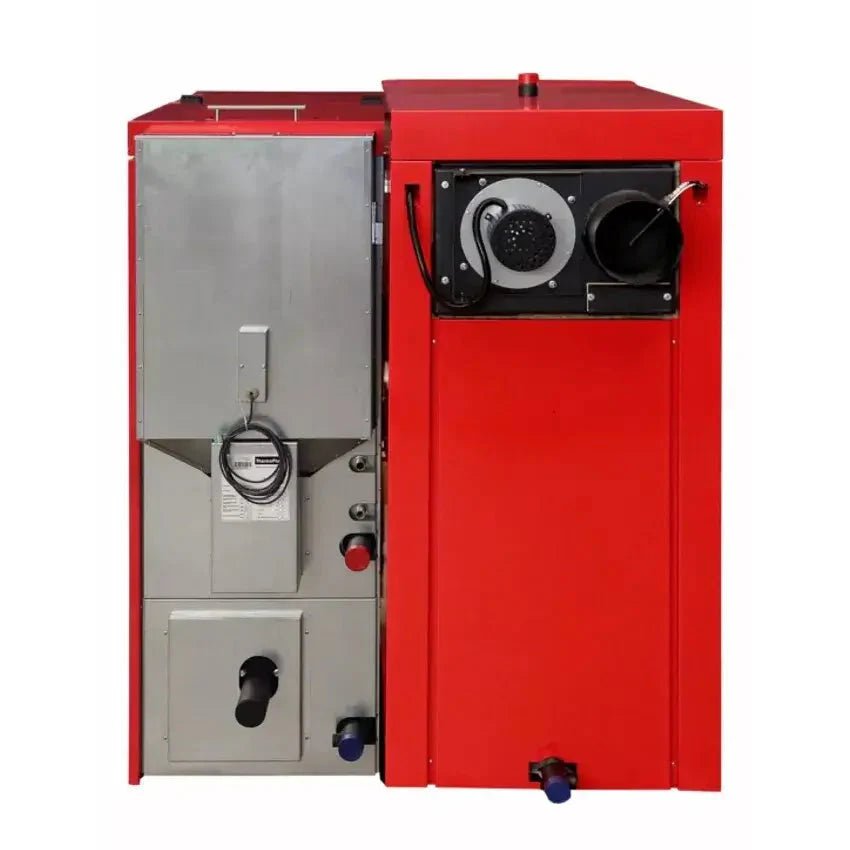

The PID Logic Combi is available in several power ratings (25, 35, and 45 kW) and features standardized connections for flow, return, and drain. The flue gas outlet varies in diameter between 150 mm and 180 mm depending on the power rating. Thanks to TÜV and CE certification, the boiler meets all relevant safety and quality standards.
All installed components are durable and reliable, making the PID Logic Kombi a stable and long-term heating solution.
Why the PID Logic Kombi is the right choice
In summary, the PID Logic Combi combines state-of-the-art heating technology with maximum comfort and high environmental compatibility. It not only offers powerful wood and pellet combustion, but also impresses with its ease of use, safety features, and cost-effectiveness.
With its flexible dual-fuel capability and automatic switching, this boiler is perfect for households that value reliable heat and efficiency. Choose the PID Logic Combi today and benefit from a sustainable and future-proof heating solution!
Technical data
- Energy efficiency class A+
- Boiler class 5
- Nominal heat output 45 kW
- Performance range
- Wood: 22.5-45 kW
- Pellets: 13.5-45 kW
- Efficiency 90.6%
- Tensile requirement 10 Pa
- CO content
- Nominal load: 60 mg/m³
- Partial load: 82 mg/m³
- Dust emission 13 mg/m³
- Maximum firewood length
- Wood (450-550) x 70 x 50 mm
- Pellet d=6 mm
- Flue gas mass flow rated power: wood 0.027 kg/s | pellet 0.0385 kg/s
- Minimum output: wood 0.014 kg/s | Pellet 0.0121 kg/s
- Height 1350 mm
- Width 1025 mm
- Depth 1385 mm
- Flue pipe connection Ø 160 mm
- Weight 875.0 kg
Scope of delivery
- Thermoflux PID Logic Combi 45 kW
- Assembly and operating instructions
