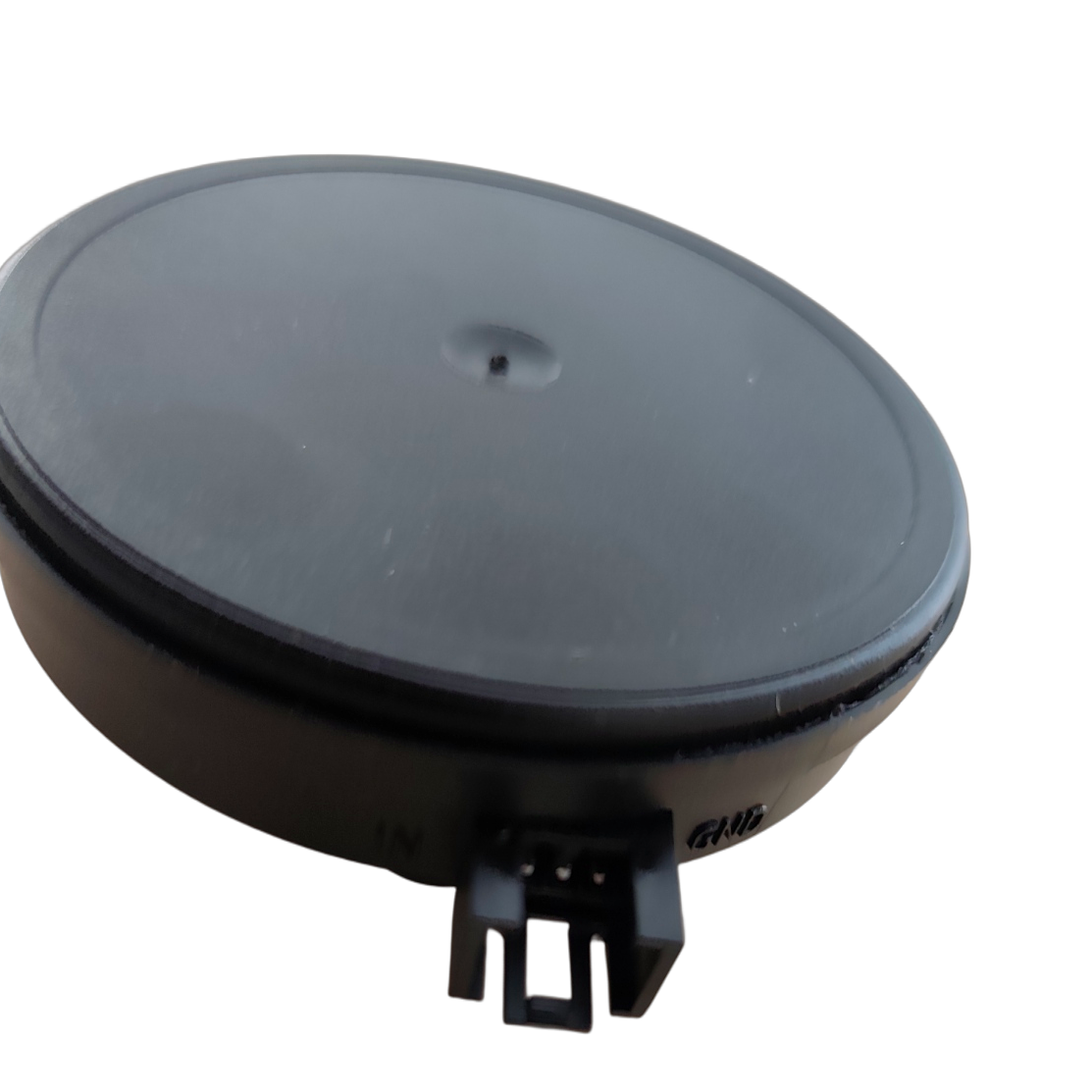

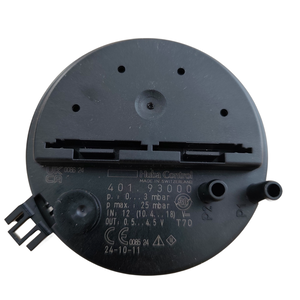

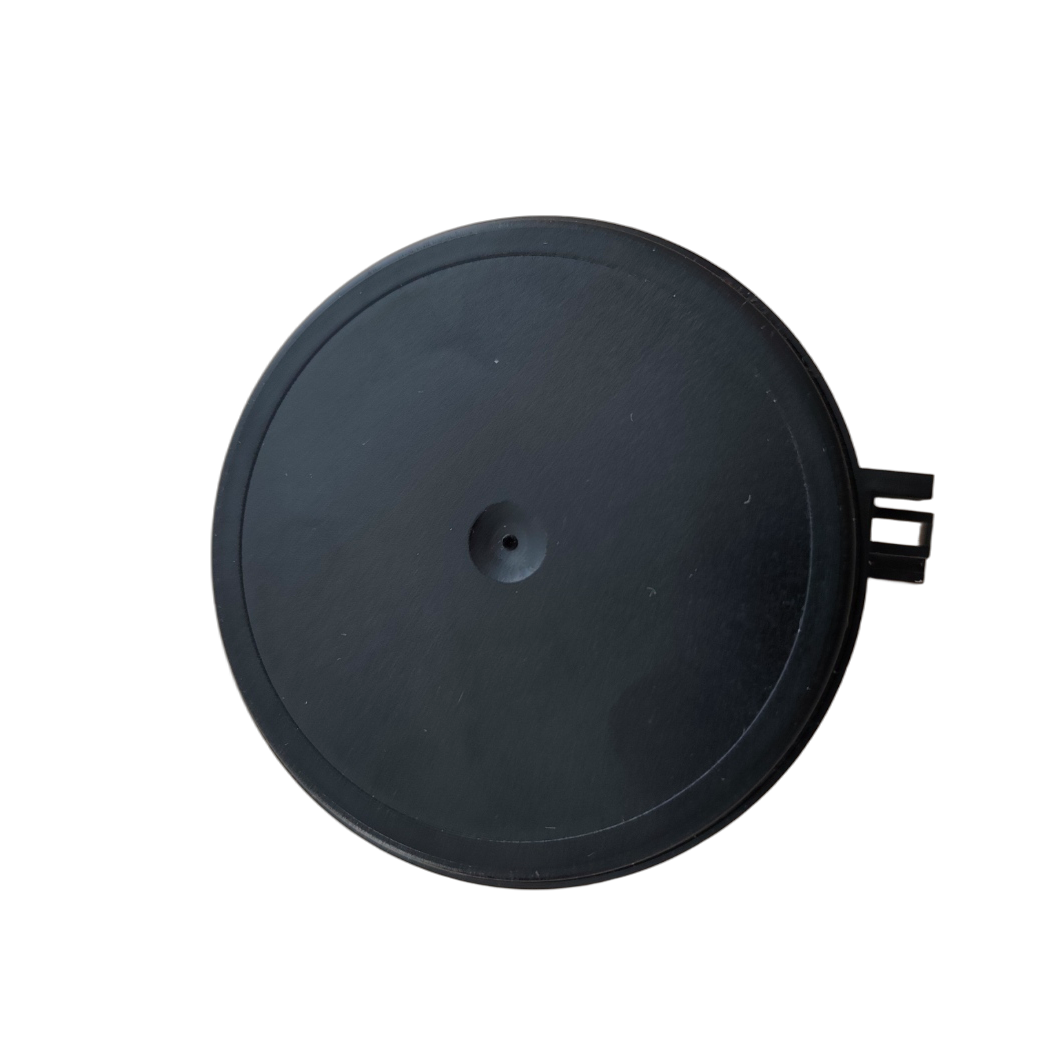

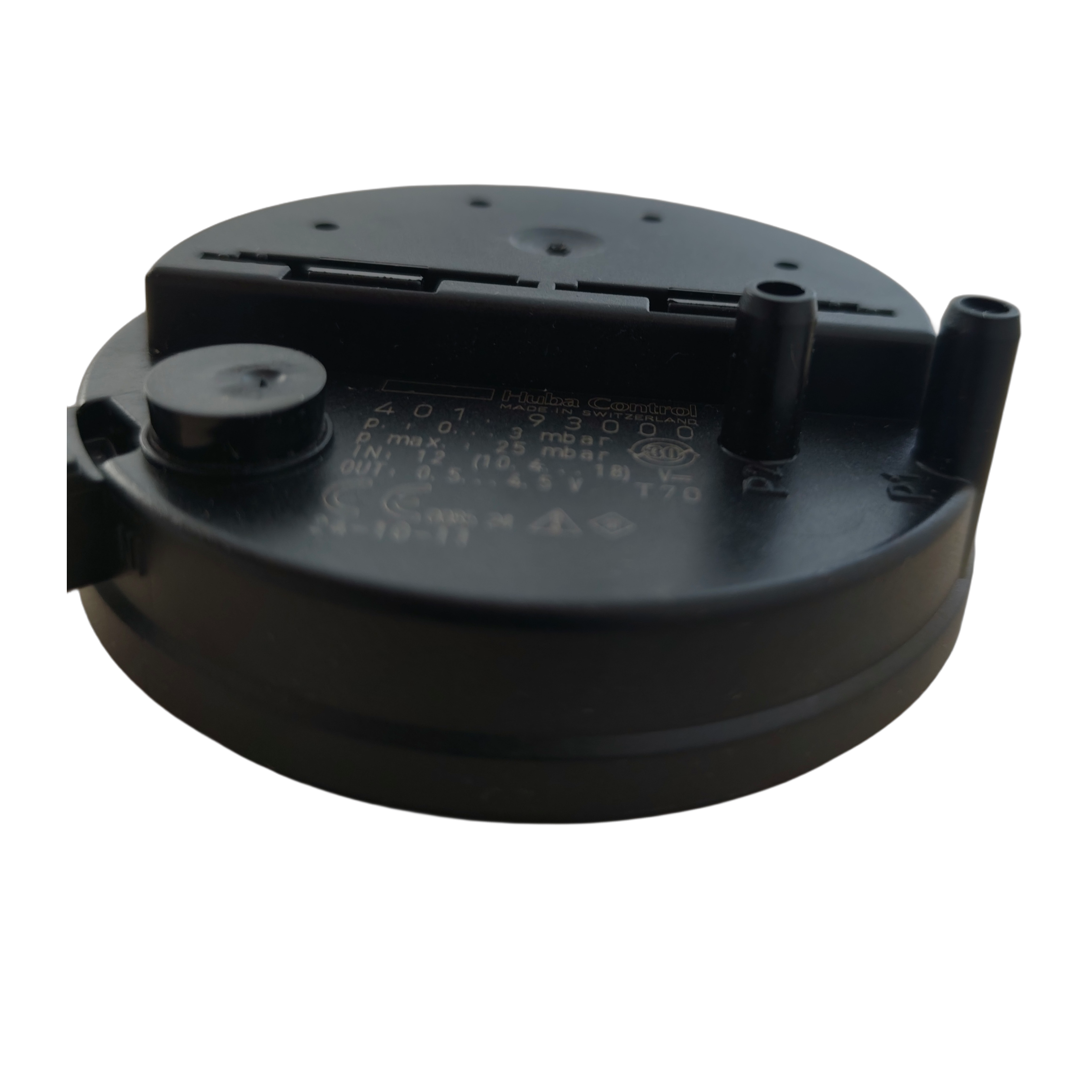

Vacuum sensor for pellet heating boilers Thermoflux pelling

Negative pressure sensor for Thermoflux Pelling pellet boilers 25/35/50 kW

Product description

The original vacuum sensor for Thermoflux Pelling pellet boilers reliably monitors the airflow in the flue system. It ensures that your heating system is optimally controlled at all times, thus contributing to safe operation.

Compatibility and area of ​​application

This negative pressure sensor is specifically designed for Thermoflux Pelling Eco pellet boilers with outputs of 25, 35, and 50 kW. It can be used in both private residential areas and small commercial properties.

How it works and advantages

The sensor measures the negative pressure in the exhaust pipe and delivers precise readings to the control unit. This ensures consistent combustion, which increases heating efficiency and reduces emissions.

Another advantage is the fast response time to changes in airflow. This minimizes disruptions and increases the operational reliability of your heating system.

Assembly and maintenance

Installing the vacuum sensor is straightforward: simply connect the adapter, insert the sensor into the designated slot, and establish the electrical connection. Detailed installation instructions are included.

For maintenance, we recommend regular inspection for contamination. This will ensure long-term measurement accuracy and reliable operation of the sensor for many years.

Technical data

The negative pressure sensor operates in a measuring range of -50 to +50 Pa and provides digital output signals. It is designed for ambient temperatures from -10 °C to +60 °C and features a robust housing construction for use in heating systems.

Scope of delivery

• 1 x vacuum sensor for Thermoflux Pelling
