Vaillant instantaneous heater Electronic Ved Pure

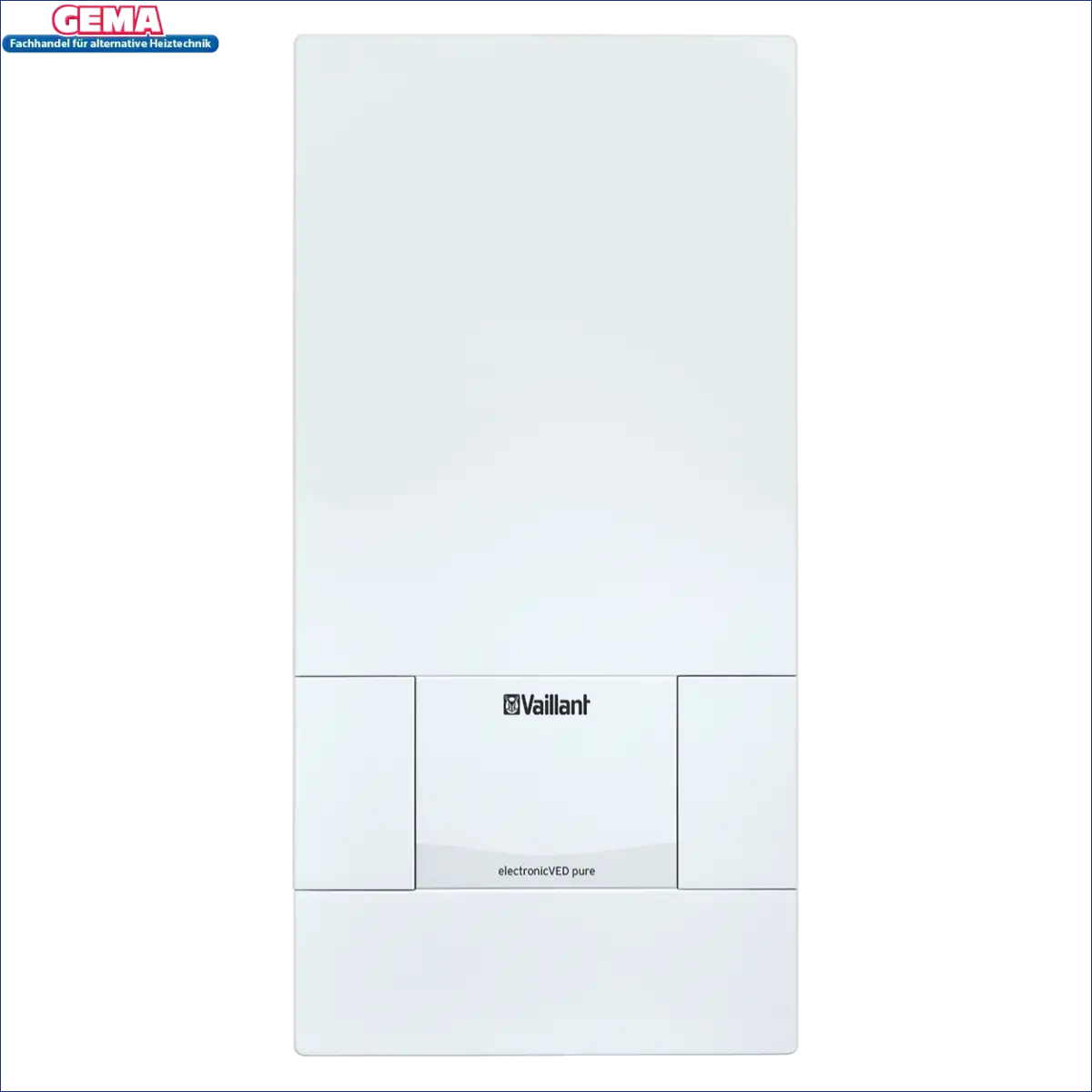

Vaillant instantaneous water heater electronic VED
Our Vaillant instantaneous water heater electronic VED Devices are suitable for almost any application and can supply one or more taps with hot water at the same time.
By heating water directly at the tap, there are no storage or circulation line losses – and the short pipe runs also minimize heat loss. At the same time, this increases drinking water hygiene. Furthermore, with a depth of just 99 mm, they are particularly space-saving and fit into even the smallest niche.
Whether in the bathroom or kitchen, in a single-family home or on the floor.
Simplest operation
Setting the temperature on the electronicVED and electronicVED pro devices couldn't be easier: Both product lines use a convenient rotary knob. With the electronicVED, the desired temperature can be set continuously and precisely to the degree – and, thanks to the new digital temperature display, it's also easy to read. With the electronicVED pro, you can choose between three preset temperature levels: 35°C, 45°C, or 55°C – which can be further varied by adding cold water.
Installation made easy
Thanks to our Pro-I installation system, all Vaillant electronic VED pure instantaneous water heaters are installed in a snap. The integrated folding frame ensures easy access to the connection fitting, the included inlet shut-off valve facilitates device maintenance, and the rotating device cover makes it easy to operate when installed under a counter. Furthermore, all electronicVED devices are compatible with all third-party devices: Thanks to the universal mounting plate, old devices can be easily replaced. The device design with plug-in components – all of which are made from recyclable materials – allows for easy disassembly.
Ideal for exchange business
Thanks to their high cost-effectiveness, our electronic instantaneous water heaters are ideal for modernization projects: After all, they can save up to 30% on energy and water costs when replaced with hydraulically controlled units. Our electronicVED units allow the outlet temperature to be preset to the exact degree.
Product features
- Continuously adjustable temperature controller
- 7-segment temperature display
- Electronic power control
- Installation system PRO I for maximum ease of installation: variable electrical connection, folding frame below
- Suitable for plastic pipe systems according to DIN 1988 and DIN 16892/16893
- IP 25 D jet water protection allows unrestricted installation in protection area 1
- UV-resistant device cover (no yellowing due to UV radiation)
Special features
- Hot water comfort: constant, continuously adjustable Outlet temperature from 30 °C to 55 °C up to the performance limit
- 7-segment temperature display for precise temperature preselection
- Energy and water savings of up to 30% compared to hydraulic instantaneous water heaters
- Simple and quick maintenance thanks to good accessibility of easily replaceable components
- Automatic air bubble detection on all electronic devices
- Adjustable scalding protection
Technical data: Vaillant instantaneous water heater electronic VED pure
| Technical data | Unit | VED E 18/8 | VED E 21/8 | VED E 24/8 |
|---|---|---|---|---|
| Heating output | kW | 18 | 21 | 24 |
| Power control | Electronically controlled | Electronically controlled | Electronically controlled | |
| Continuous hot water output Δt 30K | l/min | 8 | 8 | 8 |
| Tension | 400V/50Hz | 400V/50Hz | 400V/50Hz | |
| Electrical connection | Cable | Cable | Cable | |
| Protection class | IP25 | IP25 | IP25 | |
| Hot water temperature (Min - Max) | °C | 30 - 55 | 30 - 55 | 30 - 55 |
| Max inlet temperature | °C | 55 | 55 | 55 |
| Product dimensions (height/width/depth) | mm | 481/240/99 | 481/240/99 | 481/240/99 |
| Product weight | kg | 4.4 | 4.4 | 4.4 |
Scope of delivery: Vaillant instantaneous water heater electronic VED pure
- 1 electric instantaneous water heater electronicVED
- 1 cold water connection piece R 1/2 with cold water shut-off valve
- 1 hot water connection piece R 1/2
- 1 mounting plate
- 1 mounting template
- 1 fastening material
- 1 Operating and installation instructions
- 1 product data sheet, energy efficiency label
