Hot water tank 150 liters with 1.5 kW heating element
150 litre hot water tank with 1.5 kW heating element
Product description
The Hot water tank with a capacity of 150 liters and integrated heat exchanger offers a central solution for the safe production of hot water. It is ideal for producing drinking or service water in combination with a thermal solar system, a boiler or a Photovoltaic system to heat efficiently with a retrofittable electric heating element.
The high-quality corrosion protection provided by an enamel coating and a large magnesium anode guarantees long-term durability. The combination of state-of-the-art technology and robust construction makes this hot water tank a reliable choice for a wide variety of heating systems.
Advantages of the hot water tank
The hot water tank impresses with its excellent value for money and offers a high level of hot water comfort for a demand of 100 to 180 liters. The highly efficient heat exchanger ensures maximum energy yield from the supplied heat source.
The diverse connection options, including a circulation connection and a separate connection for the electric heating element, ensure flexible integration into a wide variety of systems. In addition, the tightly foamed polyurethane insulation actively contributes to minimizing heat loss.
Technical data of the hot water tank
With a volume of 150 liters, a heat exchanger surface area of 1.4 m², and an integrated heat exchanger capacity of 6.1 liters, the storage tank offers sophisticated technology. The connection options for flow, return, and circulation are designed for 3/4-inch external threads, while the system easily tolerates a maximum operating pressure of 6 bar.
The Hot water tank It is designed for operating temperatures of up to 95°C in the storage tank and 100°C in the heat exchanger, and has a heat output that guarantees a loss of only 36 watts. The integrated insulation also enables a compact design that easily fits into various installation spaces.
Heating element – performance features
The integrated electric heating element with an output of 1.5 kW It is designed as an ideal add-on device to support the system independently of external heat sources when needed. Its robust construction made of high-quality stainless steel ensures long-lasting and reliable performance.
The heating element features a clear temperature controller that allows precise control of the water temperature within a range of 5°C to 75°C. A switch-on hysteresis also contributes to this, ensuring not only constant temperatures but also avoiding unnecessary switching cycles.
Technical details of the heating element
With a compact installation length of 300 mm and an unheated length of 70 mm, the heating element integrates flexibly into existing systems. It is designed to withstand a maximum operating pressure of 10 bar and is optimally protected against splash water by an IPX4-certified housing.
The integrated thermostat with a safety temperature limiter (activated at 93°C) and a frost protection mechanism provides additional safety and energy efficiency. The 1.5-meter-long connection cable with a Schuko plug also enables quick and easy installation in the system.
Areas of application
The hot water tank and the associated heating element are ideal for use in private households as well as in commercial applications. They can be used in both Can be used in combination with solar systems as well as with solid fuel, pellet and wood gasification boilers.
Thanks to the versatile connection options and sophisticated safety features, both components represent the ideal solution for providing a constant supply of hot water even in demanding environments.
Conclusion
With the 150-liter hot water tank and powerful 1.5 kW heating element, you get a sophisticated system that meets the highest standards of efficiency and safety. The combination of advanced heating technology, comprehensive corrosion protection, and robust components guarantees a long-term and reliable hot water supply.
Its flexible applicability in various heating and solar systems, coupled with easy integration and operation, makes this system an optimal investment for modern heating installations. It combines innovative technology with user-friendly control, thus guaranteeing a consistently high level of efficiency. Hot water comfort.
Technical data

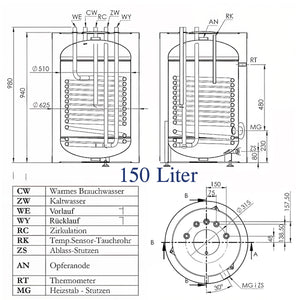

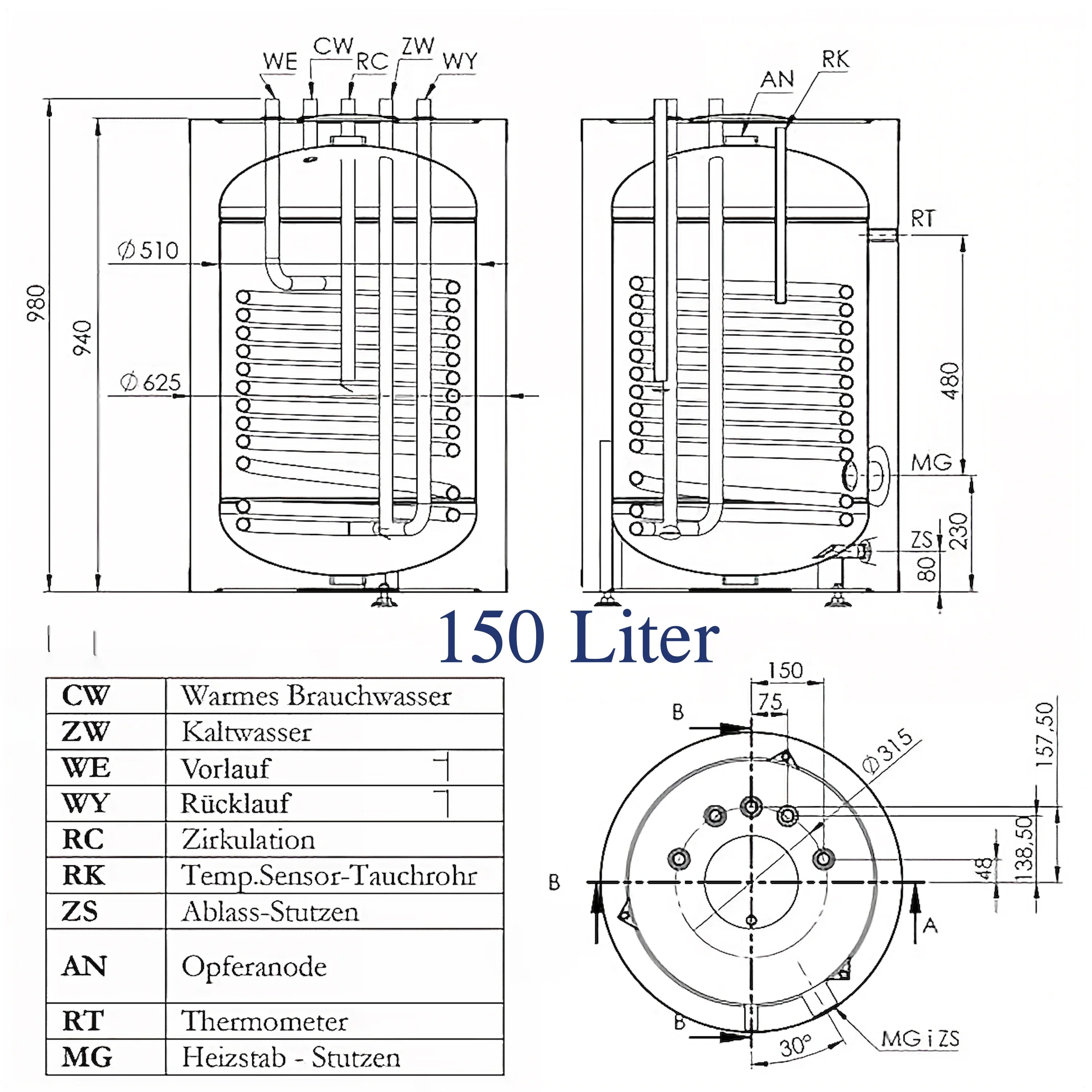

Technical data hot water storage tank
- Volume: 150 liters
- Heat exchanger surface: 1.4 m²
- Heat exchanger capacity: 6.1 liters
- Connection flow and return heating: 3/4" AG
- Connection flow and return domestic water: 3/4" AG
- Circulation connection: 3/4" AG
- Magnesium anode connection: 1 1/4" IG
- Connection for electric heating: 1 1/2" IG
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature storage 95 °C
- Max. operating pressure storage tank/heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C
- Loss: 36 watts
- Inner diameter of storage tank: 510 mm
- Dimensions with insulation (diameter x height): 625 x 980 mm
- Weight (empty): 76 kg

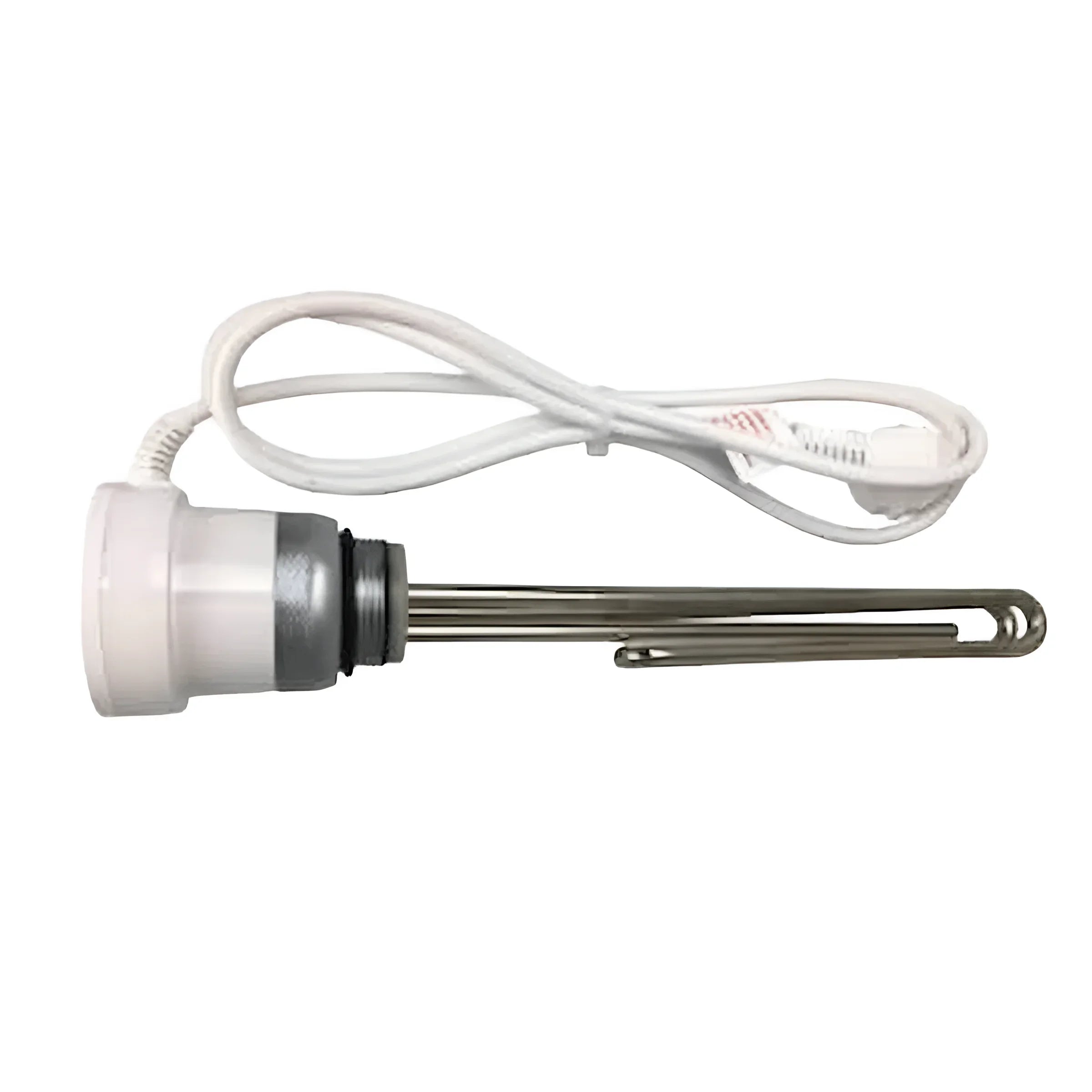

Technical data heating element
- Heating output: 1.5 kW
- Temperature range: 5-75°C
- Switch-on hysteresis: 7-10°C
- Installation length: 300 mm
- Unheated length: 70 mm
- Safety temperature limiter: 93°C
- Connection: 1 ½" AG
- Max. operating pressure: 10 bar
- Protection class: IPX4
- Heating coil material: Alloy 825
- Housing material: plastic, white
- Power supply: 230V/16A, single-phase
- Connection cable: 1.5 meters with Schuko plug
Scope of delivery
- Hot water tank 150 liters
- Heating element 1.5 kW with 1 1/2" AG
- Assembly & Operating instructions
