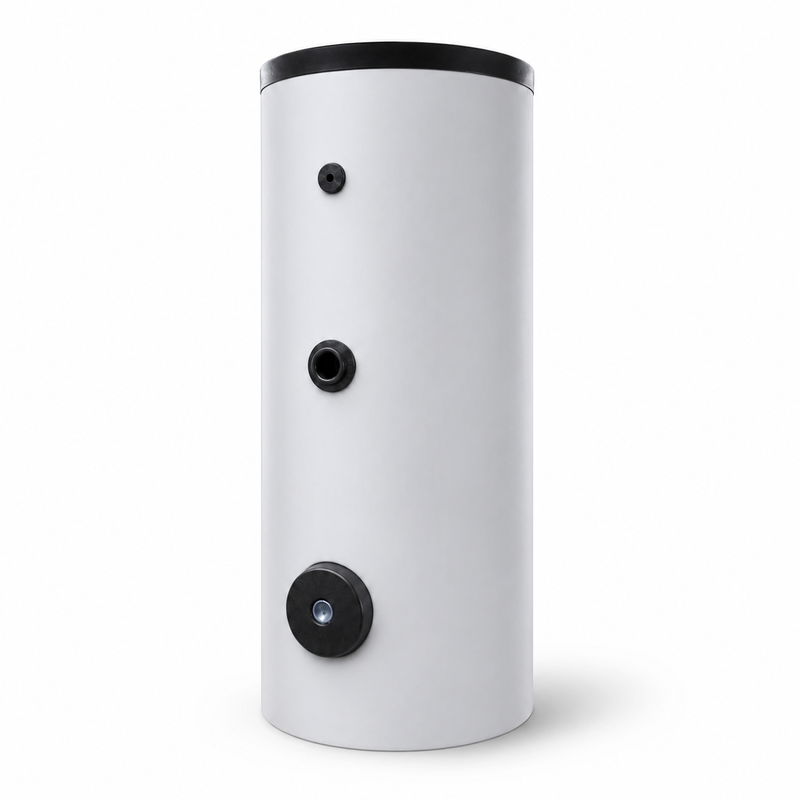

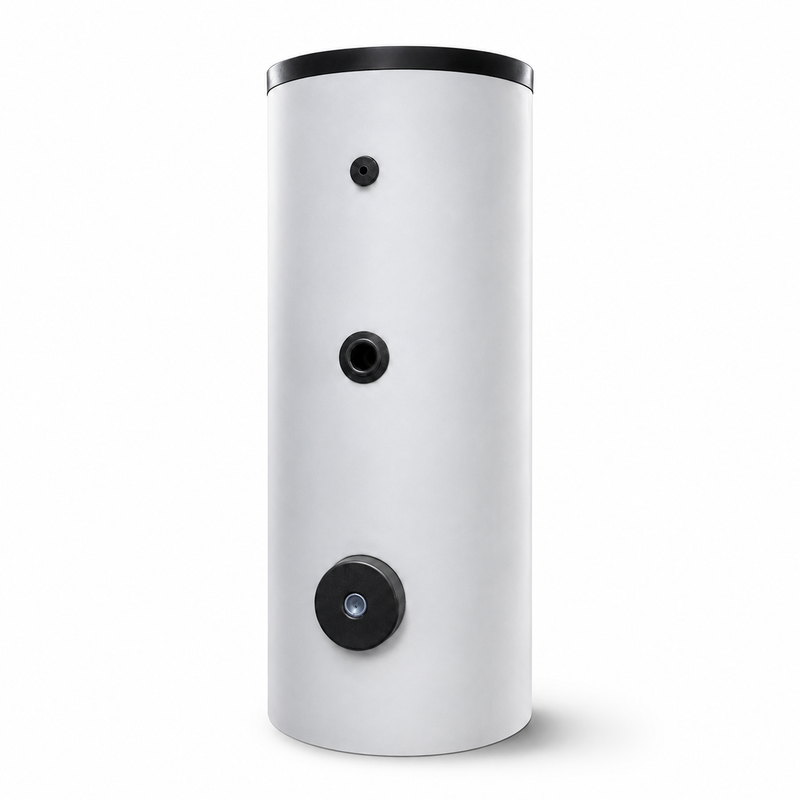

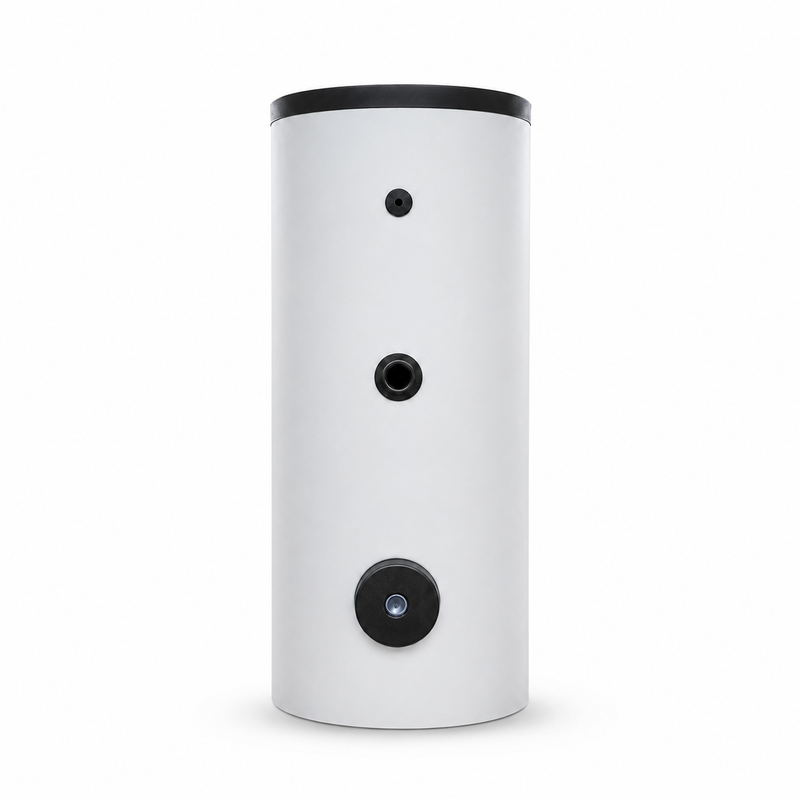

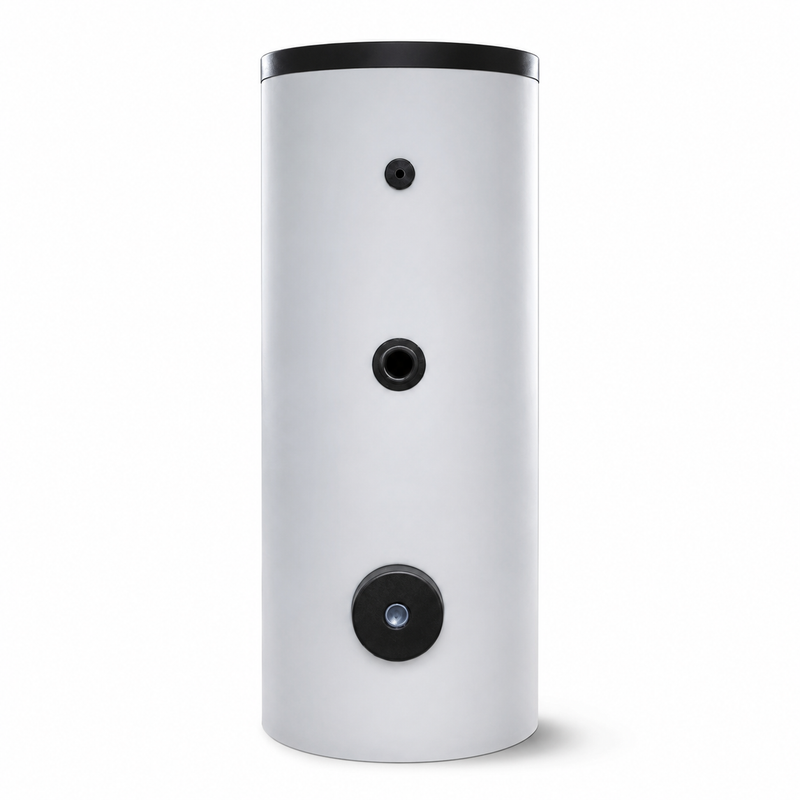

Hot water tank Fish S1

Fish S1 X domestic hot water storage tank

Vertical hot water storage tank for domestic hot water preparation.

The hot water contact surface with the storage tank is protected against corrosion by a layer of high-quality enamel and magnesium anode*.
This ensures, in accordance with DIN 4753, that the process water only comes into contact with a hygienically clean surface.

Domestic hot water is heated by a smooth-tube water heat exchanger, which allows the connection of an external heat source such as... z.B. Solar panels, heat pumps, boilers or optional electric heating elements are possible.

Thermal insulation & Fish S1 X domestic hot water storage tank

The thermal insulation in the storage tanks consists of a layer of CFC-free polyurethane rigid foam and a replaceable layer of PVC jacket.

Standard equipment of the hot water storage tank

• Inspection opening, thermometer, socket for electric heating element, magnesium anode*,
• internal heat exchanger.
• *Optionally, a titanium anode can be used.


Technical data

• Material: S235JR
• Welding: automatic welding
• Protection: high-quality Enamel coating and 2 sacrificial anodes
• Maximum operating pressure of the storage tank: 10 bar
• Maximum test pressure: 15 bar
• Maximum operating temperature: 95ºC
• Insulation: 50 mm thick polyurethane foam
• Heat exchanger: Steel pipe P235GH
• Inspection opening: ø122 mm/ ø179 mm
