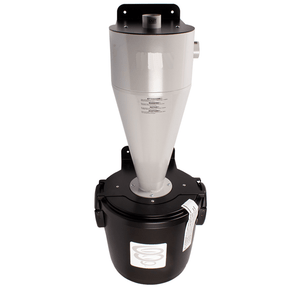

Cyclone pre-separator/dust separator TURBIX SMALL
The dust collector can be installed at any time and does not require electrical wiring.
- Large dust container with compact design
- Compatible with most commercially available pellet conveyor hoses
The dust collector TURBIX SMALL is an innovative solution for optimizing your pellet heating system. This clever device is positioned between the suction system of your pellet boiler and the extraction unit of your pellet storage and performs a crucial function: It captures almost all of the dust generated during pellet conveyance.

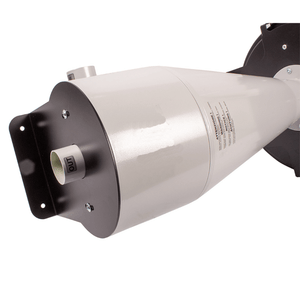

The heart of the TURBIX SMALL is its conical design, which creates a cyclonic movement. This design allows the extracted dust to slide downwards into the spacious 21-liter collection container. This impressive capacity is perfectly balanced with the compact size of the separator.
By effectively retaining the dust content of the pellets, the TURBIX SMALL ensures significantly improved combustion in your pellet boiler. The connection nozzles have a nominal diameter of 50 to 51 mm, ensuring broad compatibility with most commercially available & nbsp; pellet conveyor hoses & nbsp; guaranteed.
By using the TURBIX SMALL, you are investing in cleaner, more efficient and trouble-free operation of your pellet heating system.
Technical data
- Capacity 21 l
- Weight 15 kg
- Diameter dust inlet-outlet 50 mm
Scope of delivery
- dust collector
- Self-supporting cylindrical housing made of epoxy powder-coated metal
- Operating instructions
Download
