Coal boiler Atmos KC25S – Efficient heating with coal and wood 🔥

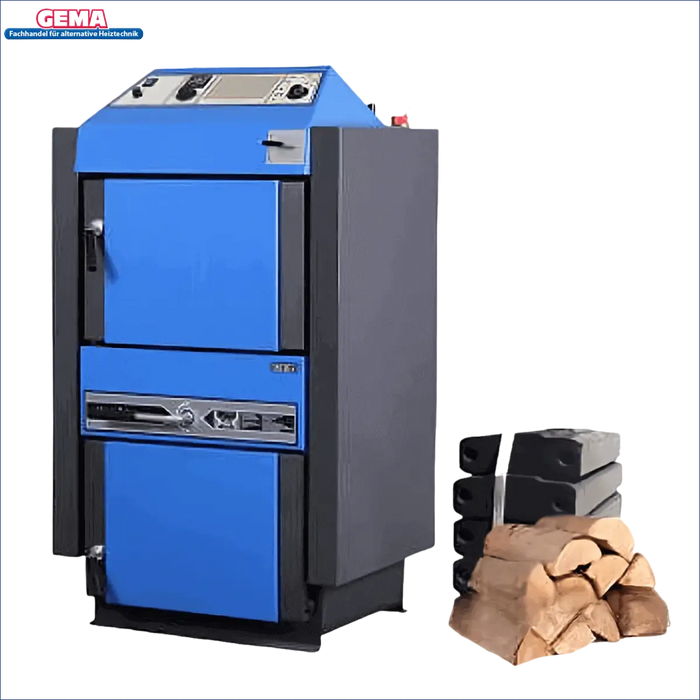

Atmos KC25S coal boiler

The Atmos KC25S is a high-performance coal gasification boiler that is primarily operated with coal as fuel, but can also efficiently use logs as an alternative fuel.

The Atmos KC25S coal-fired boiler was specifically designed for heating single-family homes, weekend and country houses, workshops, and similar properties. The boiler body is made of high-quality, 6 to 8 mm thick sheet steel, which ensures significantly better heat transfer compared to cast iron boilers. Furthermore, the KC25S offers a reliable and flexible solution for anyone looking for a modern alternative to older cast iron boilers such as the GK21, GK31, or K30 models.

With its sophisticated gasification technology, this coal-fired boiler enables efficient combustion of lignite briquettes, hard coal, and logs. Thanks to its innovative design, the Atmos KC25S achieves an impressive efficiency of up to 86%. At the same time, it meets all current requirements of the German Federal Immission Control Act (BImSchV) and is therefore fully approved for operation in Germany.

Advantages: Atmos KC25S coal boiler

• Sophisticated gasification boiler for various fuels, ideal for coal and wood
• Ceramic combustion chamber with rotating, durable cast iron grate
• Efficient secondary air preheating ensures optimal combustion and rapid power delivery even during the start-up phase.
• Cast iron grate in a ceramic shell – a novel design specifically for the clean and effective gasification of lignite briquettes and hard coal.
• Easy cleaning of the combustion chamber and exhaust duct thanks to the integrated pipe heat exchanger
• High efficiency of up to 86% reduces fuel consumption and emissions
• Modern, contemporary design at an attractive price-performance ratio

Technical data

• Energy efficiency class C

• Boiler class 3

• Nominal heat output: 26 kW

• Efficiency: up to 86%

• Traction requirement: 20 Pa

• CO content: 371 mg/m³

• Dust emission: 4 mg/m³

• Approved fuels: coal, firewood

• Maximum firewood length: 330 mm

• Exhaust gas temperature: 240 °C

• Exhaust gas mass flow: 0.015 kg/s

• Dimensions (H x W x D): 1185 x 675 x 758 mm

• Flue pipe connection: 150/152 mm

• Weight: 303 kg

Scope of delivery

• ATMOS KC gasification boiler
• modern Honeywell fire regulator
• Cleaning accessories for easy care
• an ash container
• a filling tap
• a comprehensive assembly and operating manual

Optional offer

Don't forget!!! Here you can commissioning like their atmospheric pressure vessel order withAll requirements and conditions can be found in the article. There are two types of commissioning.

• Single unit - This is a boiler that operates with one fuel.
• Combination boiler - This is a boiler that can use multiple fuel types.

ORDER IT NOW!!! Commissioning by ATMOS
