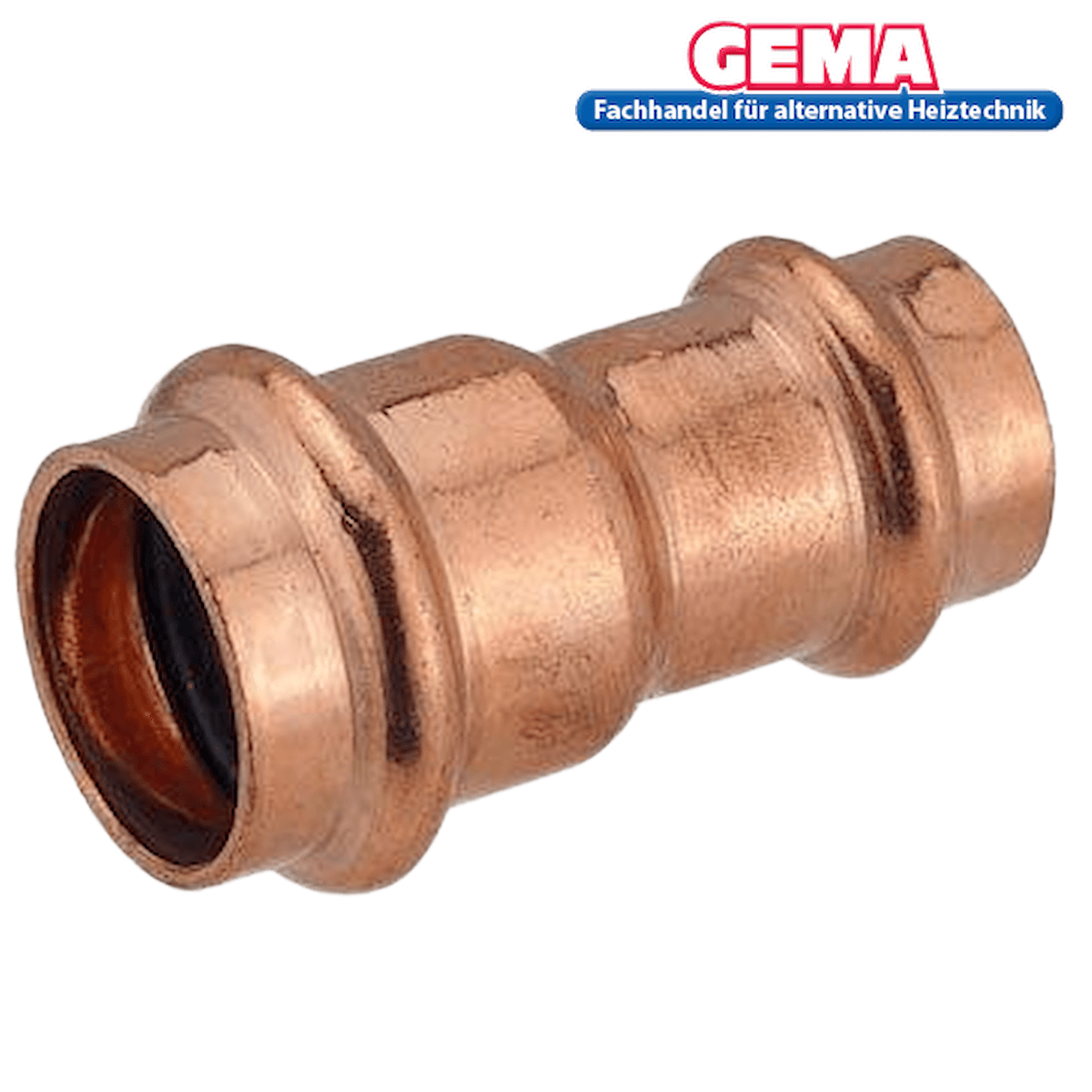

Copper heel nipple for pressing

Pressfitting heel nipple with SC-Contur.

The tested copper press system – for the quick, safe and easy installation of copper pipes

Our copper press system for the secure connection of copper pipes covers almost all requirements in domestic and industrial systems.

The system for professionally connecting copper pipes is DVGW-certified and therefore also approved for use in the installation of drinking water pipes. It requires the combination with a copper pipe certified according to DVGW guidelines. It is not approved for use in gas pipes.

Applications: Copper heel nipples for pressing

Drinking water cold and warm

Heating

Compressed air systems

Cooling systems

Features and benefits: Heel nipple for pressing

Fast, easy and secure processing

For professionals and DIY enthusiasts

Large assortment

High quality

Noble material (copper)

Approvals and standards:

Copper heel nipple for pressing

Max. operating pressure: 16 bar

Max. operating temperature: 110°C

Copper fittings according to UNI 11065

Copper according to EN 1412: Cu-DHP

Bronze alloy with high technological content and low lead content according to EN 1982

O-ring made of EPDM according to EN 681-1

DIN-DVGW tested and approved for drinking water pipes

The technical rules for drinking water installations according to UNI EN 806:2008 and UNI 9182:2010 must be observed

Properties of copper pipe:

Please only process with:

Copper pipes in rods, semi-hard or hard, according to EN 1057, with RAL and DVGW quality marks (15 to 35 mm)

Copper pipes in coils, soft, according to EN 1057, with RAL and DVGW quality marks (12 to 22 mm)

*Technical changes reserved | Images may vary
