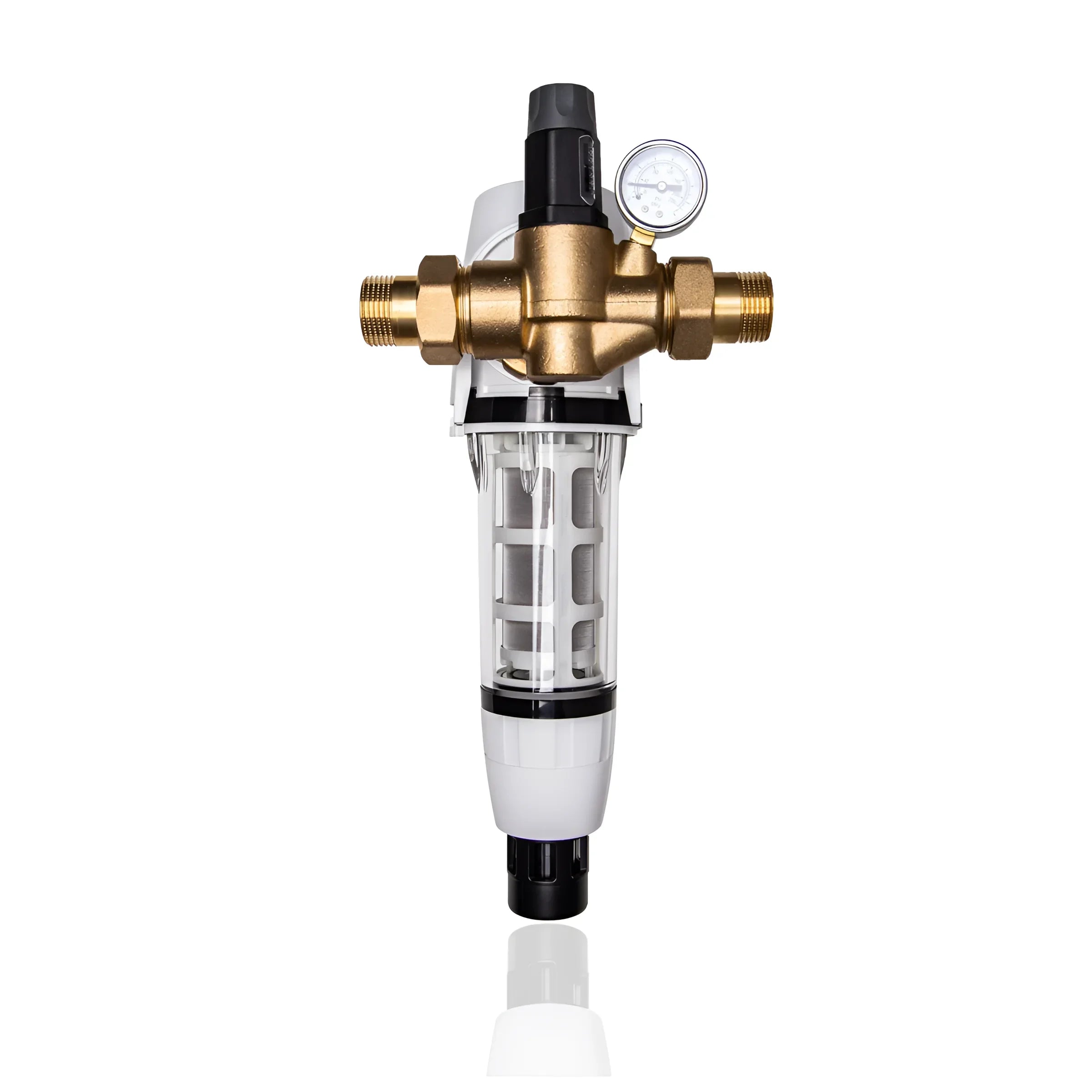

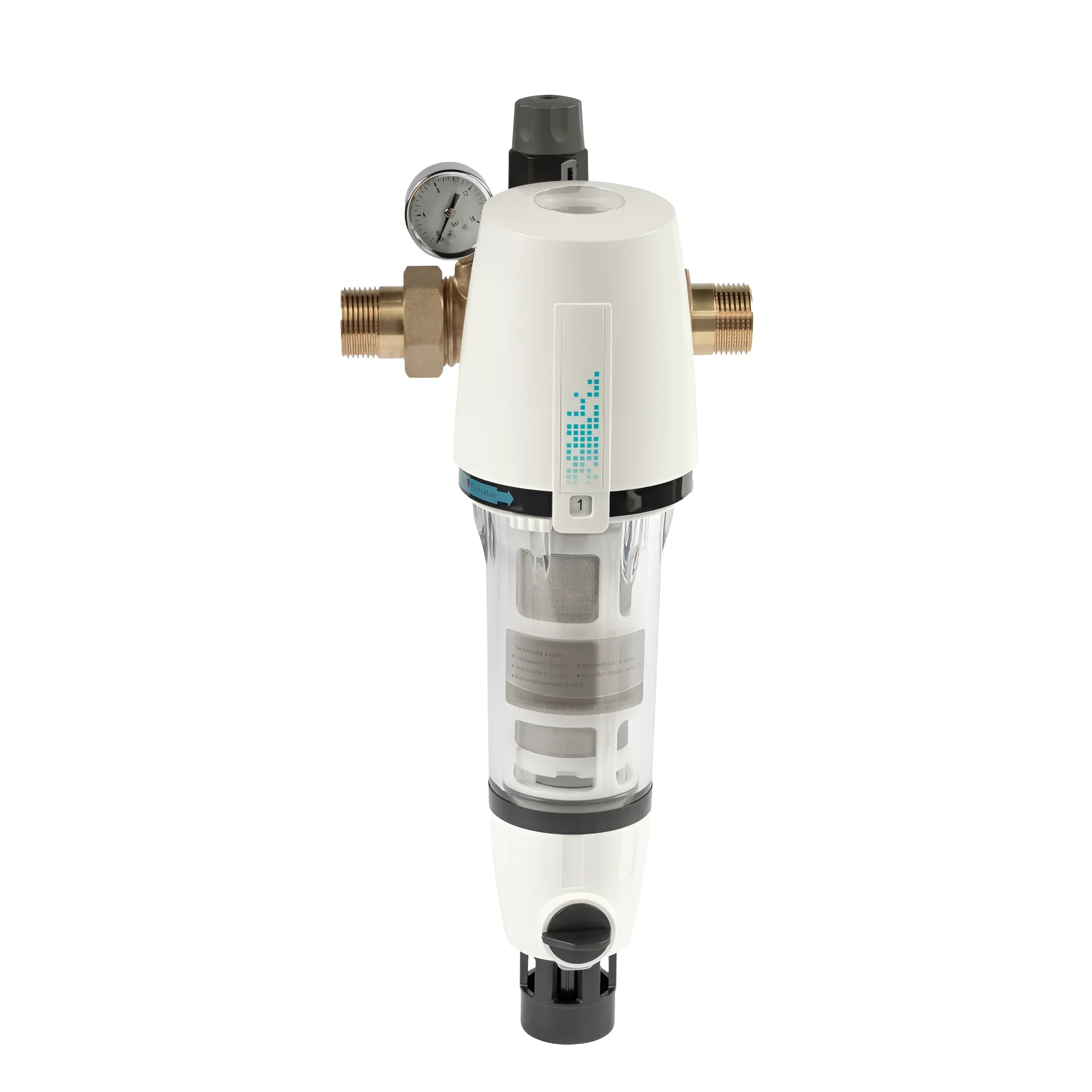

Rinseed filter AQMOS 1 inch with pressure reducers and manometers

Product description: Backwash filter 1" AQMOS with pressure reducer and pressure gauge

High-quality construction and functionality

The manually operated AQMOS backwash filter is specially designed for the filtration of drinking and domestic water. Made of high-strength engineering plastic, it reliably protects water pipes and connected systems from corrosion and functional damage caused by disruptive foreign particles such as rust, chips, and sand.

The flow-optimized filter system is ideal for removing particles larger than 90 µm. With its robust mechanical properties and precise manufacturing, the filter offers long-lasting and reliable protection in any water-bearing system.

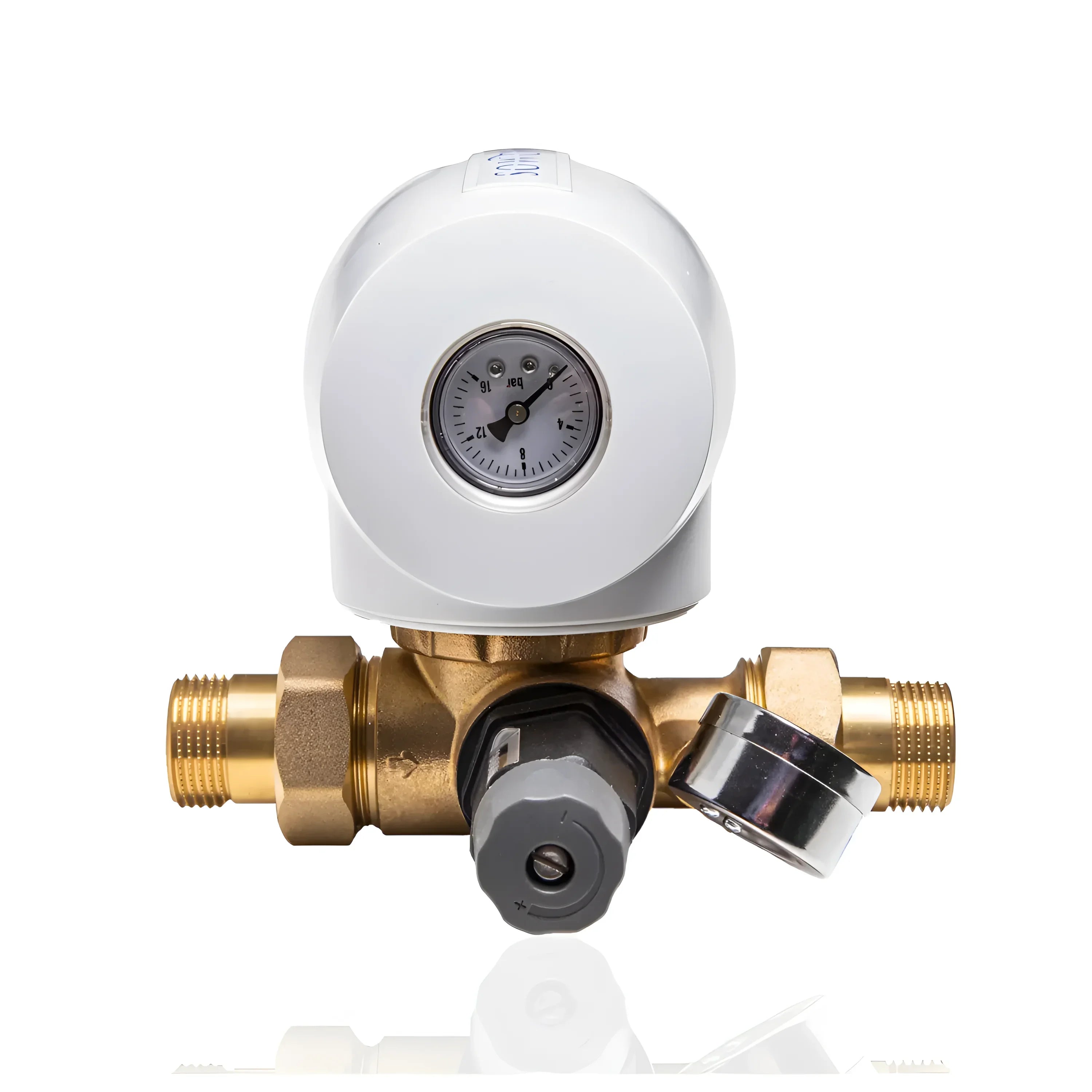

Integrated pressure reducer and pressure gauge

A special advantage of this filter is its continuously adjustable pressure reducer, which ensures soundproof operating conditions. The integrated pressure gauge allows for easy monitoring of the water pressure and guarantees safe use in demanding systems.

These integrated components ensure optimal water flow, allowing both the protection of water installations and efficient pressure control to be kept in mind.

Easy installation and flexible assembly

The AQMOS backwash filter can be mounted horizontally or vertically and, thanks to its 180° rotation, can be used in any direction of flow. This flexible orientation allows for easy integration into existing systems.

Mounting in any position makes installation much easier and ensures that the filter can operate optimally even in installation areas that are difficult to access.

Efficient backwash technology

If the filter element becomes clogged with dirt particles and the water pressure drops, the backwash filter can simply be switched to backwash mode. Turning the backwash button opens the drain, allowing the contaminated water to drain through the pre-filter.

The backwash process cleans the filter element in the opposite direction of flow, minimizing water consumption. Depending on the degree of contamination, a backwash process takes between 5 and 10 seconds and can be repeated several times if necessary to achieve complete cleaning.

Areas of application and important information

The AQMOS backwash filter is ideal for filtration of drinking and domestic water in private households. Continuous pressure monitoring and the integrated date indicator, which reminds you when the filter needs to be changed, ensure optimal operation at all times.

Please note that the filter is not suitable for use in chemically treated circulating water, media containing oil, grease, or solvents, or for the separation of water-soluble substances. Alternative filtration systems should also be considered for applications involving coarse dirt particles.

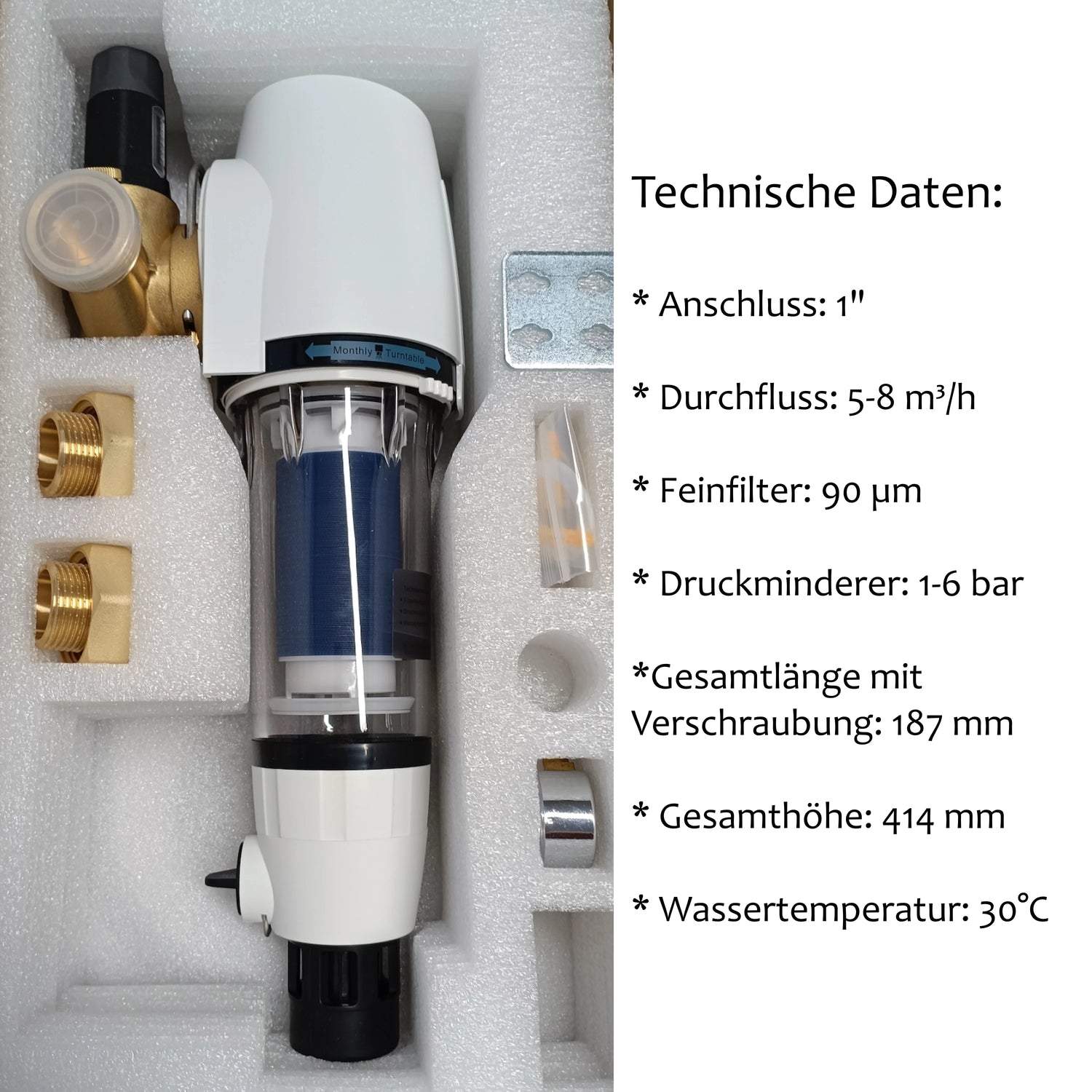

Technical data

• Connection width 1"
• Nominal flow rate 5-8 m³/h
• Filter fineness 90 µm
• Pressure reducer adjustable from 1-6 bar
• Overall length with screw connection 185 mm
• Total height 420 mm
• Water temperature 30°C
• Nominal pressure PN PN 16 at 30°C

Scope of delivery

• Filter element (stainless steel filter mesh)
• connecting flange
• Sewer connection
• Water meter screw connection
• Wall mount
• Filter key

Download

• Operating instructions
