Name: Wavin multilayer composite pipe 16x2.0 20x2.25 - roll 25 meters
Brand: Wavin
SKU: WAR20R
Price: 62.34 EUR
Availability: InStock

Wavin Mehrschichtverbundrohr 16x2,0 20x2,25 - Rolle 25 Meter - GEMA Shop

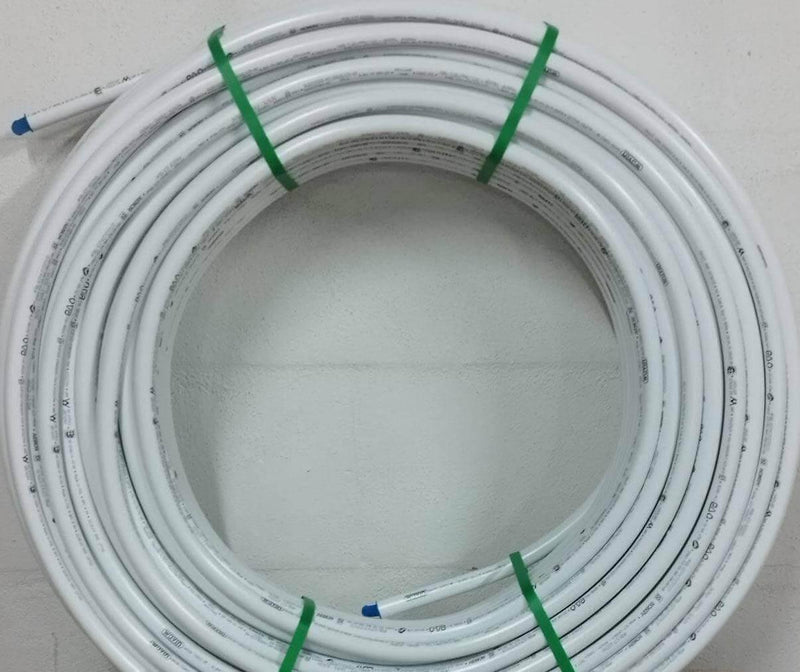

Wavin multilayer composite pipe 16x2.0 20x2.25 - roll 25 meters

by Wavin

38,79 € - 62,34 €

62,34 €

38,79 € - 62,34 €

62,34 €

Availability:

Low stock

Availability:

Low stock

Die Produktbeschreibung wird aktuell ergänzt. Bei Fragen zu Einsatzbereich, Auslegung oder Kompatibilität hilft dir unser Fachteam gerne weiter.

Fachhandel für Heiztechnik

Technische Beratung für Heiztechnik & Systemkomponenten
Sichere Zahlung
Paket- oder Speditionsversand je nach Produktart

Quantity

Description

Wavin multilayer composite pipe 16x2.0 20x2.25

Aluminum multilayer composite pipe 16 - 20 mm on a 25 m roll

The Aluminum multilayer composite pipe It is DVGW tested and approved and is therefore ideally suited for the Drinking water installation and is physiologically harmless from a food physiology perspective!
- Low weight thanks to PE-X technology
- Significantly reduced fitting requirements due to the simple bending of the pipe
- Flexible handle with simultaneous shape stability,
- ideal for the tightest installation spaces
- quick and safe assembly
- low linear expansion
- diffusion-tight
- free from incrustations
- corrosion-resistant
- physiologically harmless to food
The composite pipe can also be used in a variety of ways in the heating sector.
The Composite pipe is extremely corrosion-resistant and completely gas-tight against oxygen and water vapor! The composite pipes can be bent by hand without special tools, making them easy and quick to install even for DIY enthusiasts.

Technical specifications & Advantages:

Wavin multilayer composite pipe 16x2.0 20x2.25

Pipe diameter: 16mm-32mm
Pipe thickness: 2mm-3mm
Aluminum layer thickness: 0.2 mm
Inner diameter: 12mm-26mm
Maximum operating temperature for water (up to 10 bar) 95°C, in case of malfunction 110°C
Minimum bending radius: 80mm (by hand) 64mm (with bending spring)
Heating conduction coefficient: 0.4 (watts/m*K)
Coefficient of linear expansion: 0.025 (mm/m*K)
Absolutely gas-tight against oxygen
Bendable by hand
Corrosion-resistant
Compatible with many common screw fittings and press fittings
DVGW-certified (DW 8231BU0089)

Original Wavin PE-Xc/AL/PE composite pipe 16x2.0, 20x2.25, 25x2.5

The PE-Xc/AL/PE-RT composite pipe is a pipe with a butt-welded aluminum layer, which is both dimensionally stable and bend-resistant.

Three Wavin fitting types, designed for the white Wavin multilayer composite pipe:

Wavin Tigris-K1, Wavin Tigris-M1 and Wavin smart FIX fittings are optimal
designed for the white Wavin multilayer composite pipe.
Plug or press in, it fits.
All three fitting types meet the requirements for drinking water installations.
as well as radiator connection systems.
It's for everyone Drinking water quality suitable and from a food physiology perspective
harmless (KTW recommendation).

The Wavin multilayer composite pipe for plumbing and heating consists of a
internal cross-linked polyethylene pipe (PE-X),
an outer pipe made of PE-HD and an intermediate butt joint
welded aluminum tube.
The three pipes are homogeneously bonded together using an adhesion promoter.
This results in a pipe structure consisting of a total of five layers.
