Kaminofen Pular Compact 5 KW from Olsberg in Schwarz

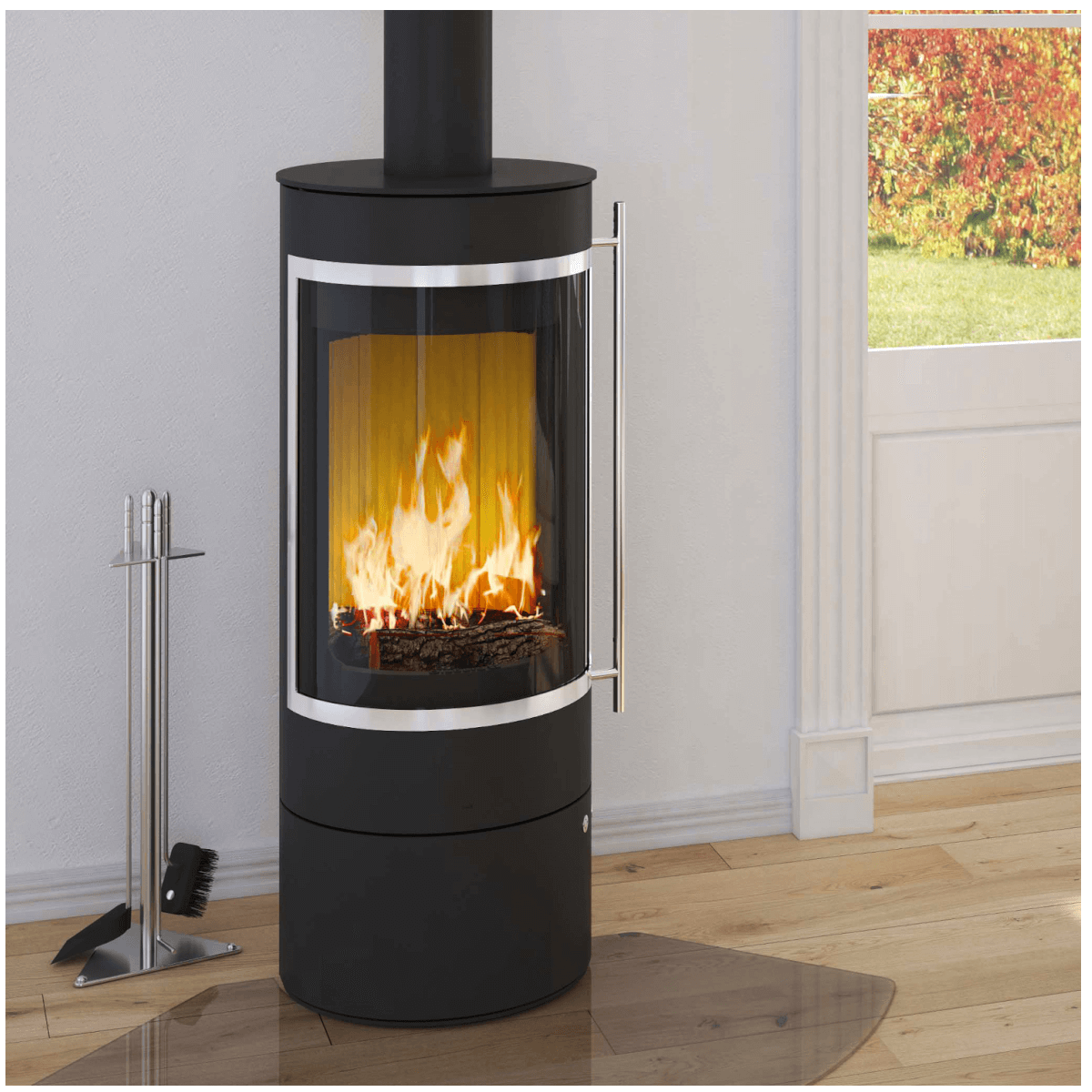

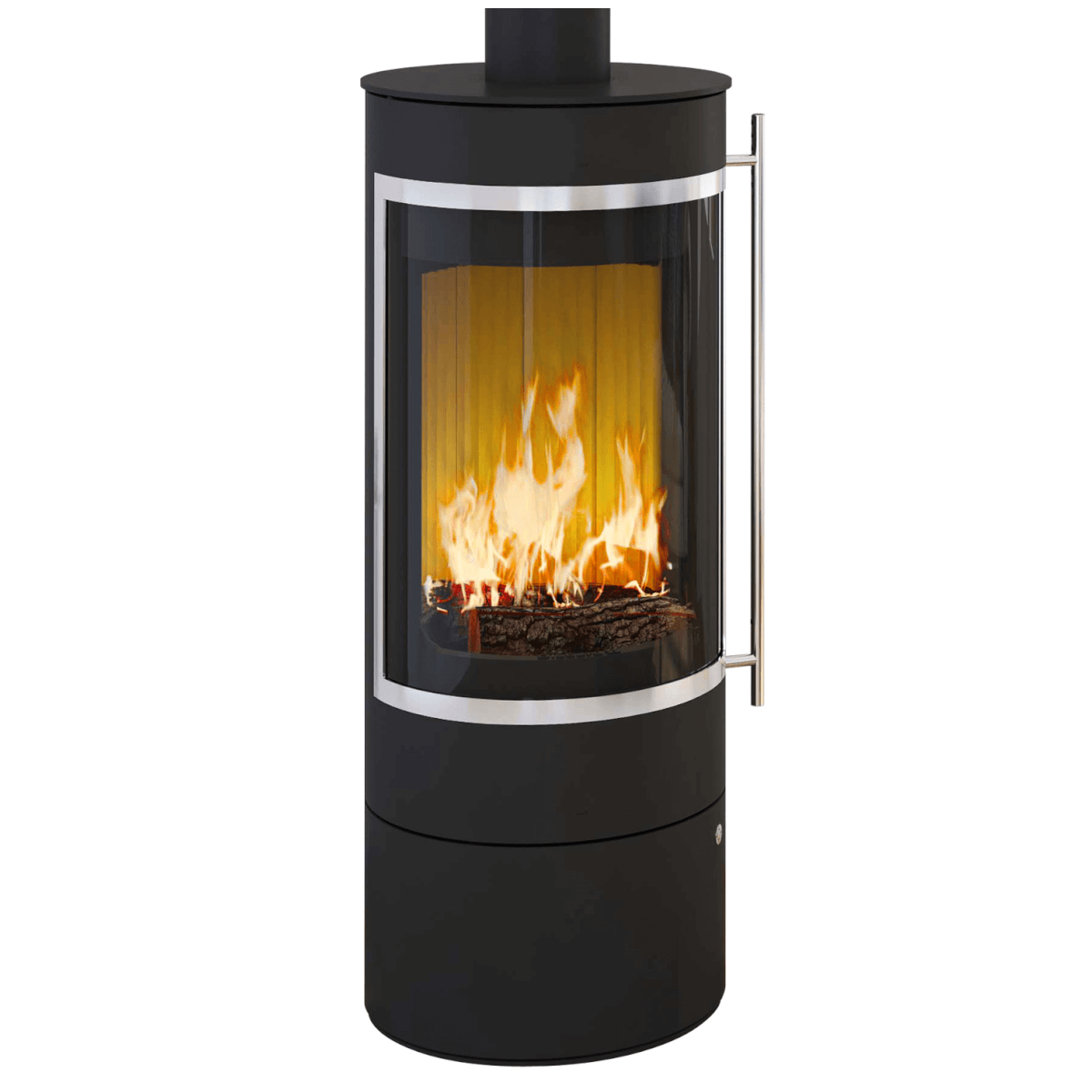

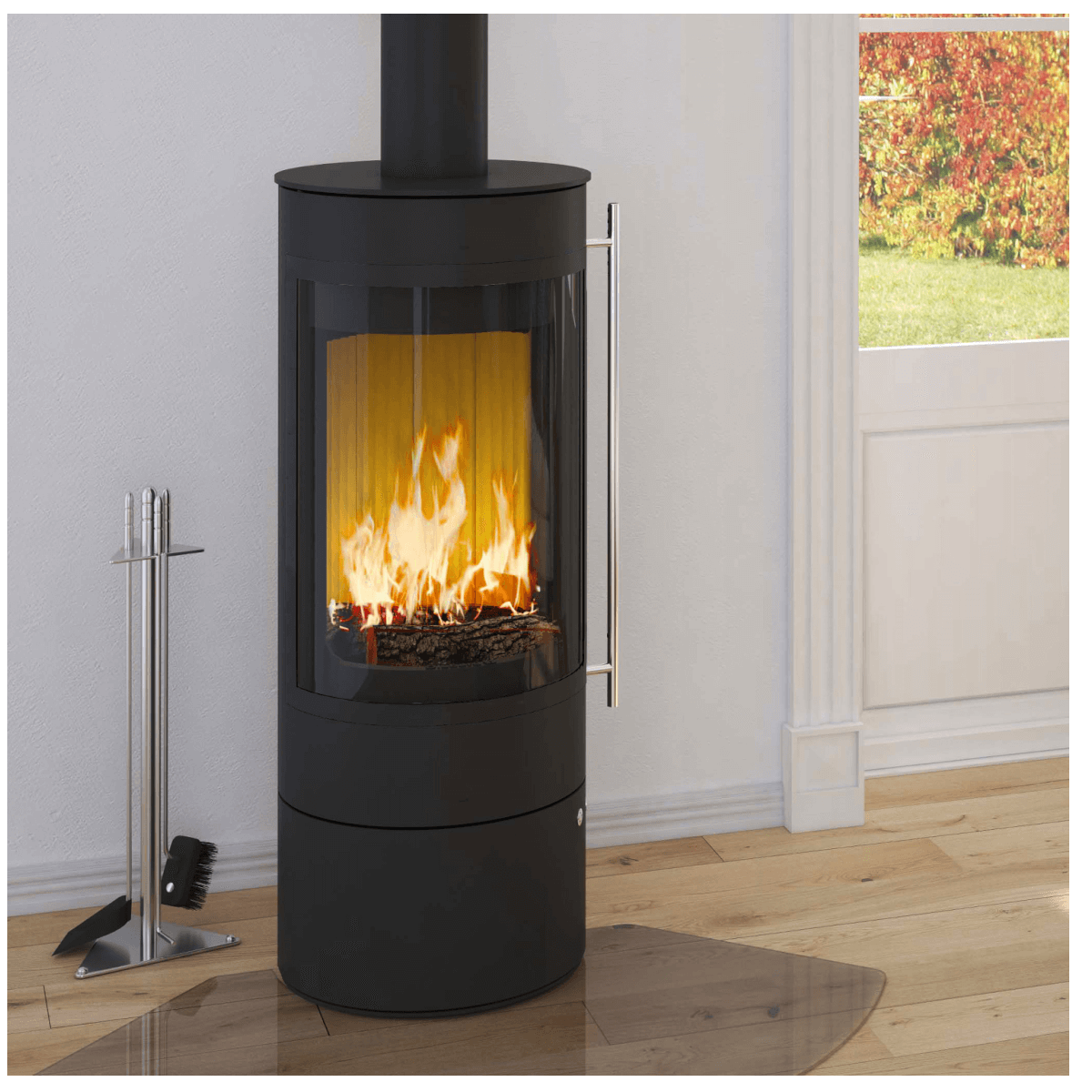

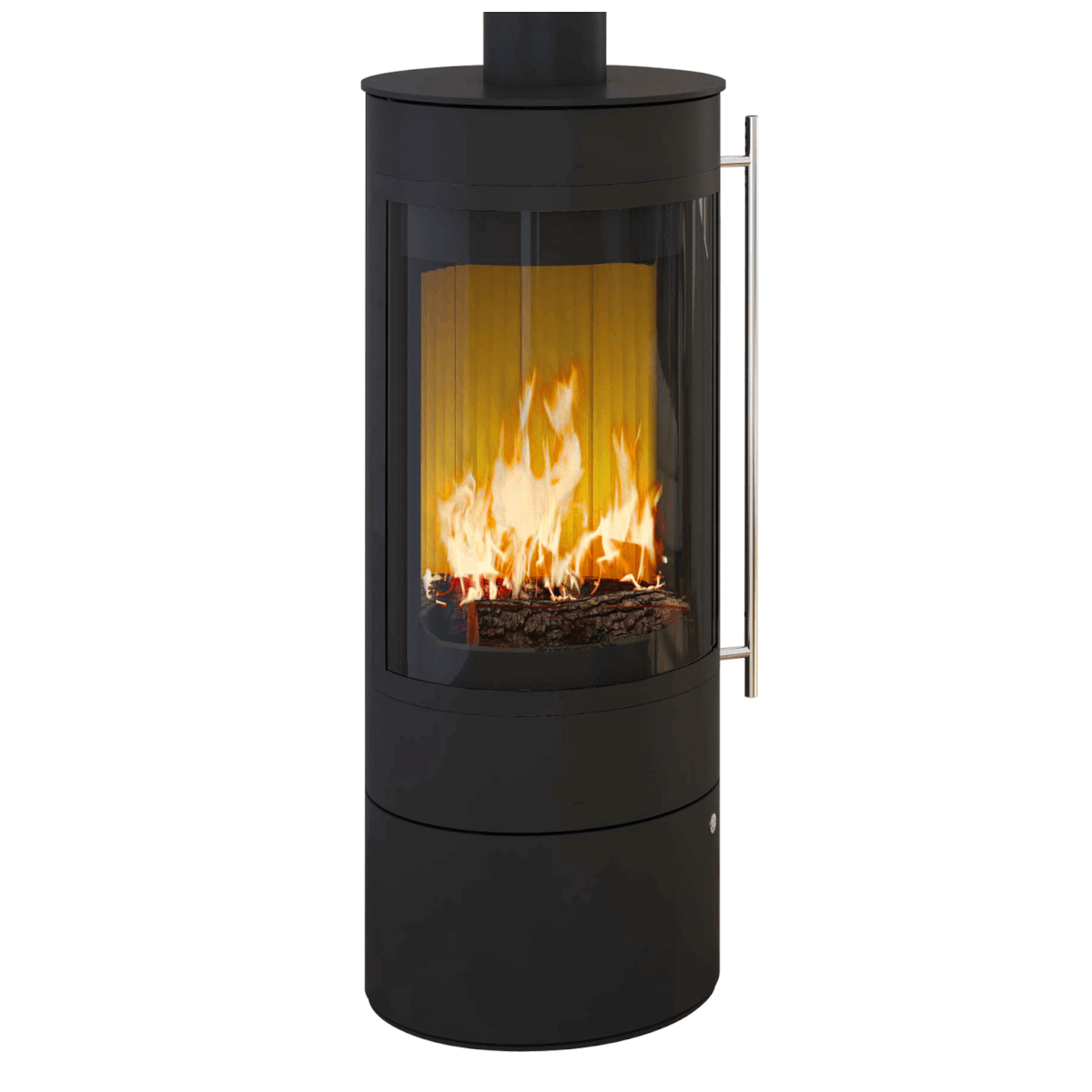

5 kW Pular Compact fireplace stove from Olsberg

5 kW fireplace stove independent of room air

State-of-the-art technology and a tasteful appearance – that's what the 5 kW Pular Compact stove from Olsberg stands for. This modern and stylish stove with a large glass pane is equipped with Olsberg's innovative glass air purge system. The stove transforms the room in which it is located into a feel-good oasis. The patented combustion technology enables high efficiency.

The stove can be used independently of room air (DIBt approval pending). The door can be locked open, leaving your hands free for cleaning the stove. The firebox is lined with extremely stable and durable fireclay. The appliance boasts particularly good combustion characteristics – made possible by modern combustion technology.

Other special features at a glance:

• Compact locking system
  The patented Compact door locking system ensures that the door remains permanently sealed and closes quietly and gently. It also facilitates cleaning, as the door can be locked in the open position. This proven system is one of the most important requirements for the stove to obtain approval for room-sealed operation.
• Ventilated door handle
  Thanks to the internal ventilation, the door handle remains largely cool and can therefore be touched without the usual gloves.
• Optional: OEC – Olsberg Efficiency Controller
  This stove is ready for the Olsberg combustion control system "OEC." This is available as an optional accessory in our kamdi24 shop.

Approvals and fulfilled requirements:

• DIN EN 13240
• BImSchV Stage 2
• 15a B-VG for Austria
• DIBt approval applied for
• DIN Plus

Technical data 5 kW stove Pular Compact from Olsberg

• Nominal heat output (in kW): 5
• Efficiency (in %): 83
• CO emission (in mg/cm³): 1125
• Exhaust gas temperature nozzle max. (in °C): 268
• Exhaust gas mass flow max. (in g/s): 4.4
• Required delivery pressure at nominal heat output (in Pa): 12

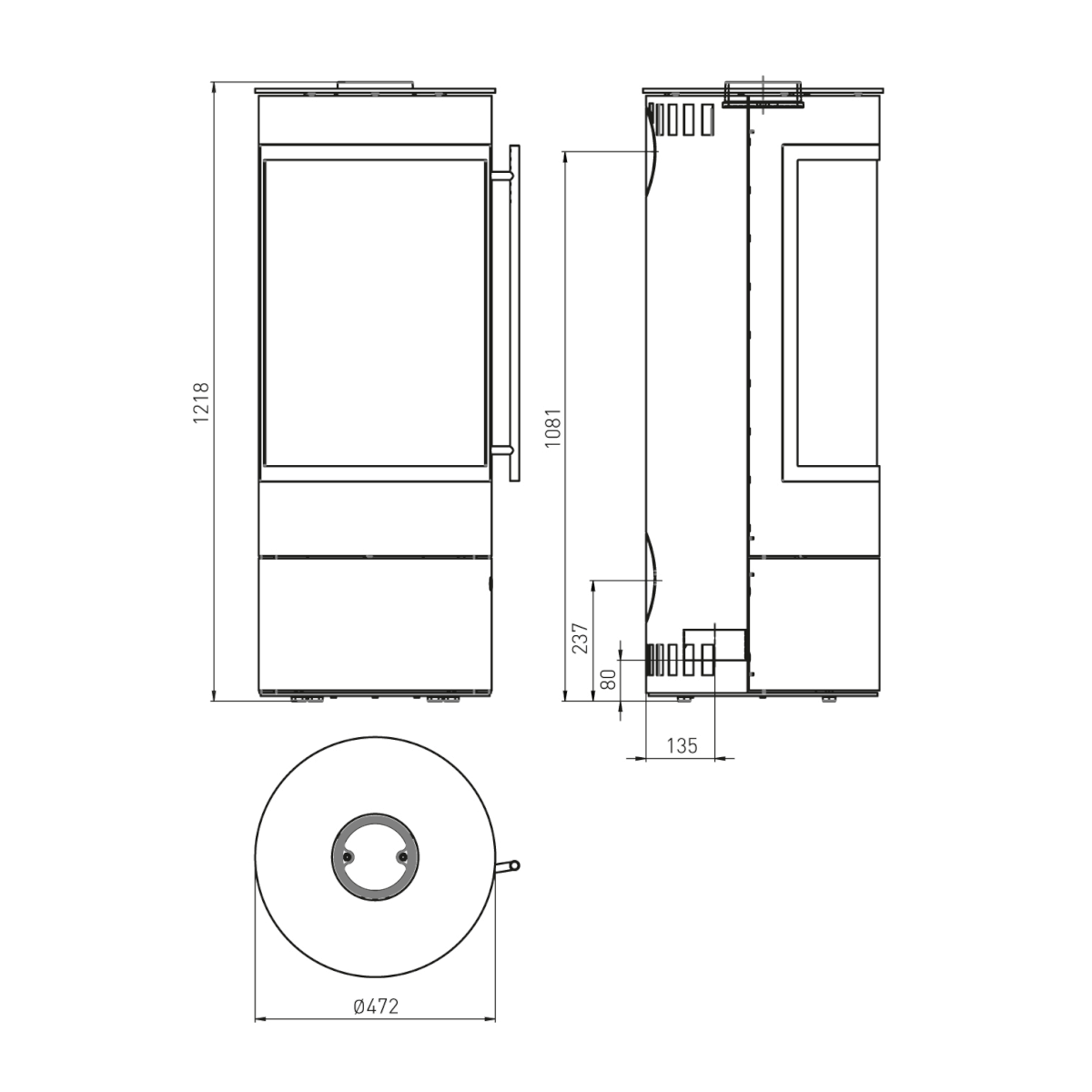

• Height (in mm): 1218
• Width (in mm): 472
• Depth (in mm): 472
• Ø smoke pipe (in mm): 150
• Weight (in kg): 142
• Maximum fuel length (in cm): 33

Download

• Product data sheet
• Operating instructions
