Instantaneous water heater 18-27 kW

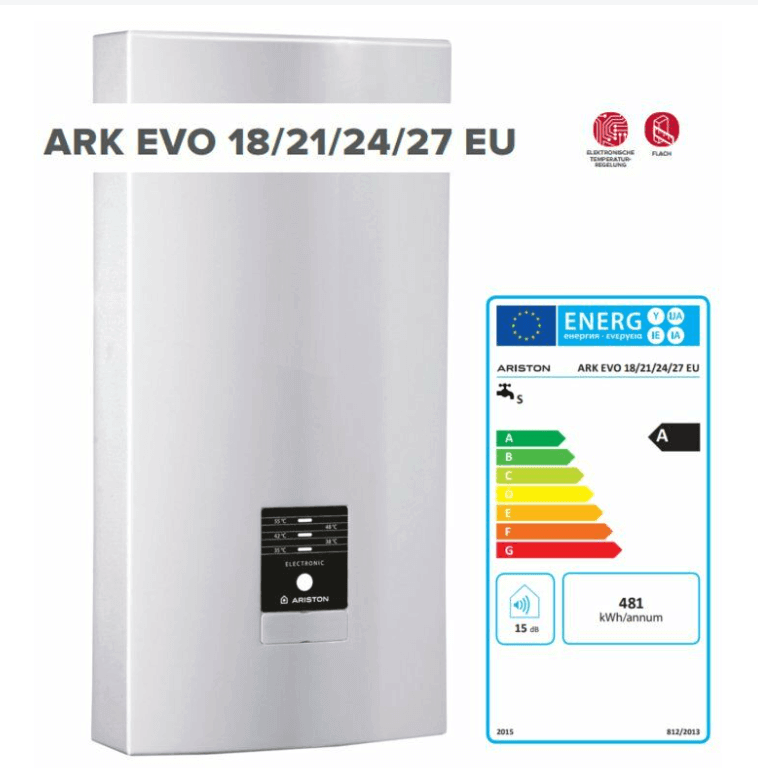

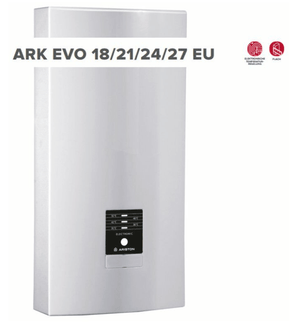

ARISTON ARK EVO instantaneous water heater temperature adjustable 18-27 kW

Features: Instantaneous water heater 18-27 kW

• Electronically controlled instantaneous water heater for supplying one or more outlets
• universally applicable
• One-button control panel for quick and easy temperature selection in five levels: 35°C, 38°C, 42°C, 48°C and 55°C
• Water and energy savings (low flow rate of 2.5 l/min)
• Easy installation thanks to free installation space and variable connection options
• suitable for all DVGW-tested plastic pipe systems
• Electrical connection possible at the top and bottom
• Bare wire heating system in a plastic block also suitable for hard water
• durable stainless steel heating elements
• Overtemperature protection and safety pressure limiter
• environmentally friendly made from labelled and recyclable materials
• Solar capable

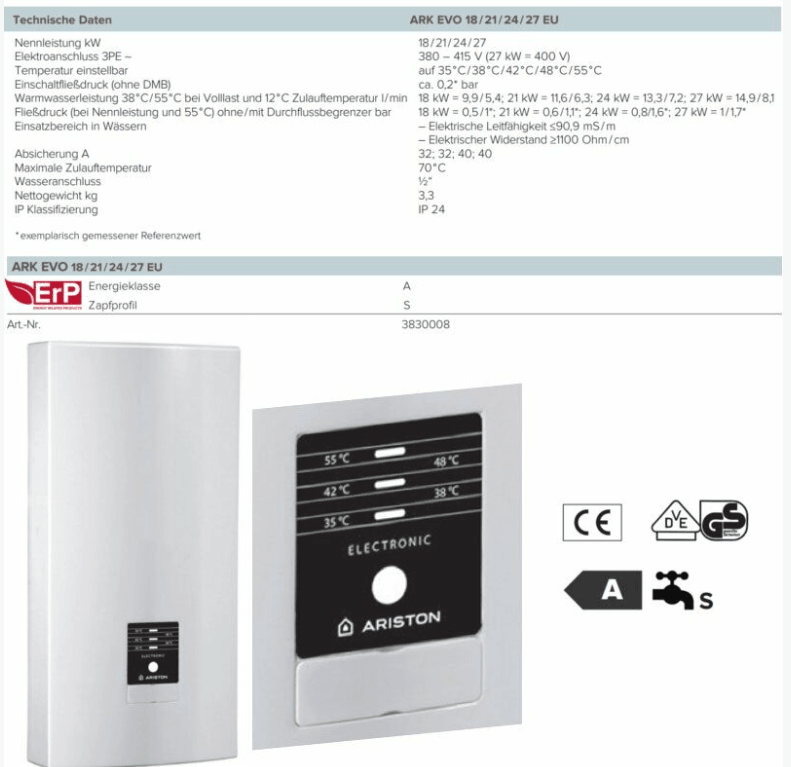

Technical data:

1. Material of the pressure vessel: plastic
2. Rated power: 27 kW
3. Rated voltage 1: 380 V
4. Rated voltage 2: 415 V
5. Suitable for KNX: No
6. Operation: manual
7. Temperature display: digital
8. With display: Yes
9. Mounting type: Above counter
10. Power control: electronic
11. Connected load: 18 kW - 27 kW
12. Heating system: bare wire
13. Safety shutdown: electronic
14. Protection class (IP): IP24
15. Cold drinking water connection: external thread
16. Nominal inner diameter cold drinking water: 1/2 inch (15)
17. Pipe outer diameter cold drinking water: 13 mm
18. Hot water connection: external thread
19. Nominal inner diameter of hot water connection: 1/2 inch (15)
20. Pipe outer diameter for warm drinking water: 13 mm
21. Suitable for plastic pipes: Yes
22. Suitable for preheated water: Yes
23. Type of control: electronic
24. With fitting: No
25. Energy efficiency class: A

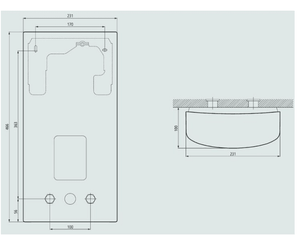

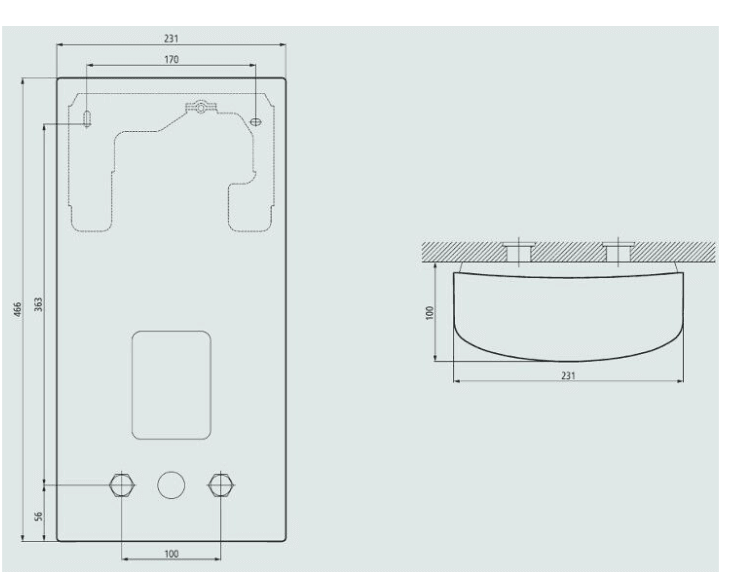

26. Height: 466 mm

Download

• Operating instructions
• Width: 231 mm
• Depth: 100 mm
• Weight: 3.3 kg
