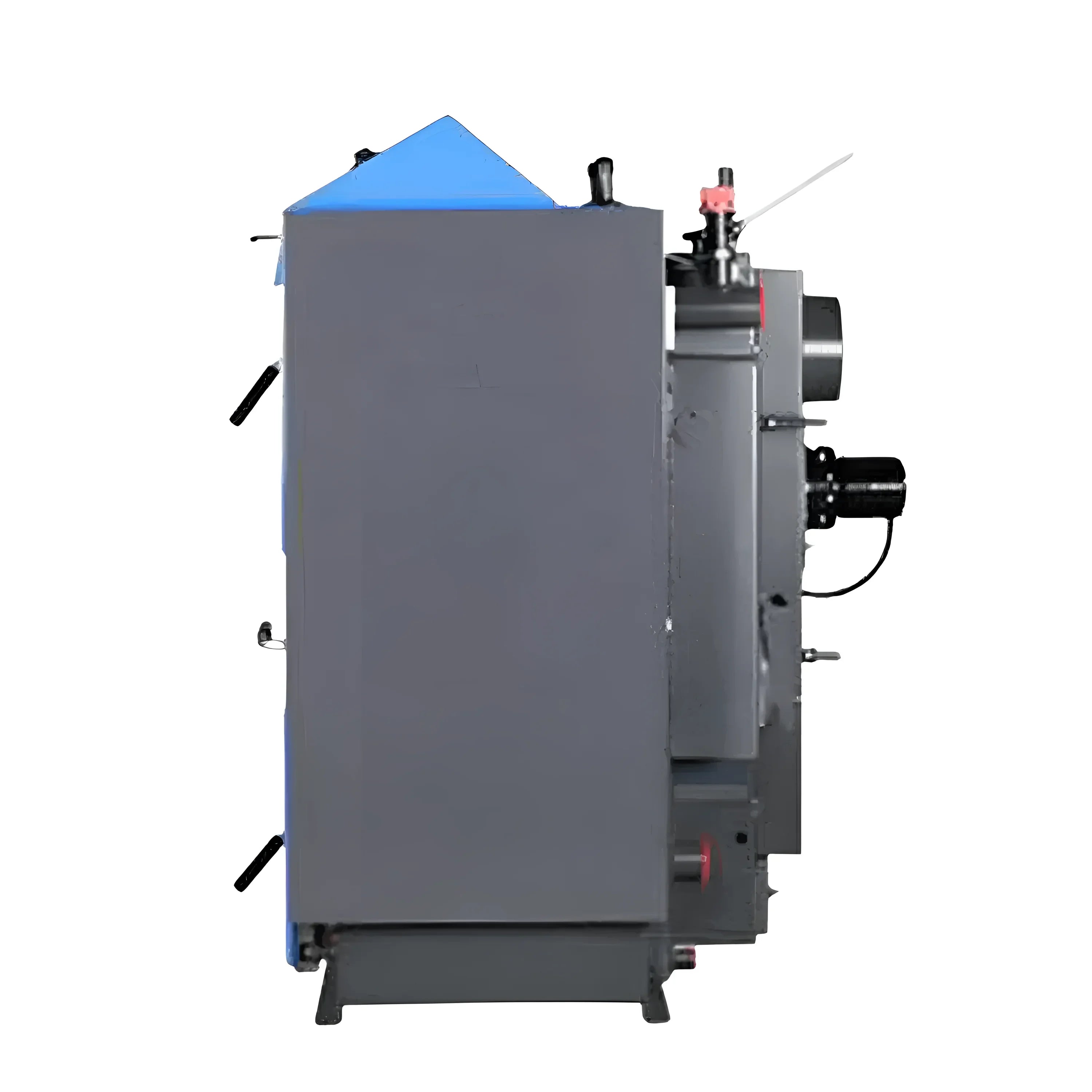

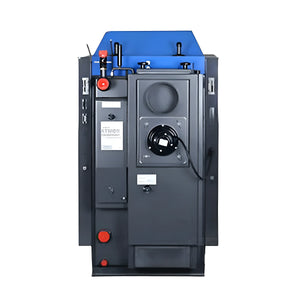

Coal boiler Atmos KC16S

The Atmos KC16S coal-fired boiler is a modern coal gasifier that also optionally uses logs as a substitute fuel. This makes it flexible and efficient in its heat supply.

The Atmos KC16S is a versatile gasification boiler designed for burning both coal and logs. This model is primarily suitable for heating single-family homes, weekend and country cottages, workshops, and similar buildings. The robust boiler body is made of high-quality sheet steel with a material thickness of 6 to 8 mm, which enables significantly better heat transfer compared to cast iron boilers and ensures a durable construction.

Optimal replacement boiler for old cast iron models such as GK21 or K30

The Atmos KC series is an ideal solution for efficiently and reliably replacing outdated cast iron boilers, such as the GK21, GK31, or K30 models. The Atmos KC16S coal-fired boiler not only burns traditional coal but can also efficiently use wood if desired, achieving a maximum efficiency of up to 86%. Furthermore, it meets all the requirements of the Federal Immission Control Ordinance (BImSchV), thus granting its unrestricted approval in Germany.

Advantages: Coal boiler Atmos KC16S

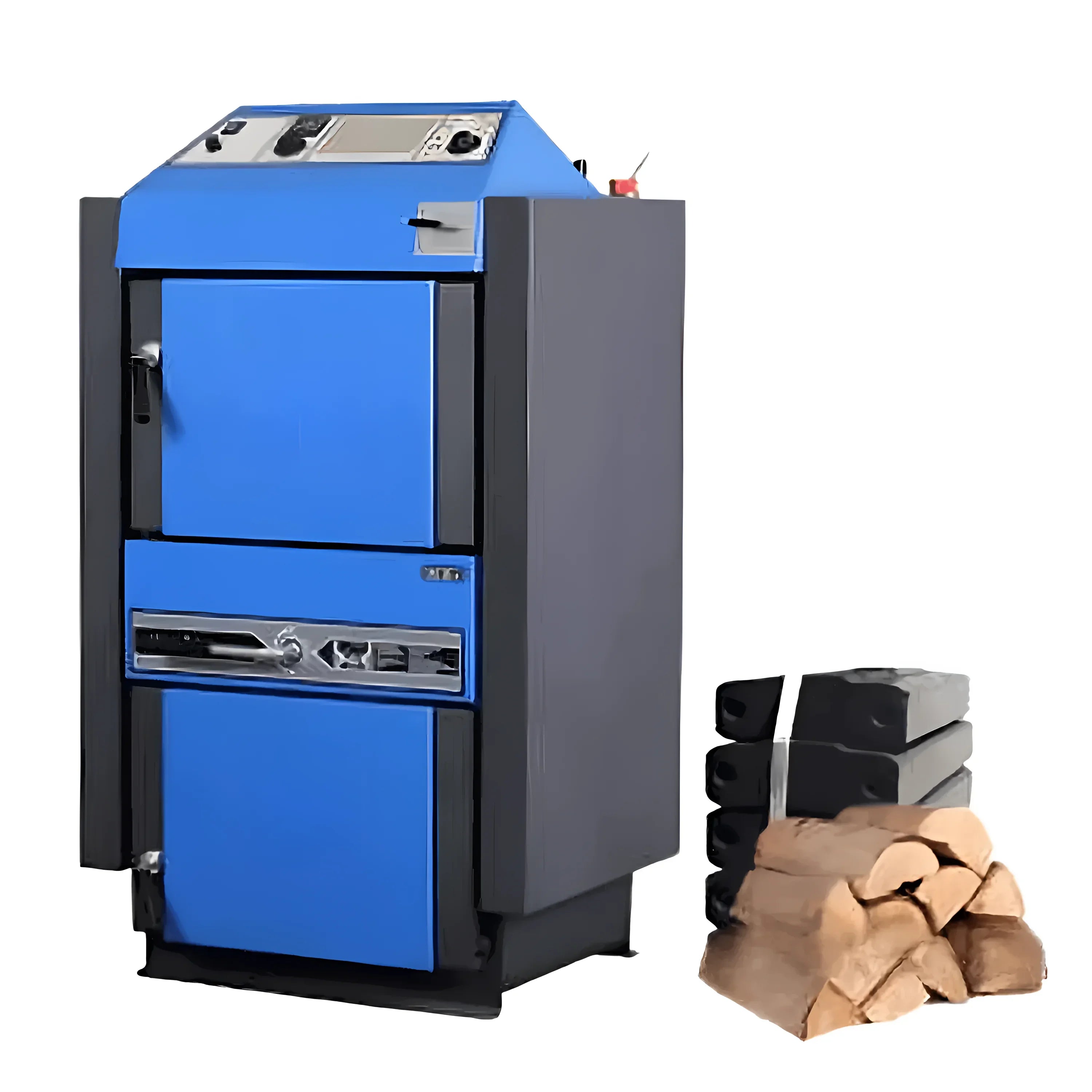

• Specially designed gasification boiler for various fuels such as lignite briquettes, hard coal and logs

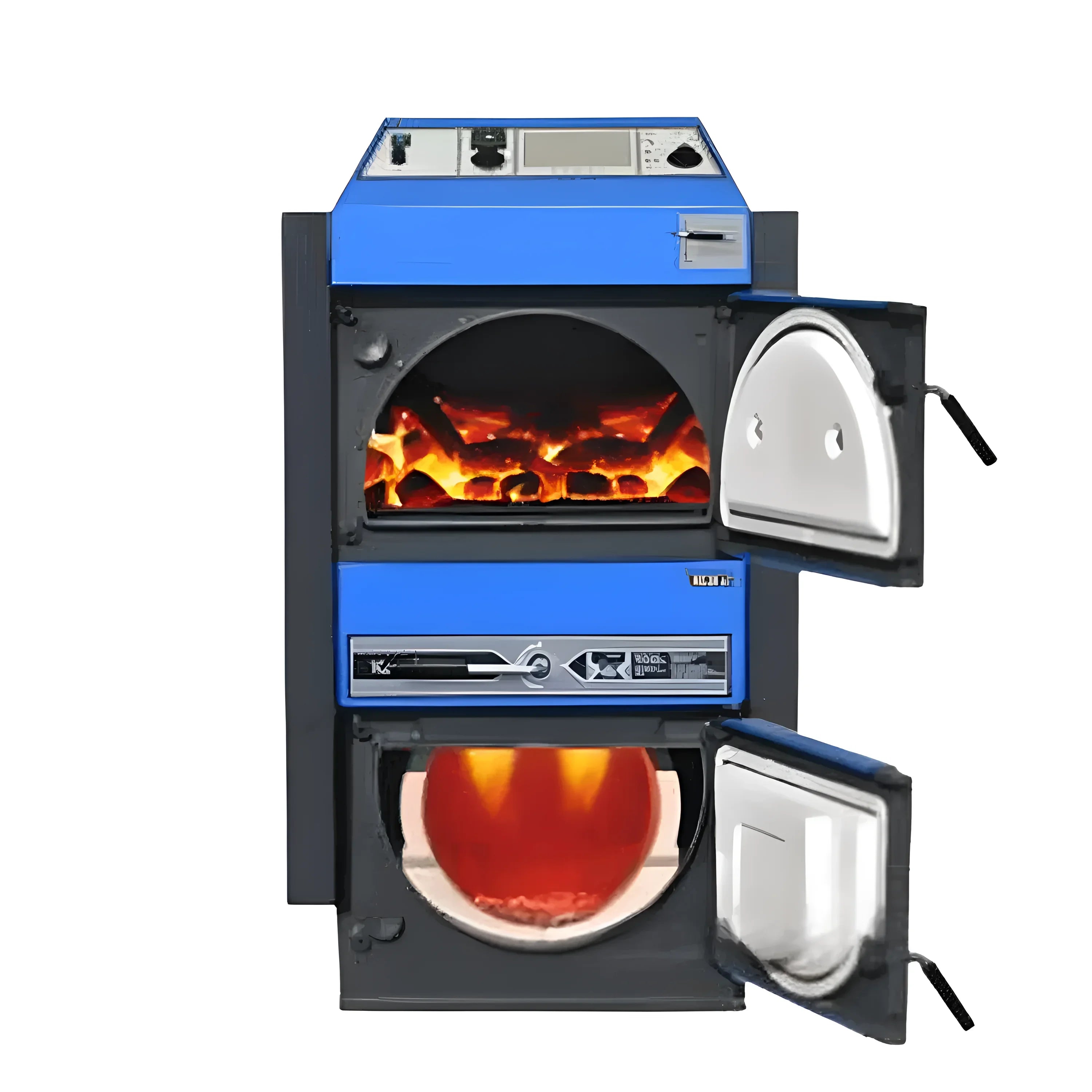

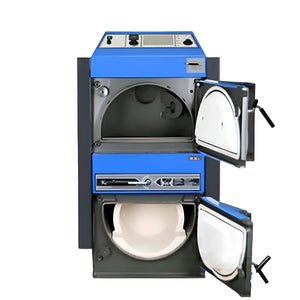

• Ceramic combustion chamber with rotating cast iron grate ensures efficient and clean gasification
• Preheated secondary air ensures optimal combustion and rapid heat output during the heating phase
• The innovative cast iron grate system sits in a ceramic bowl – specially designed for the effective gasification of coal fuels
• Easy cleaning of the combustion chamber and the exhaust duct through the tube heat exchanger, which reduces maintenance effort
• High efficiency of up to 86%, which guarantees economical fuel consumption
• Modern, appealing design with attractive value for money

Technical data

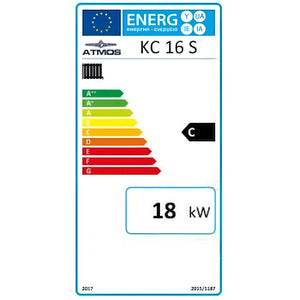

• Energy efficiency class C
• Boiler class 3
• Nominal heat output: 18 kW
• Efficiency: 88.5%
• Tensile force: 16 Pa
• CO content: 265 mg/m³
• Dust emission: 17 mg/m³
• Recommended fuels: coal & firewood
• Maximum firewood length: 230 mm
• Exhaust gas temperature: 165 °C
• Exhaust gas mass flow: 0.01 kg/s
• Height: 1,185 mm
• Width: 675 mm
• Depth: 658 mm
• Flue pipe connection: 150/152 mm
• Weight: 275 kg

Scope of delivery:

• ATMOS KC - Gasification boiler
• Honeywell draught regulator for precise control of the combustion process
• Cleaning accessories for easier maintenance
• Ash container for easy disposal of residues
• Filling tap for easy filling of the system
• Assembly and operating instructions support installation and operation

Download:

• Prospectus
• Operating instructions
• Exploded view
• Instructions for changing rust
• Limit values
