Atmos GS15 wood gasifier – efficient solid fuel boiler 🔥

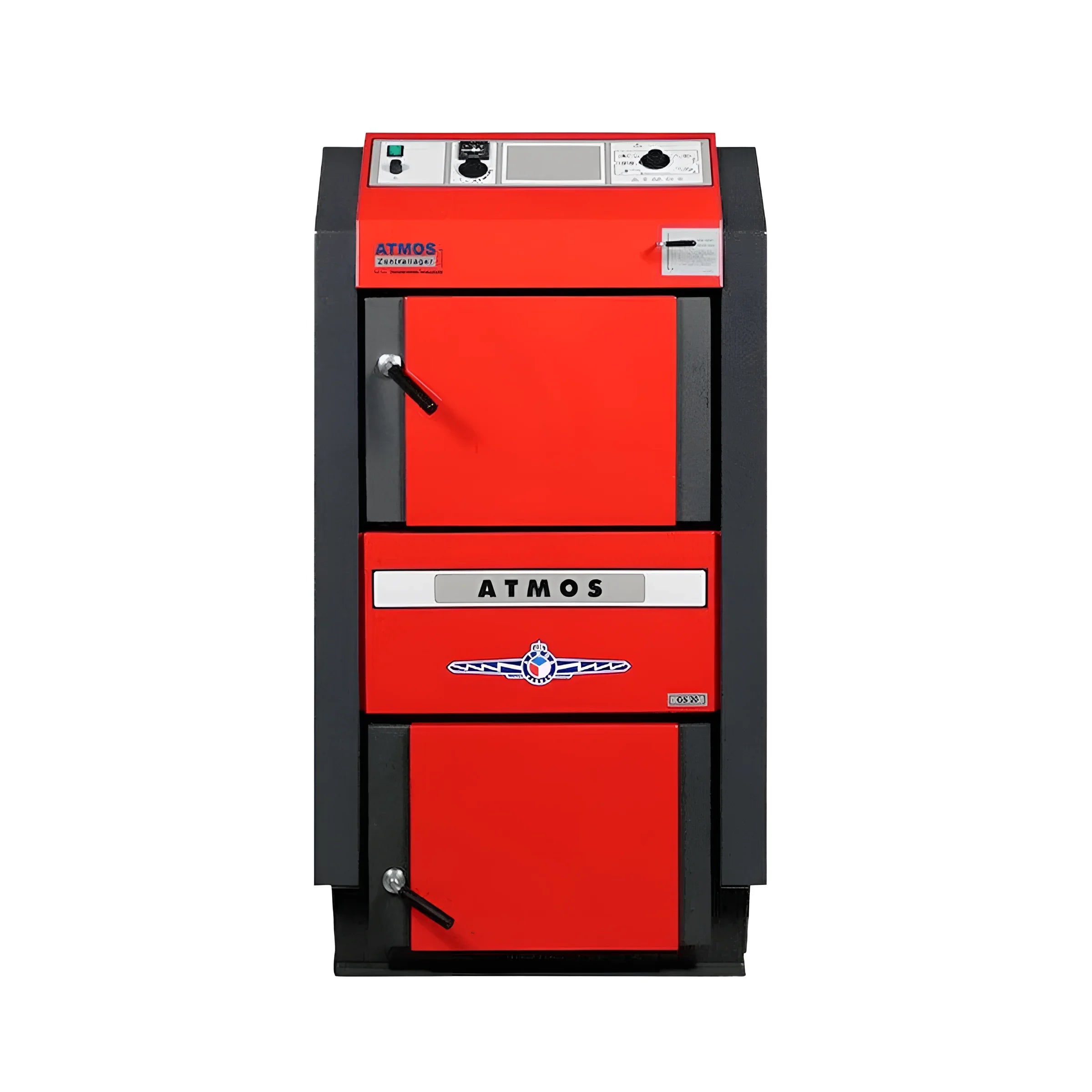

Wood boiler Atmos - GS15

Atmos wood boiler - GS wood gasifier solid fuel are characterized by their efficient combustion, achieving an efficiency of up to 87.1%. These boilers are specifically designed for the use of logs as fuel and rely on proven wood gasification technology.

The building structure basically corresponds to the ATMOS GSE seriesIn comparison, however, the GS series does not have an additional exhaust gas heat exchanger. Furthermore, the design of the ceramic components in both the fuel chamber and the combustion chamber differs. Due to these differences, the GS wood gasification boiler achieves a slightly lower efficiency than the GSE model. Nevertheless, due to its reliability and attractive price-performance ratio, it is one of the most frequently selected wood gasification boilers from the ATMOS brand.

The ATMOS GS wood gasifier is particularly popular with users and impresses with its robust construction, ease of maintenance and high quality standards.

Advantages: Boiler Wood Atmos - GS Wood Gasifier Solid Fuel

• Made from high-quality 6 mm and 8 mm thick boiler steel for a long service life and high operational reliability
• Large filling chamber allows the insertion of large logs and reduces the refilling intervals
• Door hinge factory-mounted on the left; however, the door hinge can be flexibly adjusted later
• Durable and replaceable protective lining made of fireclay ceramic (up to 4 cm thick) in the filling and combustion chamber for improved heat protection and stability
• Integrated safety heat exchanger 1/2 for thermal protection and safe dissipation of excess heat
• Innovative parallel and V-shaped filling chamber geometry ensures optimal combustion behavior and minimizes the risk of hollow burning
• Complete thermal insulation made of effective mineral wool insulation reduces heat loss and increases efficiency
• Automatic shut-off automatically switches off the boiler after the wood has completely burned out, which increases safety and comfort
• Boiler control panel already prepared for the connection of a weather-compensated control, several heating circuits and a solar circuit
• Complies with EN303-5 and has CE-0036 certification

Technical data

• Energy efficiency class A+
• Boiler class 5
• Nominal heat output: 15 kW ideal for single and two-family houses
• Efficiency: 91.2% ensures efficient fuel utilization
• Tension requirement: 16 Pa guarantees safe operation
• Prescribed fuel: logs
• Maximum firewood length: 250 mm
• Exhaust gas temperature: 134 °C
• Exhaust gas mass flow: 0.01 kg/s
• Height: 1280 mm
• Width: 678 mm
• Depth: 670 mm
• Flue pipe connection: 150/152 mm – suitable for common chimney systems
• Weight: 302.0 kg – robust device for continuous use

Scope of delivery

• Wood gasifier Atmos GS 15 kW
• Assembly & Operating instructions with instructions for commissioning and maintenance
