Chimney kit 3-walled - ceramic chimney NIKO UNI - easy installation 🏗️

Chimney kit 3-layer solid

Ceramic chimney NIKO Uni: is a chimney for solid fuels, gas and oil

The massive Ceramic chimney, developed by NIKO, a renowned manufacturer in chimney construction, represents state-of-the-art technology and the highest quality standards. The NIKO UNI ceramic chimney is universally applicable and suitable for all common fuels, including wood, coal, gas, and oil. Thus, it offers the necessary flexibility for a wide variety of heating systems in both residential and commercial applications.

Thanks to first-class workmanship and the use of high-quality materials, the NIKO UNI is extremely temperature- and corrosion-resistant. Even acidic condensate from the exhaust gas does not impair its functionality. The system's high safety factor is underscored by its soot fire resistance and its F90 (90-minute) fire resistance rating, ensuring maximum safety even in the event of a fire.

Special construction elements ensure that the easy assembly It can be easily installed both indoors and outdoors. The comparatively low weight of the precision elements allows for easy handling and quick and efficient installation. The system includes robust casing stones, durable ceramic pipes, and high-quality thermal insulation panels. These components ensure optimal operation of modern fireplaces with low exhaust temperatures and high efficiency.

The factory-prefabricated components make the Chimney kit Particularly user-friendly. This allows the chimney to be erected independently in just a few steps. The tested and certified components ensure maximum structural stability and functionality with maximum flexibility, for example, through various assembly and connection options.

The NIKO UNI chimney is available as a single-, double-, or triple-flue version with integrated ventilation shaft, thus adapting to the requirements of a wide variety of buildings.

Multi-pass variants as well as additional connections and inspection openings are available on Inquiry available.

Special features:

• Exhaust system with registration number Z-7.1-3489
• Certified according to DIN EN 13063-1
• T600 N1 D 3 G50 LA90
• Easy installation thanks to precisely fitting system elements
• High resistance to temperature stress and corrosion
• Fire resistance class F90 (L90) for maximum fire safety
• With EU certification and CE marking
• Also available with 1 or 2 multifunctional shafts (air shaft)
• Versatile for coal, wood, gas, oil and briquettes
• External dimensions of the shaft: 360 x 360 mm

Features:

• Easy assembly – all components are perfectly matched
• Light construction weight facilitates transport and assembly
• Extremely resistant to chimney fire, acidic condensate and moisture
• Flexible usage options – suitable for indoor and outdoor use, flue pipe connection at both 90° and 45°, with or without ventilation, with concrete slab and insulation
• Can be individually combined as a single-compartment, double-compartment or single-compartment version with additional extractor
• Inner diameter selectable between 140 mm and 300 mm
• Fire resistance up to 90 minutes guarantees long-lasting protection
• 30-year manufacturer's warranty
• With DIBt – building approval

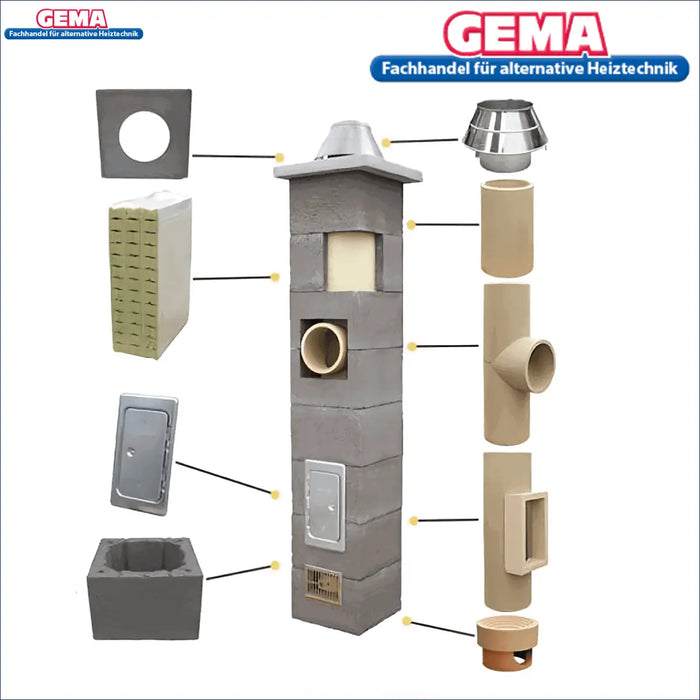

Scope of delivery

• Mantle stones 36x36cm – according to desired length
• Clay pipes – according to selected length
• Flue connection (66 cm height) – 1 piece
• Cleaning element (66 cm height) – 1 piece
• Acid putty (2 kg) – 1 piece
• Cleaning door – 1 piece
• Muzzle cone – 1 piece
• Concrete cover plate 46x46cm – 1 piece
• Condensate drain – 1 piece
• Insulation – adapted to the respective length
• Detailed assembly instructions
