Hot water memory Sunex Fish S8 X

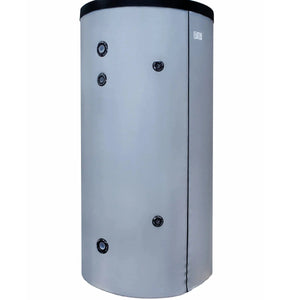

SUNEX Fish S8 X – Vertical hot water tank for the household

Product description

The SUNEX Fish S8 X is a vertical hot water tank for the reliable provision of domestic hot water in private homes. Its robust S235JR steel construction and automatic welding processes provide a durable solution for households with varying heat requirements.

The interior surface of the storage tank is coated with a high-quality enamel and additionally protected by two magnesium anodes. This combination effectively reduces corrosion and ensures, in accordance with DIN 4753, that the domestic water only comes into contact with hygienically sound surfaces.

The thermal insulation consists of 50 mm thick, CFC-free polyurethane rigid foam, which minimizes heat loss and reduces standby losses. A replaceable PVC outer jacket protects the insulation and facilitates maintenance and replacement.

Material: S235JR; maximum operating temperature: 95 °C; maximum operating pressure: 10 bar; maximum test pressure: 15 bar. Inspection openings are available in diameters of 122 mm and 179 mm.

Standard equipment includes an inspection port, a thermometer, a sleeve for an electric heating element, and two magnesium anodes. The gray exterior color gives the unit an unobtrusive appearance. Observe applicable standards during installation and maintenance, and have all connection work performed by qualified personnel.

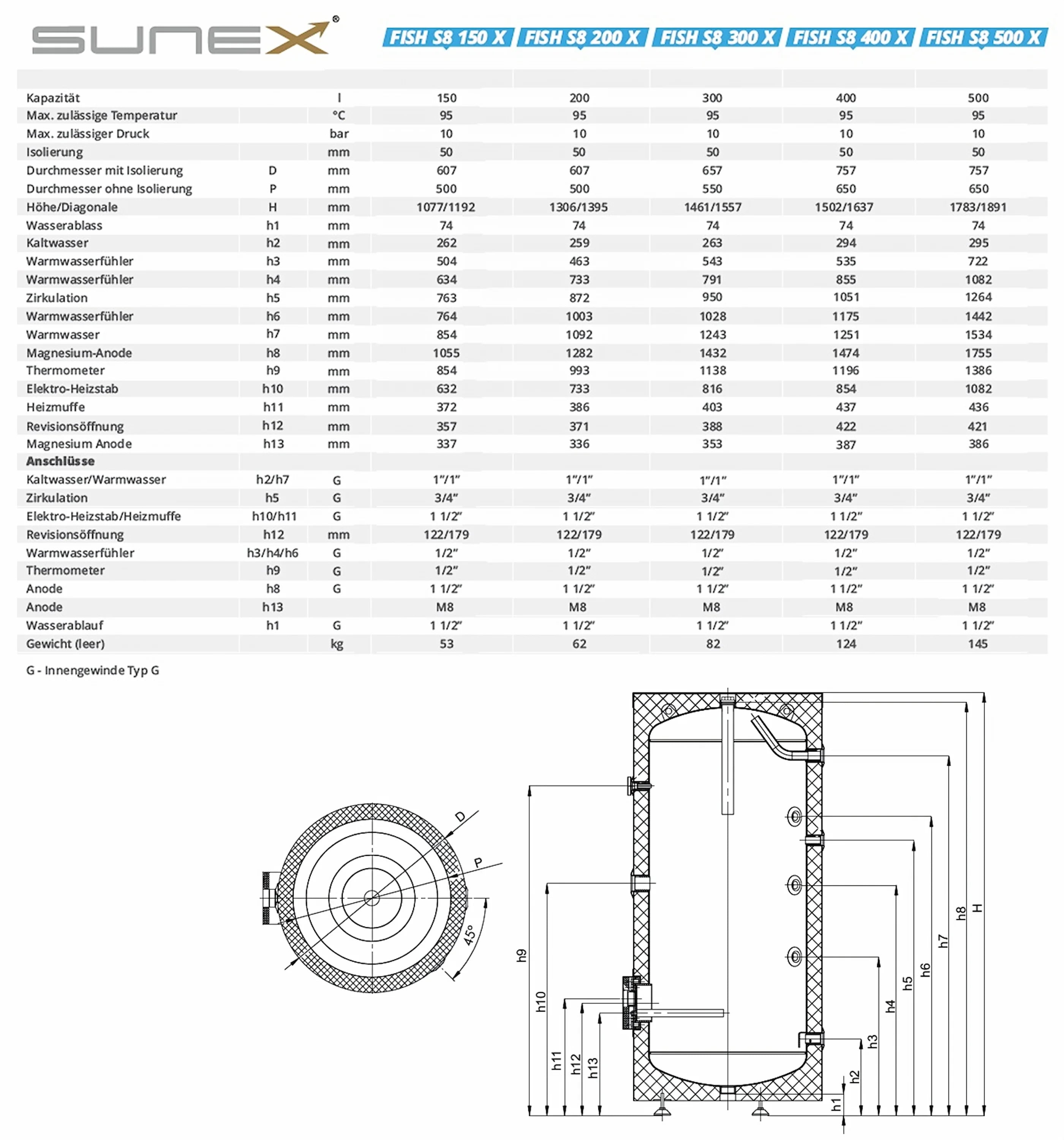

Technical data

• Material: S235JR
• Welding: automatic welding
• Protection: high-quality Enamel layer and 2 protective anodes
• Maximum operating pressure of the storage tank: 10 bar
• Maximum test pressure: 15 bar
• Maximum operating temperature: 95ºC
• Insulation: 50 mm thick polyurethane foam
• Outer jacket: grey color
• Inspection opening: ø 122 mm/ø 179 mm
